Installation And Operation Instructions

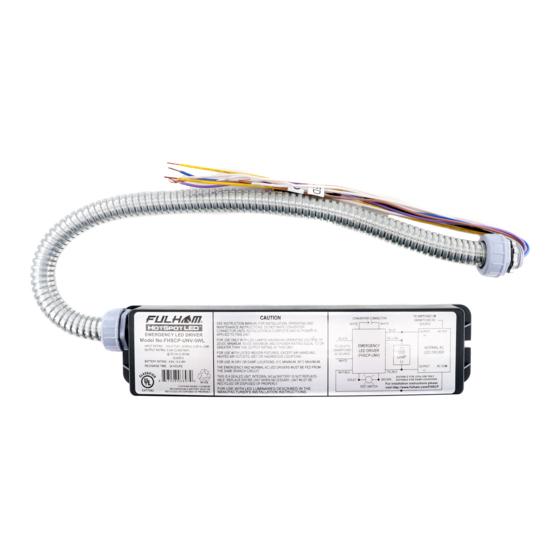

For FHSCP-UNV Series Emergency LED Drivers
Models:
FHSCP-UNV-5WL, FHSCP-UNV-7.8WL, FHSCP-UNV-10.7WL,
FHSCP-UNV-13.7WL,
IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions should always be followed,
including the following:
READ AND FOLLOW ALL SAFETY INSTRUCTIONS:
1)
The FHSCP-UNV is designed for factory installation and for field installation only if
determined to meet the as installed egress requirements as outlined on page 5 of these
instructions.
2)
Installation should be performed by qualified personnel only.
3)
Install in accordance with the National Electric Code and applicable local codes.
4)
The FHSCP-UNV requires an unswitched AC power source of 100 to 277 volts, 50/60 HZ.
5)
The FHSCP-UNV is suitable for use in dry and damp location where ambient temperature
is 0 to 50C.
6)
The FHSCP-UNV should be mounted in locations and at heights where it will not readily be
subjected to tampering by unauthorized personnel.
7)
The FHSCP-UNV is suitable for use only with LED lamps having an operating voltage of 10Vdc
minimum, 55Vdc maximum and will provide 90 minutes of emergency operation.
8)
To reduce the risk of electrical shock, do not connect FHSCP-UNV converter connector
until installation is complete and AC power is applied to the luminaire.
9)
The FHSCP-UNV has more than one power source. To reduce the risk of electrical shock,
remove the normal AC power source(s) to the luminaire and disconnect the FHSCP-UNV
converter connector before servicing.
10)
The use of accessory equipment not recommended by the manufacturer may cause an
unsafe condition and will void warranty.
11)
Do not use this equipment for other than intended use.
12)
Do not mount near gas or electric heaters.
13)
Servicing of this equipment should be performed by qualified personnel only
14)
The FHSCP-UNV is a sealed unit. Components are not replaceable. Replace entire unit
when necessary.
15)
In order to maintain proper operation and warranty coverage, the battery must be recharged
once per year prior to installation.
16)
Do not connect battery until fixture is installed.
Fulham extends a limited warranty only to the original purchaser or to the first user for a period of 5 years from the date of manufacture when properly installed
and operated under normal conditions of use. For complete terms and conditions, please reference the Fulham Product Catalog (www.fulham.com).
Due to a program of continuous improvement, Fulham reserves the right to make modifications or variations in design or construction to the
equipment described. © Fulham Company Limited, All Rights Reserved.
FHSCP-UNV-17WL
NiCd
Page 1 of 8
2020 REV D2
