BioEntry™ Installation Guide

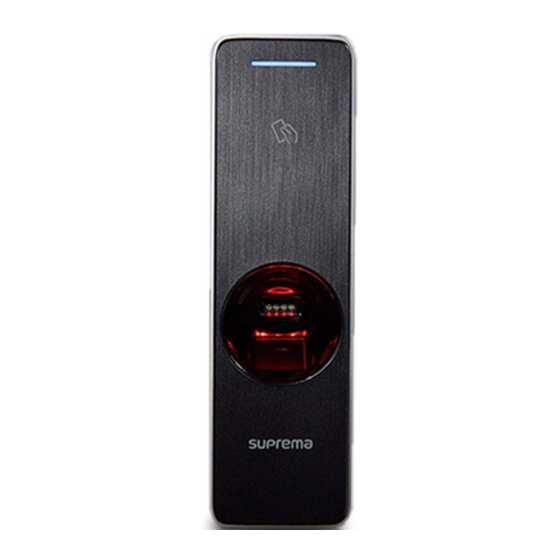

BioEntry™ Smart / Pass
Ver. 0.96c
Suprema Inc and BioEntry™ are registered trademarks of Suprema Inc. All
rights reserved. No part of this work covered by the copyright hereon may be
reproduced or copied in any form or by any means - graphics, electronic, or
mechanical, including photocopying, recording, taping, or information and
retrieval systems - without written permission of Suprema Inc. Any software
furnished under a license may be used or copied only in accordance with
the terms of such license.
Suprema Inc reserves the right to modify or revise all or part of this
document without notice and shall not be responsible for any loss, cost or
damage, including consequential damage, caused by reliance on these
materials.
Copyright © 2005 by Suprema Inc.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for suprema BioEntry Series
Summary of Contents for suprema BioEntry Series
- Page 1 Suprema Inc reserves the right to modify or revise all or part of this document without notice and shall not be responsible for any loss, cost or damage, including consequential damage, caused by reliance on these materials.
- Page 2 Supplier; (iii) improperly installed or used in violation of instructions furnished by Suprema. Suprema shall be notified in writing of defects in the RMA report supplied by Suprema not later than thirty days after such defects have appeared and at the latest one year after the date of shipment of the Products.
- Page 3 Suprema products are not intended for use in medical, life saving, life sustaining applications, or other applications in which the failure of the Suprema product could create a situation where personal injury or death may occur.
- Page 4 Enrolled with more than hundreds of users, identification can be done in less than one second. Following the unique feature of Suprema’s famous UniFinger™ fingerprint identification modules, BioEntry™ also provides customers with multiple choices of fingerprint sensors including optical, capacitive and thermal sensors.
- Page 5 Fingerprint Verification Competition (FVC2004) with the lowest error rate in light category. Suprema’s fingerprint products have been sold to more than 50 different countries and are being used in various applications. For more information on Suprema’s technologies and products, Please visit Suprema’s website (http://www.supremainc.com)
-
Page 6: Table Of Contents
3.1.2. Installing BioEntry Smart ................. 17 3.2. Adding BioEntry to existing access control system........... 18 Specifications......................20 4.1. Fingerprint Authentication Specifications ..............20 4.1.1. Fingerprint Authentication Performance.............. 20 4.1.2. Fingerprint Sensor Specifications ..............20 Copyright © 2005 by Suprema Inc. http://www.supremainc.com... - Page 7 4.1.3. Data storage....................20 4.2. Mechanical Specifications..................20 4.2.1. Operating range .................... 20 Absolute Maximum Ratings ....... 오류! 책갈피가 정의되어 있지 않습니다. 4.2.2. Electrical DC characteristics ....... 오류! 책갈피가 정의되어 있지 않습니다. 4.2.3. Copyright © 2005 by Suprema Inc. http://www.supremainc.com...
- Page 8 Figure 6> Removing the screw ................15 Figure 7> Separating the case.................15 Figure 8> Installing back plate to the wall.............16 Figure 9> Reassembling the case..............16 Figure 10> BioEntry connection diagram .............17 Figure 11> Adding BioEntry Pass to existing system..........19 Copyright © 2005 by Suprema Inc. http://www.supremainc.com...
-
Page 9: Before You Start With Bioentry
This Installation Guide 1.2. Required items l A DC power supply rated at 12V @ 500mA l An access control panel with Wiegand input port 1.3. Optional items l A reader with Wiegand output port Copyright © 2005 by Suprema Inc. http://www.supremainc.com... -
Page 10: Installing Bioentry
Gray with red tracer RX+, RS-485 level Gray RX-, RS-485 level White with red tracer TX+, RS-485 level White TX-, RS-485 level Green with yellow tracer POW_GND Power GND Red with yellow tracer POW+ Power Input Copyright © 2005 by Suprema Inc. http://www.supremainc.com... -
Page 11: Power Connection
The BioEntry supports Wiegand compatible readers of various formats, including 26bit standard. Connect ‘WIN_D0’, ‘WIN_D1’ and ‘WIN_GND’ wires to ‘Data 0’, ‘Data 1’ signals and signal ground of the Wiegand reader, respectively. The input signals can tolerate voltages up to 12V dc. Copyright © 2005 by Suprema Inc. http://www.supremainc.com... -
Page 12: Connecting To A Wiegand Compatible Access Controller
‘TX+’ and ‘TX-’ signals of the computer to ‘RX+’ and ‘RX-’ of BioEntry signals, and vice versa(See Figure 2). At each end of the network, termination resistors of 120ohms should be connected between ‘+’ and ‘-’ signals for proper impedance matching. Copyright © 2005 by Suprema Inc. http://www.supremainc.com... -
Page 13: Connecting Via Rs-485 Interface For A Half Duplex Bioentry Network System
For a half duplex network, a pair of twisted wires in a shielded cable is needed. For every devices in the half duplex network, tie ‘TX+’ with ‘RX+’ and ‘TX-’ with ‘RX-’ locally before connecting to the network(See Figure 3). Copyright © 2005 by Suprema Inc. http://www.supremainc.com... -
Page 14: Connecting Via Auxiliary Interface
GND at only one point. 2.5.4. Connecting via auxiliary interface The BioEntry series provide an auxiliary port to support connection to laptops, even if the device is not networked during installation. The user can access and manage the device with standard RS-232C port. -
Page 15: Disassembling
BioEntry Installation Guide 15 2.6. Disassembling Remove screw at bottom of the BioEntry. Figure 4> Removing the screw Lift bottom of the housing, slide up and carefully remove it. Figure 5> Separating the case Copyright © 2005 by Suprema Inc. http://www.supremainc.com... -
Page 16: Mounting Back Plate
Smart/Pass BioEntry Installation Guide 16 2.7. Mounting back plate Install back plate to wall surface. Figure 6> Installing back plate to the wall 2.8. Reassembling the BioEntry Figure 7> Reassembling the case Copyright © 2005 by Suprema Inc. http://www.supremainc.com... -
Page 17: Examples For Bioentry™ Installation
The BioEntry Pass series operates in 1:N matching mode, and stores up to 9000 fingerprint template data into internal flash memory, which is more than enough for most applications. The access control system is secured with Suprema’s fast and reliable 1:N matching algorithm. -
Page 18: Adding Bioentry To Existing Access Control System
If the captured fingerprint and the one stored in the flash memory match, the BioEntry Pass sends the user’s ID to the access controller as if it were a Wiegand reader. l The access controller process the user ID for further authentication. Copyright © 2005 by Suprema Inc. http://www.supremainc.com... - Page 19 Data 1 Data 1 Wiegand Reader Access Controller Network Actuator / Wiegand Wiegand Lock device BioEntry Pass TX+ , RX+ TX- , RX- TRX+ TRX- Figure 9> Adding BioEntry Pass to existing system Copyright © 2005 by Suprema Inc. http://www.supremainc.com...
-
Page 20: Specifications
9,000 at 4M Flash ( 19,000 at 8M ) LOG capacity 12,800 event 4.2. General Specifications 4.2.1. Operating range Parameter Symbol Rate Units Supply voltage Operating temperature (TC,OP) °C Operating temperature (FC) °C Humidity (non-condensing) Copyright © 2005 by Suprema Inc. http://www.supremainc.com... - Page 21 LG Chem, Ltd. Battery CR2032 Hitachi Maxell, Ltd. 4.5. RTC battery specification Parameter Value Model CR2032 Manufacturer Hitachi Maxell, Ltd. Nominal Voltage Nominal Capacity 210mAh UL Recognition MH12568(N) Temp. range -20 ~ +85°C Copyright © 2005 by Suprema Inc. http://www.supremainc.com...
- Page 22 Smart/Pass BioEntry Installation Guide 22 Contact Information Suprema Inc. DongCheon Bldg. 13-21 Yangjae-dong Seocho-gu Seoul 137-130 Korea Tel: +82-2-571-9202 Fax: +82-2-571-9306 Website: http://www.supremainc.com Sales inquires : sales@supremainc.com Technical inquires : support@supremainc.com Copyright © 2005 by Suprema Inc. http://www.supremainc.com...
