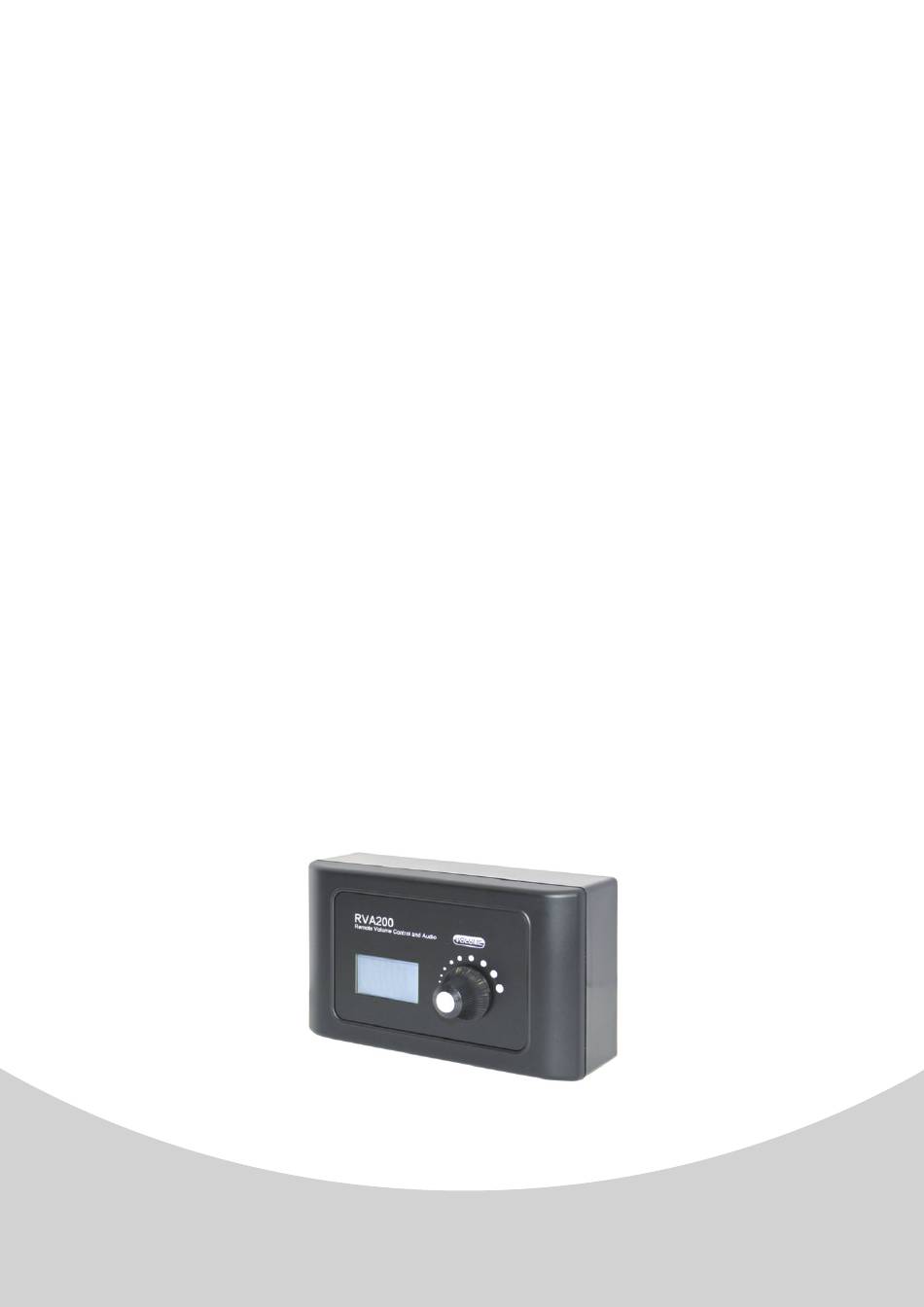

- Page 1 USER'S MANUAL AUDIO MATRIX RVA200 Volume Control with Audio Out...
-
Page 2: Table Of Contents
AUDIO MATRIX INDEX 01 SAFETY RELATED SYMBOLS 02 WARNING 03 IMPORTANT SAFETY INSTRUCTIONS 04 FOREWORD 05 AUDIO MATRIX 06 SYSTEM PREVIEW 07 BASIC OPERATION 08 INSTALLATION 09 OPERATION 10 SOFTWARE CONTROL 11 FIRMWARE UPDATE 12 SPECIFICATIONS... -
Page 3: Safety Related Symbols
AUDIO MATRIX... -
Page 4: Important Safety Instructions
AUDIO MATRIX... -
Page 5: Foreword
AUDIO MATRIX FOREWORD Thanks to purchase the product of our company, please read this manual carefully before any operation. Note: This guide contains all the information for the series needed, there might be some differences between the entity and the description, please refer to the real product for criterion. -
Page 6: System Preview
MATRIX D8 --- Server host (Compared to A8, 8 analog I/O for the A8, 8 digital I/O for D8); RVC1000 --- Remote volume control with a link port; RVA200 --- Remote volume control with additional outputs; RIO200 --- Remote analog inputs and outputs;... - Page 7 AUDIO MATRIX SYSTEM PREVIEW RETAIL STORE Sales Floor RPM200 Active Speaker RVA200 MP3/CD Player Fitting Room Video Plaver MATRIX A8 Stock Room Music Server 70/100V Office 70/100V Speaker HEALTH CLUB MATRIX A8 MP3/CD Player RPM200 MATRIX A8 70/100V MP3/CD Player...
- Page 8 AUDIO MATRIX SYSTEM PREVIEW RESTAURANT Restaurant RPM200 MP3/CD Player Active Satellite Video Plaver RVA200 Active MATRIX A8 Terrace Cloak Room 4CH 70/100V Toilet SCHOOL MATRIX A8 Active Active Speakers Speakers RIO200 RIO200 Video Projector Classroom Classroom...
-
Page 9: Basic Operation

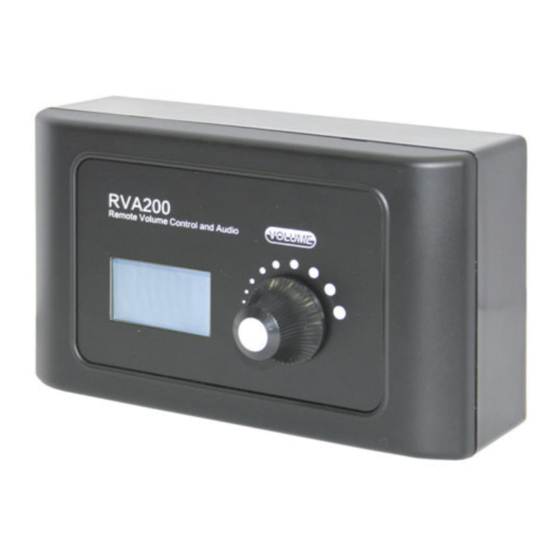

BASIC OPERATION RVA200 --Volume Control with Audio Out The RVA200 has the same functionality as the RVC1000 volume control, but it includes 2 additional analog outputs. The device includes a build in D/A converter processing digital audio AES3 signals from MATRIX-A8. -
Page 10: Installation
AUDIO MATRIX INSTALLATION Pass cables through inner wall rear case, insert the cable to the RJ45 port, and insert the phoenix terminal to dedicated port; then fix panel with crews and clip the decorated frame. Please check the screen, it should be lit and show “ID … ..” , after ID set, it would indicate “&****”... -
Page 11: Operation
AUDIO MATRIX OPERATION Channel assignment Scroll encoder to move cursor on In* item，push to enter select interface, check the ones needed by clicking encoder. After the items checked, shift cursor to “exit” , push to back to main menu. OUT01 OUT01 IN09 IN11... -
Page 12: Software Control
Double click for specific operation, here we add a RVA200. If the device is connected properly, the gray rectangle in the left middle would turn to green. -
Page 13: Firmware Update
For more information about firmware, please visit WWW.SEIKAKU.COM. Please check the hardware version twice to identify the compatibility of firmware tended to upgrade. SPECIFICATIONS RVA200 --Volume Control with Audio Out Analog Outputs x 2 • Active Balanced • Connectors： Euroblock 2 x 3-pin, 5 mm pitch •...
