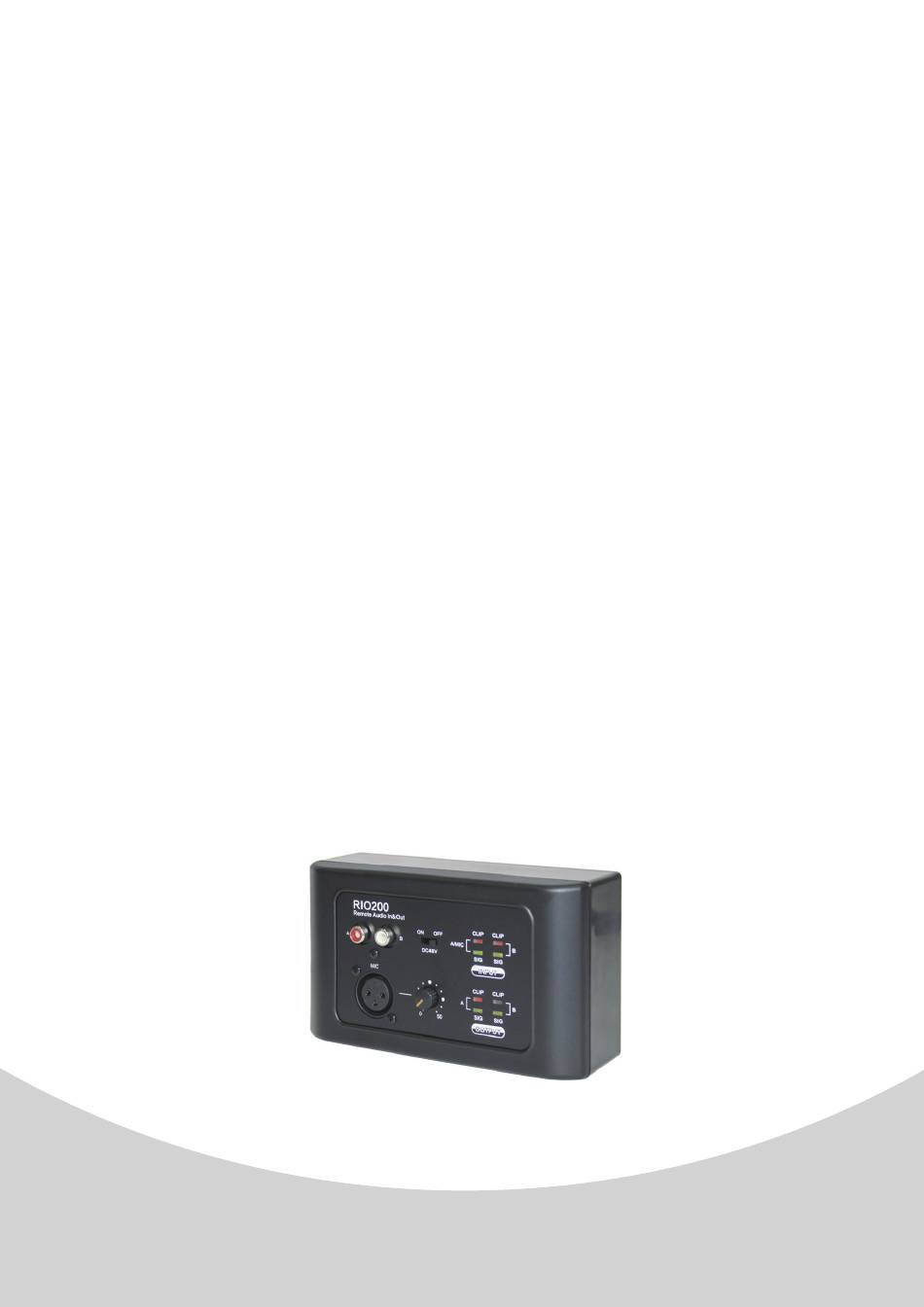

- Page 1 USER'S MANUAL AUDIO MATRIX RIO200 I/O Remote Module...
-
Page 2: Table Of Contents
AUDIO MATRIX INDEX 01 SAFETY RELATED SYMBOLS 02 WARNING 03 IMPORTANT SAFETY INSTRUCTIONS 04 FOREWORD 05 AUDIO MATRIX 06 SYSTEM PREVIEW 07 BASIC OPERATION 08 INSTALLATION 09 SOFTWARE CONTROL 10 SPECIFICATIONS... -
Page 3: Safety Related Symbols
AUDIO MATRIX... -
Page 4: Important Safety Instructions
AUDIO MATRIX... -
Page 5: Foreword
AUDIO MATRIX FOREWORD Thanks to purchase the product of our company, please read this manual carefully before any operation. Note: This guide contains all the information needed for the product. There might be some differences between the item and its description; please refer to the real product for the features. -
Page 6: System Preview
RVC1000 --- Remote volume control with a link port; RVA200 --- Remote volume control with additional outputs; RIO200 --- Remote analog inputs and outputs; RPM200 --- Remote paging station. By using a combination of the above six devices, most of the broadcasting or routing requirements can be fulfilled. - Page 7 MP3/CD Player Fitting Room Video Plaver MATRIX A8 Stock Room Music Server 70/100V Office 70/100V Speaker HEALTH CLUB MATRIX A8 MP3/CD Player RPM200 MATRIX A8 70/100V MP3/CD Player Locker Rooms Active Active Speakers Speakers RIO200 RVA200 RVC1000 Aerobics Treadmill Locker Rooms...
- Page 8 AUDIO MATRIX SYSTEM PREVIEW RESTAURANT Restaurant RPM200 MP3/CD Player Active Satellite Video Plaver RVA200 Active MATRIX A8 Terrace Cloak Room 4CH 70/100V Toilet SCHOOL MATRIX A8 Active Active Speakers Speakers RIO200 RIO200 Video Projector Classroom Classroom...
-
Page 9: Basic Operation

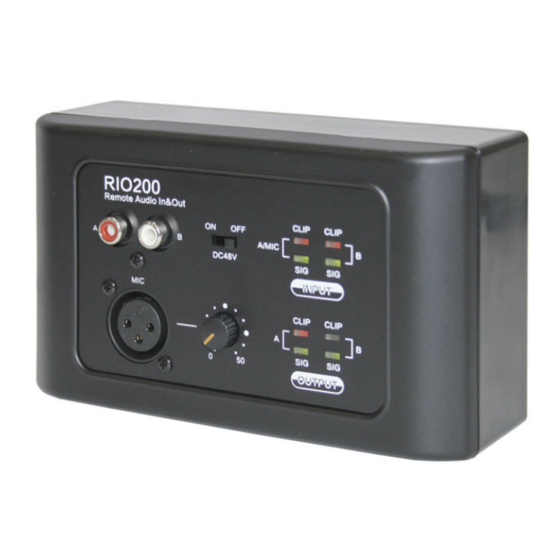

AUDIO MATRIX BASIC OPERATION RIO200 -- I/O Remote Module The RIO200 is a remote input and output module providing 2 x analog channels IN and 2 x analog channels OUT. The device includes build in A/D and D/A converters processing digital audio AES3 signals from and to the MATRIX-A8. -
Page 10: Installation
AUDIO MATRIX INSTALLATION Pass cables through inner wall rear case, insert the cable to the RJ45 port, and insert the phoenix terminal to dedicated port; then fix panel with crews and clip the decorated frame. -
Page 11: Software Control
Double click for specific operation, here we add a RIO200. If the device is connected properly, the gray rectangle in the left middle would turn to green. -
Page 12: Specifications
AUDIO MATRIX SPECIFICATIONS RIO200 -- Remote Audio I/O Inputs • Active Balanced • Connectors: 3-pin female XLR, RCA • Input Impedance: 5.1 kΩ • THD+N: < 0.01 % typ 20-20k Hz, 0dBu • Maximum Input: 20.0 dBu • Frequency Response: 20Hz~20KHz,0dB±1.5dB •...
