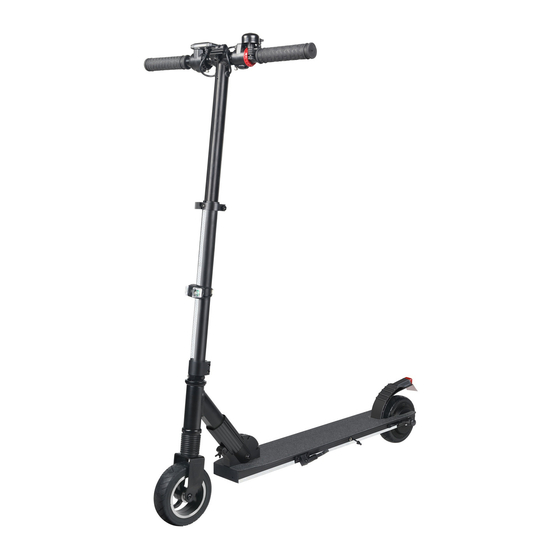

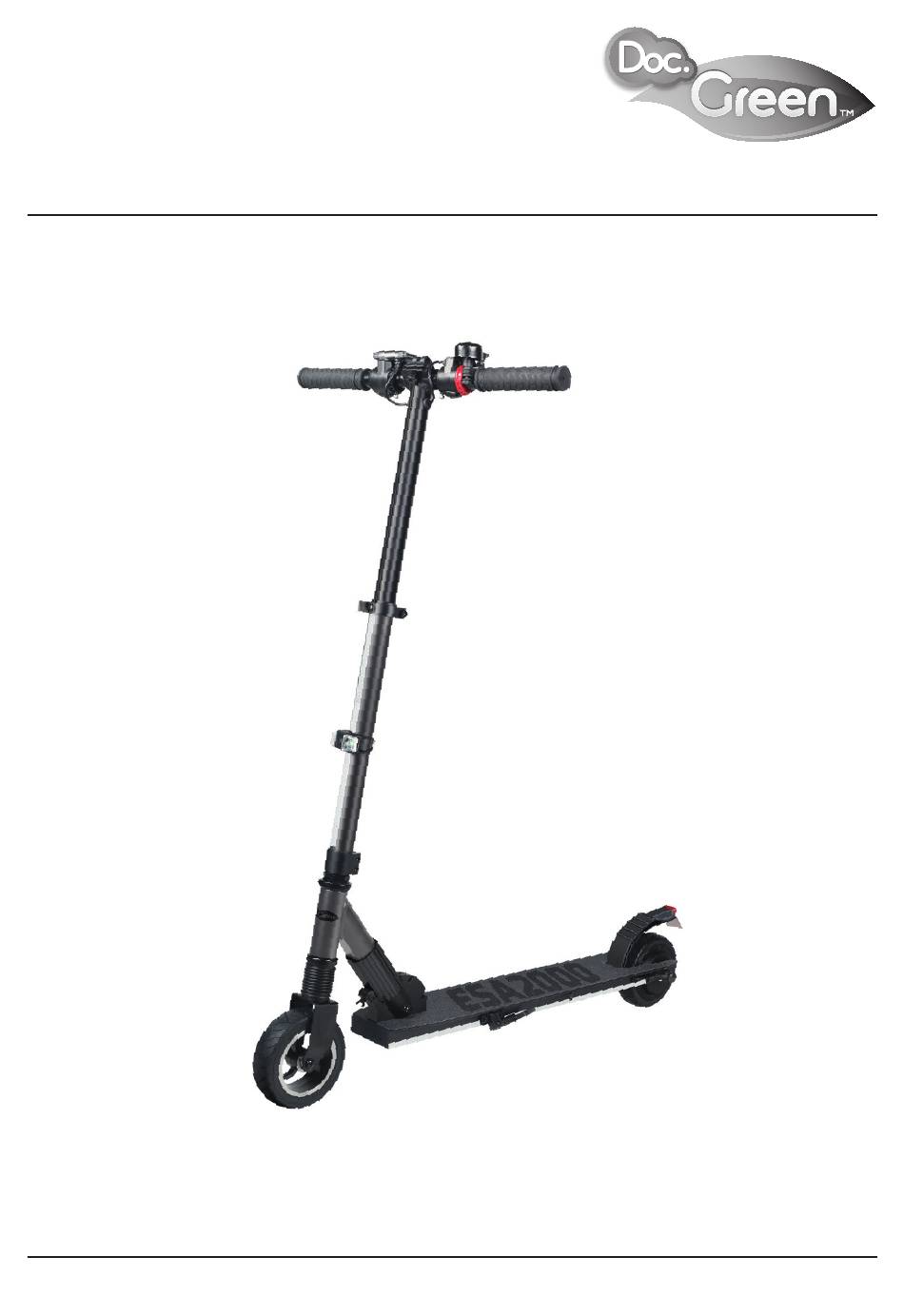

- Page 1 ESA 2000 e-Scooter Operating Manual Original Operating Manual Article / IT number: 142143 Edition: 12/2018 Revision: Version 01...
-
Page 2: Table Of Contents
Table of contents Table of contents Explanation of symbols Package contents Introduction General information Safety instructions Technical specifications Assembly Unfolding and collapsing the e-Scooter Adjusting the height of the handlebars Battery handling Operation Maintenance and care Warranty / Guarantee Environmental protection Declaration of conformity Customer service Notes... -
Page 3: Explanation Of Symbols
Explanation of symbols Explanation of symbols The following symbols and signal words are used in these assembly instructions, on the e-scooter or on the packaging. WARNING! Contains important information for avoiding damage to persons (injuries) CAUTION! Contains important information for avoiding damage to the de- vice. -
Page 4: Package Contents
Package contents Package contents: E-Scooter ESA 2000 Bedienungsanleitung Original Bedienungsanleitung Artikel / IT Nummer: 142143 Ausgabe: 12/2018 Revision: Version 01 User manual ESA 2000 e-Scooter Charger... -
Page 5: Introduction
Introduction Introduction Thank you for choosing the ESA 2000 e-Scooter. e-scooter designed brisk, safe highly enjoyable locomotion. The user manual contains import- ant information for safely operating and properly maintaining your e-scooter. It is important that you observe all safety instructions and precautions contained therein and are especially attentive while riding. -
Page 6: General Information
General information General information Electric brake Thumb throttle Handles Folding mechanism Rear-wheel brake Deck Vibration light Motor Charging port Stand... -
Page 7: Safety Instructions
Safety information Safety information Please read the instructions in this manual carefully to help mi- nimise any risks. Please note that even if you follow the instruc- tions completely, there will be some remaining risk when using e-scooter. • Always adjust your speed to the current situation to minimise risk accidents and injuries. - Page 8 Safety information when visibility conditions are poor. • The e-scooter is not suitable for stunts – DO NOT ATTEMPT to jump or perform any dangerous manoeuvres. • Do not leave the e-scooter outdoors. Please store it in a dry, dark location. •...
- Page 9 Safety information countries there are separate regulations for transporting lithium-ion batteries.
-
Page 10: Technical Specifications
Technical specifications Technical specifications 250-Watt Motor: rear-wheel motor 25.2 V / 5.8 Ah Battery: lithium-ion with LG cells Charging time: approx. 4-5 hours Electric rear-wheel brake, Brakes rear friction brake Bell, headlight, rear light, Features: reflectors, reflector strips Maximum load: 90 kg Maximum speed*: approx. -
Page 11: Assembly
Assembly Assembly The e-scooter is ready to use in a few simple steps. To assemble the handlebars: Thumb throttle (1), electric brake (2) and bell (3) come pre-as- sembled. Screw the handles L (left) and R (right) onto the handlebar as shown above. -
Page 12: Unfolding And Collapsing The E-Scooter
3. Product Description 3.1 Assembly 3.3 Unfolding 3.2 Folding n a few The Smart Kick Scooter can be assembled within 2 minutes: You can unfold the Smart Kick Scooter without The Smart Kick Scooter can be folded in a few Unfolding and collapsing the e-scooter any inconvenience in seconds. -
Page 13: Adjusting The Height Of The Handlebars
3.4 How to ajust height of extension pole 1. Open the lock buckle of extension pole. 2. Press down height-limit button (the metal bead Adjusting the height of the handlebar hole of extension pole), and pull extension pole the length(3 levels of height for option) to fit rid Adjusting the height of the handlebar height. -
Page 14: Battery Handling
Handling the battery Handling the battery Charging the battery: • Ensure that the charging port and charger are dry. • Make sure that the e-scooter is turned off. Connect the charging cable to the charging port of the e-scooter and then connect it to a power outlet (~230 V / 50-60 Hz). - Page 15 Handling the battery • Depending on the charge state, lithium batteries have a free- zing point of approx. -20°C to -25°C. If a battery cell freezes it will be irreparably destroyed and the whole battery will need to be replaced. As with conventional batteries, a lithium battery loses up to 40% of its capacity from approx.
- Page 16 Handling the battery WARNING! Proper handling of the battery: • Never remove the battery from the e-scooter. • Charge the battery every 2 months for at least 1 hour, even if the e-scooter has not been used. • Never heat the battery or throw it into an open fire. •...
-
Page 17: Operation
Operation Operation Before you begin • Wear comfortable leisure or sports clothing and flat-heeled shoes when riding. • Before riding for the first time, make sure you have plenty of space and ensure that there are no obstacles in the way. Wear a safety helmet and protective pads for your own safety. - Page 18 Operation Rear-wheel brake: Tread here rear-wheel friction brake to activate Display functions: Charge level indicator Speed km/h Selected speed level 1: 5 km/h 2: 15 km/h 3: 23 km/h Odometer Increase speed level Power button for switching the e-scooter on and off Decrease speed level...
- Page 19 Operation Lighting: The light switch is loca- ted here Using the push button you can choose between 3 lighting mo- des. 1. Press the button to switch it on. The LED lights flash at short intervals. 2. Pressing again shortens the flashing intervals. 3.
- Page 20 Operation If the front-light battery is flat, it must be replaced with an equi- valent 3V CR2032 battery: The rear light is plugged into the rear mudguard, is controlled by sensors and cannot be manually switched on/off. Furthermore, the battery in the rear light must be replaced by an equivalent 3V CR1632 battery as soon as it is empty: Always turn off the •...
-
Page 21: Maintenance And Care
Maintenance and care Maintenance and care NOTE! Regular maintenance contributes to the safety of your kickscooter. Only use a soft, damp cloth for cleaning the e-scooter. Dirt that cannot be removed this way can be removed with plastic polish. Follow the manufacturer's instructions in this respect. No modifications may be made except those according to the manufacturer's instructions. - Page 22 Maintenance and care Please check before every ride that all screws and self-locking fastening elements are tightened. These may loosen when riding on uneven surfaces. A well-maintained battery can still provide good performance even after many kilometres. Charge the battery after each ride and avo- id operating the battery on "empty".
-
Page 23: Warranty / Guarantee
The warranty for the ESA 2000 e-Scooter is valid for 24 months from the date of purchase (date of receipt). The battery has a warranty of 6 months from the date of purcha-... - Page 24 Warranty / Guarantee Warranty to them in detail. If the problem cannot be solved in this way, the thoroughly cleaned product, including all accessories, must be packaged for safe transport and returned in accordance with the dealer's instructions. The following information and documents must be attached to the package: 1.
- Page 25 Warranty / Guarantee Warranty • improper operation, care and/or maintenance or storage (e.g. damage caused by moisture or excessive temperatu- res, neglected products, etc.) • in the case of repairs, repair attempts and modifications of any kind as well as the use of third-party spare parts and accessories etc., which have been carried out by anyone other than KSR Group GmbH or companies authorised by KSR Group GmbH...
-
Page 26: Environmental Protection
Environmental protection Environmental protection Old devices must not be disposed of in the household waste! If the electric vehicle can no longer be used, all consumers are required by law to bring old appliances to a separate waste collection point, for example in their community or district, and not to dispose of them in the household waste. -
Page 27: Declaration Of Conformity
Declaration of conformity Declaration of conformity / Certificates... -
Page 28: Customer Service
Customer service Customer service Please note: If you have any questions about the product you have purchased which cannot be answered by the salesperson, please contact our service centre: servicecenter@ksr-group.com For written inquiries, please provide the following information so that your request can be processed: Customer details: Surname/first name Street name/no. -
Page 29: Notes
Notes... - Page 30 Notes...
- Page 31 Notes...
- Page 32 Distributor/Editor: KSR Group GmbH In Business Park 15 3494 Gedersdorf Austria...
- Page 33 Für Kinder ab 12 Jahren. Überschreiten Sie nicht das maximale Benutzergewicht von 90 kg. • Der ESA 2000 darf nur von einer Person gefahren werden. • Lesen Sie die Bedienungsanleitung sorgfältig durch, bevor Sie den E-Scooter in Betrieb nehmen. Dort finden Sie wichtige Informationen.
