MasterCraft MAXIMUM 055-3503-6 Instruction Manual

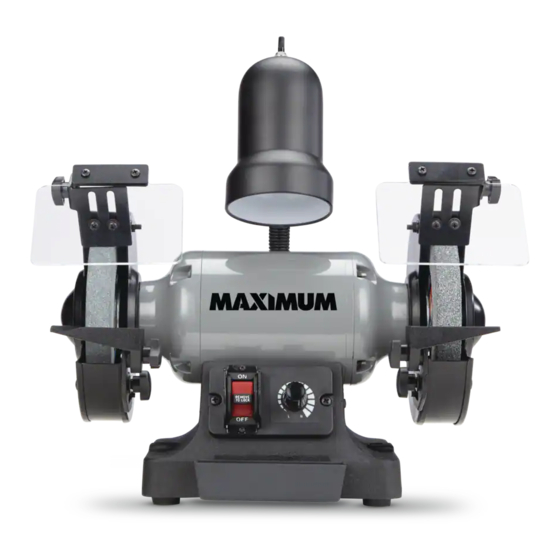

Heavy-duty bench grinder
Hide thumbs

Advertisement

Table of Contents

Heavy-duty Bench Grinder
Model no. 055-3503-6
IMPORTANT:
Please read this manual carefully before using
this product, and save it for reference.
TM
INSTRUCTION
MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MAXIMUM 055-3503-6 and is the answer not in the manual?

Questions and answers

Related Manuals for MasterCraft MAXIMUM 055-3503-6

Summary of Contents for MasterCraft MAXIMUM 055-3503-6

  • Page 1 Heavy-duty Bench Grinder Model no. 055-3503-6 IMPORTANT: INSTRUCTION Please read this manual carefully before using MANUAL this product, and save it for reference.
  • Page 2 SPECIFICATIONS SAFETY GUIDELINES 5–7 IMPORTANT INFORMATION 8–9 KEY PARTS DIAGRAM PACKAGE CONTENTS ASSEMBLY INSTRUCTIONS 12-14 OPERATING INSTRUCTIONS 15–16 MAINTENANCE 17-19 TROUBLESHOOTING EXPLODED VIEW PARTS LIST WARRANTY 23-24 NOTE: If any parts are missing or damaged, or if you have any questions, please call our toll-free helpline at 1-800-689-9928.

  • Page 3: Specifications

    model no. 055-3503-6 | contact us 1-800-689-9928 SPECIFICATIONS GENERAL SAFETY GUIDELINES BEFORE USING THIS POWER TOOL MOTOR 120 V AC, 60 Hz, 2.5A WARNNING ! WHEEL SIZE 6 x 3/4" (15.2 x 1.9 cm) with 1/2" (1.27 cm) arbour Failure to follow these rules may result in serious personal injury. WHEEL GRIT 36- and 60-grit VARIABLE SPEEDS...

  • Page 4: Additional Specific Safety Rules

    model no. 055-3503-6 | contact us 1-800-689-9928 ADDITIONAL SPECIFIC SAFETY RULES 1. DO NOT operate this machine until it is completely assembled and installed according 13. STAND TO ONE SIDE before turning the machine on . Loose fragments or wheel parts could fly from the wheel at high speeds.

  • Page 5: Minimum Gauge For Cord Sets

    model no. 055-3503-6 | contact us 1-800-689-9928 The plug must be plugged into a matching outlet that is properly installed and grounded in IMPORTANT INFORMATION-Electrical accordance with all local codes and ordinances. A separate electrical circuit should be used for your machines. This circuit should not be less Do not modify the plug provided–if it will not fit the outlet, have the proper outlet installed than #12 wire and should be protected with a 20 A time lag fuse.
  • Page 6 model no. 055-3503-6 | contact us 1-800-689-9928 Package contents Description Qty. Work light On/Off switch No. Description Qty. Work light Bench grinder Eye shield support Tool rest mounting bracket Spark guard Tool rest Eye shield Locking knob/flat washer 36-grit grinding wheel Locking nut knob/flat washer Right tool rest Carriage bolt...
  • Page 7 model no. 055-3503-6 | contact us 1-800-689-9928 INSTALLING TOOL RESTS Mounting the Grinder to the Workbench Insert the lock knob (1) through the flat washer (2) and the right side tool rest (3) Before attempting to use this grinder, it must be properly mounted to a to the right side tool rest mounting bracket workbench or grinding stand.

  • Page 8: Installing The Eye Shields

    Using Your Bench Grinder INSTALLING THE EYE SHIELDS ® This Mastercraft Maximum 6" Bench Grinder is ideal for use in sharpening chisels, axes and 1. Attach the right eye shield (1) to other wood-cutting tools. It is also useful for repairing tips on screwdrivers and drill bits or the spark guard (2) by using the for removing excess metal burrs from pieces of cut metal.

  • Page 9: Maintenance

    model no. 055-3503-6 | contact us 1-800-689-9928 Grinding Maintenance Maintenance Required Frequency • Adjust the tool rest to accommodate large or unusually shaped workpieces. Check power cord Before each use • Always keep the workpiece moving across the face of the grinding wheel. Grinding Check wheels for cracks Before each use continuously on the same spot on the wheel will cause grooves to be worn into the Check moving parts for alignment and binding issues Before each use wheel.

  • Page 10: Work-Light Bulb Replacement

    model no. 055-3503-6 | contact us 1-800-689-9928 5. Remove the hex nut (8) (as WIRE WHEEL OR BUFFING WHEEL shown ), the wheel flanges (9) and the wheel (10). A wire wheel or buffing wheel (not supplied) may be used with your grinder. You will need to add one or more spacers ( 1 ) to allow the arbour hex nut to tighten correctly.
  • Page 11 model no. 055-3503-6 | contact us 1-800-689-9928 SYMPTOM PROBABLE CAUSE CORRECTIVE ACTION Low Voltage. Check power source for proper voltage. Inspect all lead connection Open circuit in motor or on motor for loose or open Motor will not start. loose connections. connections.

  • Page 12: Additional Limitations

    Qty Item Description 5-Year Limited Warrant Star-head screw Right safty guard cover This Mastercraft Maximum product is guaranteed for a period of 5 years Philips Screw with spring Carriage bolt from the date of original retail purchase against defects in workmanship...

  • Page 13: Notice To Consumer

    model no. 055-3503-6 | contact us 1-800-689-9928 Notice to Consumer This warranty gives you specific legal rights, and you may have other rights, which may vary from province to province. The provisions contained in this warranty are not intended to limit, modify, take away from, disclaim or exclude any statutory warranties set forth in any applicable provincial or federal legislation.
