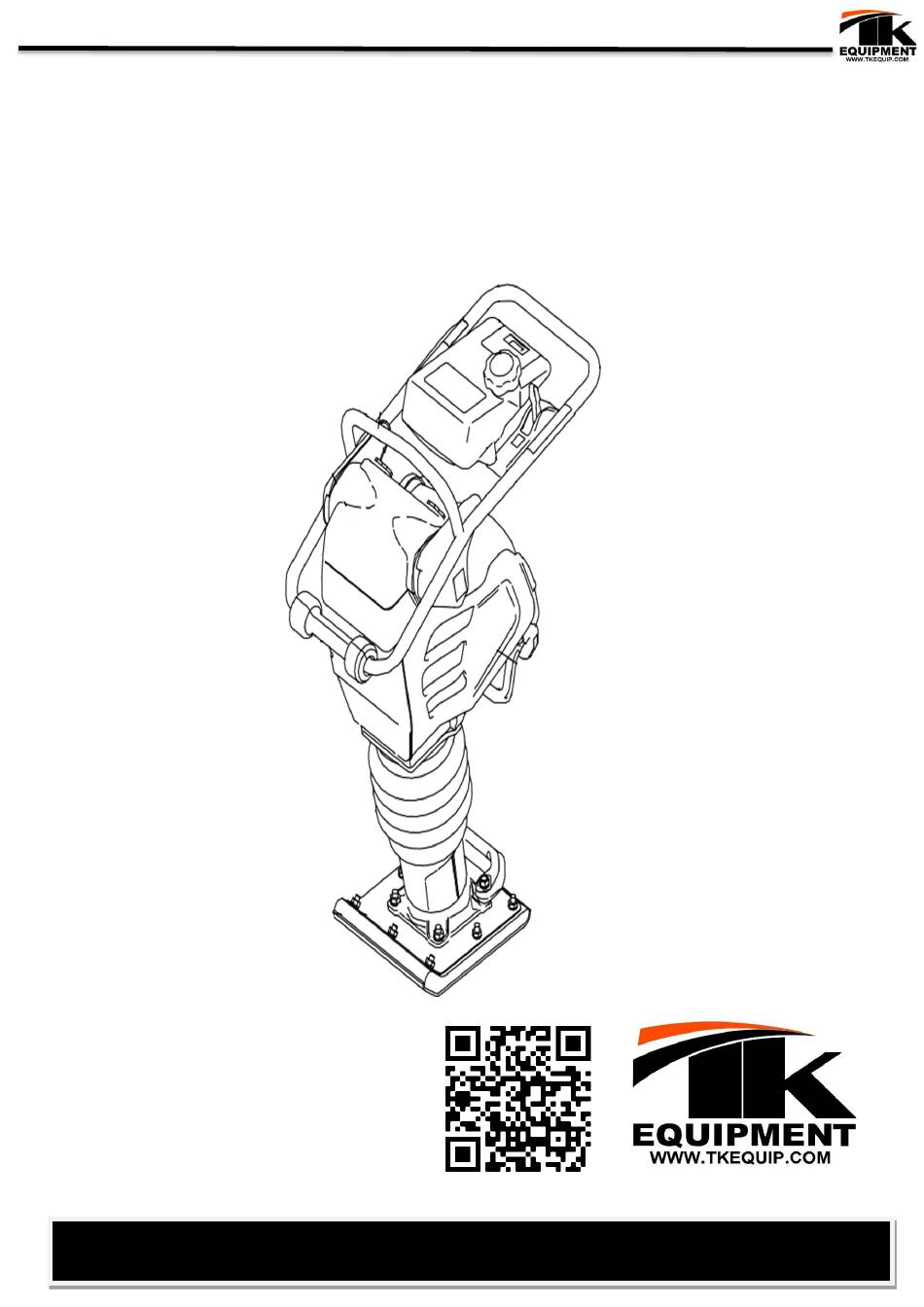

- Page 1 (956) 796 - 9411 Operator’s Safety and Service RAM70H Rammer 01012021 It is the OWNER´S RESPONSABILITY to communicate information on the SAFE USE and OPERATION of this machine to the operators.
-
Page 2: Table Of Contents
www.tkequip.com (956) 796 - 9411 TABLE OF CONTENTS 1.Serial Number Location ..........3 2.Parts Ordering Procedure .......... 3 3.Operating Instructions ..........4 4.Safety Precaution ............5 5.Safety Notice & Decals ..........6 6.Before Operating............6 7.Operation Instruction..........7 8.Adding Fluids & Towing ..........8 9.Service Instructions .......... -
Page 3: Serial Number Location
www.tkequip.com (956) 796 - 9411 1. SERIAL NUMBER LOCATION To be eligible to and extended factory warranty please register your machine online at https://tkequip.com/warranty/ (Write model number) (Write serial number) The unit year of manufacturing can be determined by its serial number. So, keep this information handy at all times, use your unit serial number when ordering parts. -
Page 4: Operating Instructions
www.tkequip.com (956) 796 - 9411 ALWAYS HAVE READY: 1. Dealer Account number 2. Shipping address and method of shipping if different than billing address. 3. Applicable model and serial number of machine(s). 3A9S############# 4. Item part number(s), description, and quantities. 3. - Page 5 www.tkequip.com (956) 796 - 9411 IT IS THE OPERATOR'S RESPONSIBILITY TO OPERATE OUR MACHINES ONLY WHEN WEARING THE PROPER PROTECTION RECOMMENDED BY THE OCCUPATIONAL SAFETY AND HEALTH ADMINISTRATION. HARM OR DEATH BY INHALING PARTICLES OR OTHER PHYSICAL INJURY MAY OCCUR IF THIS MACHINE IS OPERATED WITHOUT USING THE PROPER SAFETY GEAR, OR FOLLOWING THE APPROPRIATE PROCEDURES IN THIS MANUAL.
-
Page 6: Safety Notice & Decals
www.tkequip.com (956) 796 - 9411 HEAD PROTECTION Wear O.S.H.A. specified safety helmets. EYE PROTECTION Wear O.S.H.A. specified eyes shields, safety glasses, and sweat bands. DUST PROTECTION Wear O.S.H.A. specified dust mask or respirator. OPERATOR Keep children and bystanders off and away from the equipment. For details on safety rules and regulations in the United States, contact your local Occupational Safety and Health Administration (O.S.H.A.) office. -
Page 7: Before Operating
www.tkequip.com (956) 796 - 9411 6. BEFORE OPERATING 1. Thoroughly inspect the rammer for signs of damage. Check components are present and secure. Pay special attention to any sign of oil leak. Oil Fill 2. Check the engine oil & sight glass level and refill if necessary. Sight glass Oil drain plug 3. -
Page 8: Operation Instruction
www.tkequip.com (956) 796 - 9411 7. OPERATION INSTRUCTIONS Prior to starting engine, make sure all guards are in place and secured. Check Gas engine The engine (Figure 2) must be checked for proper lubrication and filled with fuel prior to operation. Refer to the engine manufacturer's manual for detailed operation and service information. - Page 9 www.tkequip.com (956) 796 - 9411 8. ADDING FLUIDS & TRANSPORTATION STOP THE ENGINE BEFORE: 1. Adding fuel/Oil. 2. Leaving equipment unattended for any amount of time. 3. Making any repairs or adjustments to the unit. 4. Transportation. IF LIFTING/LOWERING EQUIPMENT ALWAYS: 1.
-
Page 10: Service Instructions
www.tkequip.com (956) 796 - 9411 9. SERVICE INSTRUCTIONS 1. Never service or lubricate the unit engine while running. 2. After servicing the unit, restore and fasten all guards, shields, and covers to their original positions. 3. Never drain oil into the ground, into open streams, or down sewage drains. 4. -
Page 11: Replacements
www.tkequip.com (956) 796 - 9411 4. Remove soil and clean the bottom of shoe. 5. For wheel kit, Grease wheels (4) weekly. Use high quality gun grease, Kendall “SHP High temp” or equal. 6. Clean air filter and foam pre-cleaner daily. More often if dry cutting. Always use foam element pre-cleaner over paper cartridge. -
Page 12: Equipment Specs
www.tkequip.com (956) 796 - 9411 12. EQUIPMENT SPECS MODEL RAM-70H Impact Force lbf (Kgf) 3372 lbf ( Exciter Speed (Blows Per Min) 640-680 Fuel Capacity. (Lt) 2.9 qt (2.8 lt.) 11” x 13” (28)(33) Shoe Size in (cm) Engine Power GX120 Honda (2 Strokes) 31”... - Page 13 www.tkequip.com (956) 796 - 9411 Troubleshooting (Engine) Symptom Possible Problem Solution Combo lever in incorrect position? Make sure combo lever is in start position. Spark plug bridging? Check gap, insulation or replace spark plug. Carbon deposit on spark plug? Clean or replace spark plug. Short circuit due to deficient spark plug Check spark plug insulation, replace if insulation?
- Page 14 www.tkequip.com (956) 796 - 9411 Troubleshooting (Engine) - continued Symptom Possible Problem Solution Air cleaner dirty? Clean or replace air cleaner. Improper level in carburetor? Check float adjustment, rebuild Weak in power, compression is carburetor. proper and does not misfire. Defective spark plug? Clean or replace spark plug.
-
Page 15: Warranty
This first day of use is established by the date of a completed warranty card or a bill of sale to the end user. TK Equip units offer a Life time warranty on Bearings & Seals. The obligation under this warranty is limited to... - Page 16 #:__________ TK Equipment, Inc. Limited Warranty Application This warranty application must be filled in by the dealer/distributor at the time of the sale. Please Print TK Equipment Product Purchased at:___________________________ Phone (_______)____________ Street Address:______________________________________________________________________ TK Equipment, Inc. City:____________________________________ State:_______ Zip:___________________________ Model No.:___________________________Customer Invoice:_________________Date:___/___/___...
-
