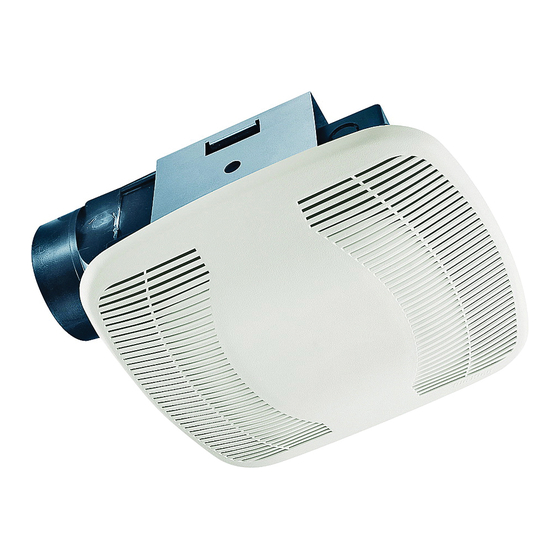

Air King BFQ90 Specifications

• Grill
White, polymeric grill secured in place with torsion springs;
easily removed if necessary, dimensions - 10" x 10".
• Blower Wheel
One piece polymeric wheel 5
• Motor
Heavy duty, permanently split capacitor, plug-in, 4 pole motor,
life time lubrication, thermally protected, suitable for continuous
operation. Rated 120 volts, 60 hz., 0.45 amps.
• Fan Housing
Flame retardant ABS, 0.110" thick, dimensions 8
• Duct Collar
Plastic collar for 4" duct connection, comes complete with built
in non-metallic back draft damper for quiet operation.
• Ventilating Area
For bathrooms up to 90 sq. ft. For other rooms up to 115 sq. ft.
Air Flow - CFM 101
PROJECT
LOCATION
CONTRACTOR
FAN MODEL
CFM
NUMBER NUMBER
C US
Specifications subject to change without notice.
90 CFM/2.5 SONES @ 0.10" WG.
HVI CERTIFIED 120 Volts, 0.45 amps, 60 hz.
1 / 8 3 / 8
" diameter, 2 " wide, with 48 fins.
1 / 2
" x 9
Static Pressure (inches of w.g.)
0 0.05 0.1 0.125
95 90 88
IN
RPM WATTS
W.G.
Acceptable for use over tub or shower when
installed in a GFCI protected branch circuit.

• Unit Mounting

Rated for ceilings insulated to R-40. Designed to mount in
ceilings with at least 6" of clearance. The unit is mounted directly
1 / 16 3 / 4
" x 4 ".
to the joist using a separate lock-in bracket (included with unit).
The housing will mount through drywall thickness up to
with a rough-in opening of 8
• Single Pack Shipping Info
Box Dim: 11" x 12" x 6"
UPC: 0-8316220901-6
Shipping Weight: 5
PERFORMANCE
0.15 0.2 0.25
85 81 74
ARCHITECT
ENGINEER
SUBMITTED BY
AMPS SONES QTY
U.S.: 820 Lincoln Drive
West Chester, Pennsylvania 19380-4466
Tel: (610) 692-7400 • 877-304-3785
Fax: (610) 696-8048
SPECIFICATIONS
BFQ90
EXHAUST FANS
1 / 2 1 / 16
" x 9 ".
1 / 4
lbs.
HVI Sones Fan Speed
@ .1 SP RPM
0.3
65 2.5 1375
DATE
OPTIONAL EQUIPMENT
& REMARKS
Canada: 110 Glidden Road
Brampton, Ontario L6T 2J3
Tel: (905) 456-2033
Fax: (905) 456-1015
3 / 4
",
Power
Watts
50
Updated 1-06
