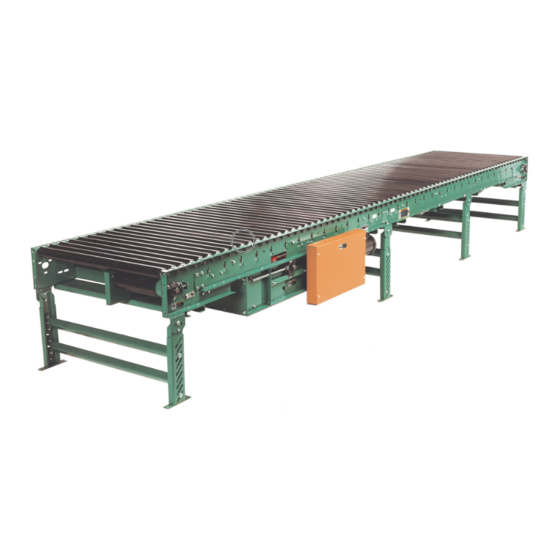

Summary of Contents for Roach Conveyors 638CALR
-
Page 2: Table Of Contents
-Cautions, Warnings and Hazards ................3 SETTING PRESSURE ROLLER TENSION .............. 16 SAFETY INFORMATION ..................4 -Model 638CALR Pressure Roller Adjustment ............16 -Important Safety Guidelines ..................4 -Model 796CALR / 251CALR Pressure Roller Adjustment ......... 16 -Understanding Pop Out Rollers ................4 MAINTENANCE SAFETY PRECAUTIONS ............ -
Page 3: Cautions, Warnings And Hazards
CAUTIONS, WARNINGS AND HAZARDS INTRODUCTION This manual was prepared as a “how-to- veyor can become your best workplace friend noted with caution labels) and to operate unit by following simple safety guidelines. Failure guide” for installers, end-users and mainte- in strict accordance with the safety guidelines to follow even the most basic safety nance personnel. -
Page 4: Safety Information
SAFETY INFORMATION IMPORTANT SAFETY GUIDELINES WARNING: All personnel coming in contact with this conveyor should be aware of the following safety guidelines BEFORE USING OR WORKING AROUND CONVEYOR. NOTE: ALWAYS notify Roach Manufacturing whenever any ® conveyor is used in an application or condition other than was originally intended. Failure to notify Roach ®... -
Page 5: Receiving And Inspection
RECEIVING AND INSPECTION SHORTAGES, DAMAGES AND RETURN AUTHORIZATIONS NOTE: Do not return goods to factory without prior, written return authorization. Unauthorized returns are subject to refusal at factory. ILLUS. A Before uncrating, check the quantity of items freight documentation) be checked to ensure For damaged shipments, consult factory to received against bill of lading to confirm that receipt of ALL units ordered including ALL... -
Page 6: General Installation Information
GENERAL INSTALLATION INFORMATION COUPLINGS / ATTACHING BED SECTIONS NOTE: It is critical for bed sections to be field assembled in proper sequence following bed section labels. SERIAL # 321654 BED JOINT # 2 MARK # P-1 SERIAL # 321654 BED SECTION LABELS BED JOINT # 2 MARK # P-1 When preparing to install conveyor, first... -
Page 7: Squaring Bed Sections
GENERAL INSTALLATION INFORMATION SQUARING BED SECTIONS NOTE: Squaring rods are supplied on the underneath side of bed sections and feature a turnbuckle assembly which is used to square accompanying bed sec- tions. Adjust the turnbuckle until the frame is squared. When conveyor section is determined to be Squaring rods are supplied on the under- Next, tighten bolts in splice plates when... -
Page 8: Knee Braces, Casters And Ceiling Hangers
KNEE BRACES, CASTERS AND CEILING HANGERS INSTALLING KNEE BRACES AND CASTERS NOTE: Install knee brace (when supplied) after final permanent support installation and elevation adjustment. Knee braces add strength to permanent Casters (when supplied) are generally A standard support is not designed for supports and stability to units in portable installed at the factory. -
Page 9: Undertrussing And Polytier Supports
UNDERTRUSSING AND POLYTIER SUPPORTS INSTALLATION OF UNDERTRUSSING WARNING: It is the responsibility of the customer and installation personnel to sup- ply and install net or mesh guarding on conveyors mounted overhead to prevent product and/or debris from falling to floor in areas where required. -
Page 10: Installation Of Belting
INSTALLATION OF BELTING BELT CONNECTIONS CAUTION: Belt lacing must be kept in good condition for safe work environment. BELT LACING PIN BELT LACING (protrudes belt width for clarity only) BELT WIDTH LACING ANGLE 6” 10¯ 12” 5¯ Conveyor belting is cut to proper length, laced friction and less driving force. -
Page 11: Belt Path
BELT PATH ILLUSTRATION FOR UNITS WITH END DRIVE BELT FLOW PRODUCT FLOW DRIVE PULLEY TAKE-UP PULLEY TREAD ROLLERS BELT PRESSURE ROLLERS RETURN ROLLER WARNING: Belt driven live roller conveyors must have safety pop out tread rollers when installed below 7’-0” elevation. When installed at 7’-0”... -
Page 12: Start-Up Procedures
START-UP PROCEDURES DRIVE CHAIN AND SPROCKET ALIGNMENT WARNING: To check drive sprocket CHAIN GUARD REMOVED FOR CLARITY alignment, it is imperative that conveyor WARNING: DO NOT OPERATE CONVEYOR is shut “OFF” and power source is locked WITH CHAIN GUARD REMOVED out before any adjustments are attempted. -
Page 13: Gear Reducer Vent Plug
START-UP PROCEDURES ® GEAR REDUCER WITH POSIVENT PosiVent Unique design incorporates a single seam construction. Factory filled with synthetic lubrication for universal mounting. Lubed for life, no oil changes are required. To expedite the installation and start-up process, all gear red ucers are shipped filled with oil. The reducers are sealed and lubed for life and require no oil changes. -
Page 14: Belt Tracking
BELT TRACKING GENERAL INFORMATION CAUTION: Upon initial operation the belt will stretch. To maintain proper belt tension, adjustment of the take-up pulley or removal of belt patch will be required. ONLY trained personnel should make belt tracking adjustments. REMOVE BELT PATCH Upon initial use belting will stretch after length, removal of a belt patch may be In a reversible application, a belt that runs... -
Page 15: Erratic Tracking At Start-Up
BELT TRACKING ERRATIC TRACKING AT START-UP CAUTION: Upon start-up, if belt tracks to one side of unit, turn unit “OFF”, lock CHECK LEVEL ACROSS WIDTH OF UNIT out power source and confirm that con- veyor is square and that all prime tracking components are square with bed. -
Page 16: Setting Pressure Roller Tension
SETTING PRESSURE ROLLER TENSION CALR PRESSURE ROLLER ADJUSTMENT NOTE: Do not apply too much pressure TO INCREASE DRIVE TENSION-ROTATE HEX SHAFT TO HIGHER to tread rollers. If too much tension is NUMBER ON CAM; LOWERING NUMBER DECREASES TENSION applied, tread rollers may have tendency to raise out of slotted frame. -
Page 17: Maintenance Safety Precautions
MAINTENANCE SAFETY PRECAUTIONS BEFORE PERFORMING MAINTENANCE CAUTION: Only trained personnel shall perform maintenance functions. Before maintenance operations are performed, conveyor must be shut “OFF” and disconnects locked in the “OFF” position to prevent unit from unauthorized start-up. One of the most important guidelines for maximizing conveyor Do not perform any work on conveyors or conveyor system while operation and personnel safety is to implement a regular mainte- in operation unless it is impossible to otherwise conduct adjust-... -
Page 18: Maintenance And Lubrication
MAINTENANCE AND LUBRICATION PERIODIC MAINTENANCE SCHEDULE MODEL NO.__________ WEEKLY RECOMMENDED MAINTENANCE SCHEDULE* COMPONENT DETAIL OF MAINTENANCE BEARINGS Lubricate in dirty, dusty or moist-wet conditions UNIT SAFETY CHECK Confirm placement of all guards, warning labels & check for loose bolts, nip points & other hazards MONTHLY RECOMMENDED MAINTENANCE SCHEDULE* COMPONENT... -
Page 19: Recommended Lubricants
MAINTENANCE AND LUBRICATION RECOMMENDED LUBRICANTS MISC. LUBRICANTS LUBRICANT BRAND/DESCRIPTION General Purpose Grease Shell Dolium R (Shell Oil Co.) (For -30¯F to 300¯ operation)* (or Suitable equivalent) For extreme Temperature Operation Mobiltemp SHC-32 (Mobil Oil Corp.) (-90¯F to 350¯F operation)* (or suitable equivalent) Washdown Application* Shell Alvania No. -
Page 20: Report On Miscellaneous Maintenance Performed
MAINTENANCE AND LUBRICATION REPORT ON MISCELLANEOUS MAINTENANCE PERFORMED REPORT ON MAINTENANCE CONVEYOR REPAIRED INSPECTION DETAIL OF MAINTENANCE COMPLETED (OR INSPECTION) MARK NO. DATE LIST PARTS REPLACED OR REPAIRS NOTES... -
Page 21: Trouble Shooting And Replacement Parts
TROUBLE SHOOTING AND REPLACEMENT PARTS TROUBLE SHOOTING / SERIAL PLATE TROUBLE SHOOTING TROUBLE PROBABLE CAUSE REMEDY A. Frozen sprocket A. Check and inspect all sprockets and bearings. Replace Motor & gear reducer sprockets failing to rotate or that are difficult to rotate. running excessively hot, B. -
Page 22: Parts Lists For 638Calr
MODEL 638CALR PARTS LIST FOR UNIT WITH 4” AND 8” END DRIVE... -
Page 23: Units With 4", 8" And 12" Center Drive
MODEL 638CALR PARTS LIST FOR UNIT WITH 4” AND 8” CENTER DRIVE... -
Page 24: Units With 4" And 8" End Side Mount Drive
MODEL 638CALR PARTS LIST FOR UNIT W/ 4” & 8” END SIDE MOUNT DRIVE... - Page 25 MODEL 796CALR PARTS LIST FOR UNIT W/ 4” & 8” END DRIVE...
- Page 26 MODEL 796CALR PARTS LIST FOR UNIT WITH 4” AND 8” CENTER DRIVE...
- Page 27 MODEL 796CALR PARTS LIST FOR UNIT W/ 4” & 8” END SIDE MOUNT DRIVE...
-
Page 28: Parts Lists For 796Calr
MODEL 251CALR PARTS LIST FOR UNIT WITH 8” AND 12” END DRIVE... -
Page 29: Units With 4", 8" And 12" Center Drive
MODEL 251CALR PARTS LIST FOR UNIT WITH 8” AND 12” CENTER DRIVE ITEM DESCRIPTION ITEM DESCRIPTION 251CALRI INTERMEDIATE BED SECTION 251CALRI INTERMEDIATE BED SECTION (CONT.) 1.9 Roller Adjustment Bracket 251CALR Cross Brace Pipe Splice Plate 251 CALR Cross Member 251 CALR Cross Brace Rod 196S Pressure Roller (A20314-BF) Pressure Roller Adjusting Cam 196S Rollers (A20340-BF) -
Page 30: Units With 4" And 8" End Side Mount Drive
MODEL 251CALR PARTS LIST FOR UNIT & 12 END SIDE MOUNT DRIVE ” ”... -
Page 31: Parts Lists For 251Calr
oach onveyoRs aRRanty • Materials used by Roach Conveyors are of good quality. • Any part proving to be defective in materials or workmanship upon Roach inspec- tion, will be replaced at NO cost, FOB, Trumann, Arkansas, for one year. Installation expense will be paid by others. • Roach liability includes furnishing said part or parts; Roach is not liable for conse- quential damages, such as loss of profit, delays or expenses incurred by failure of said part or parts. -
Page 32: Units With 4", 8" And 12" Center Drive
808 HIGHWAY 463 TRUMANN, ARKANSAS 72472-1310 Tel 870-483-7631 Fax 870-483-7049 info@roachconveyors.com www.roachconveyors.com Revised 03-07 MCW06622-03...
