PLEASE NOTE THE ANSI A92.2 STANDARD AND THE MANUAL OF RESPONSIBILITIES CONTAINS
RECENTLY UPDATED INFORMATION. DEALERS, OWNERS, USERS, OPERATORS, LESSORS AND LESSEES MUST
ADHERE TO THESE UPDATED STANDARDS.
YOU HAVE READ AND UNDERSTOOD ALL INFORMATION IN BOTH
OPERATOR'S AND SERVICE MANUALS, PROVIDED WITH EACH
VERSALIFT.
AND IS THE SOLE PROPERTY OF TIME MANUFACTURING CO.
CONTENTS ARE NOT TO BE DISCLOSED, COPIED, OR REPRODUCED
IN ANY MANNER WITHOUT THE EXPRESSED, WRITTEN PERMISSION
OF TIME MANUFACTURING CO.
Time Manufacturing Co. 7601 Imperial Drive P.O. Box 20368 Waco, Texas 76702 Phone: 254-399-2100 Fax: 254-751-0775
Time Manufacturing Co. reserves the right to improve the design or change specifi cations at any time without notice.
Operator's Manual

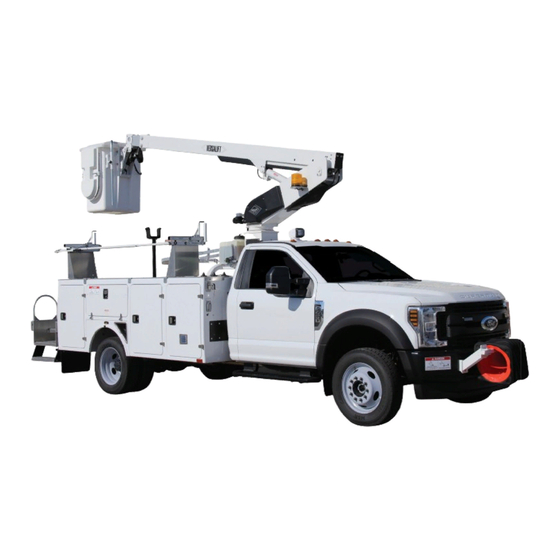

TEL-29-N/NE
Aerial Device
SERIAL NUMBER
22011-12
MANUAL PART NUMBER
ATTENTION:
DO NOT ATTEMPT TO OPERATE THIS VERSALIFT UNTIL
THIS MANUAL CONTAINS CONFIDENTIAL INFORMATION
02/19
Advertisement
Table of Contents
Related Manuals for Versalift TEL-29-N
Summary of Contents for Versalift TEL-29-N
- Page 1 RECENTLY UPDATED INFORMATION. DEALERS, OWNERS, USERS, OPERATORS, LESSORS AND LESSEES MUST ADHERE TO THESE UPDATED STANDARDS. ATTENTION: DO NOT ATTEMPT TO OPERATE THIS VERSALIFT UNTIL YOU HAVE READ AND UNDERSTOOD ALL INFORMATION IN BOTH OPERATOR’S AND SERVICE MANUALS, PROVIDED WITH EACH VERSALIFT.
- Page 3 MANUFACTURING COMPANY OWNER’S WARRANTY The Versalift Aerial Platform Lift is engineered and designed to perform as stated on published specifications. Only quality material and workmanship are used in the manufacture of this product. With proper installation, regular maintenance, and periodic repair service, the equipment will provide excellent service.
-
Page 5: Table Of Contents
Option Specifications ......................... 3-2 Dimensional Specifications ......................3-5 Vehicle Specifications ........................ 3-9 Operation Section 4 Positioning the Versalift for Operation ..................4-1 Aerial Lift Operations ......................... 4-2 Cab Control Operation ........................ 4-4 Lower Control Operation ......................4-4 Upper Control Operation ......................4-5 Storing the Aerial Lift ........................ -
Page 7: Introduction
Responsibilities. ADDITIONAL MANUAL FEATURES Detailed information for the maintenance inspection and service of the Versalift aerial device can be found Danger, caution, and warning notes are indented, in the accompanying Service Manual. Should further bold faced, and separated from the regular text to... - Page 8 Figure 1.1 Model TEL-29-N/NE Nomenclature TEL-29-N/NE...
- Page 9 OTHER PERSONNEL is dependent on those decisions. FAILURE TO COMPLY with your REQUIRED RESPONSIBILITIES in the use and operation of the Aerial Device could result in DEATH OR SERIOUS INJURY. DANGER: READ AND UNDERSTAND THIS MANUAL BEFORE ATTEMPTING TO OPERATE THIS AERIAL DEVICE. TEL-29-N/NE...
-
Page 10: Decals
It is extremely important for the operator to be thoroughly familiar with the Versalift aerial device. Study the information in this manual and the Versalift controls until both are completely mastered. Then go to a large, open area to practice using the aerial lift. - Page 11 TEL-29-N/NE...
-
Page 12: Think Safety
THINK SAFETY The following sketches illustrate some of the unsafe situations that might occur during the use or opera- tion of the Versalift. Some of these safety problems are very basic and as a result are often taken for granted. - Page 13 Avoid dropping tools. Use a hand line to raise or lower tools to/from the platform. Never use the VERSALIFT as a crane Stow the booms securely before moving the truck. Stand only on the platform floor.
-
Page 14: Additional Safety Considerations
These conditions require immediate medical attention. Hydraulic oil is flammable. Avoid any contact between hydraulic oil and sources of high heat or open flames. Bodily contact with hot hydraulic oil can cause serious burns which require immediate medical attention. TEL-29-N/NE... -
Page 15: Specifications
A double acting cylinder, equipped with a without prior notifications due to option selections. counter balance holding valve provides boom elevation. The Versalift TEL-29-N aerial device provides a side A boom support cradle and a ratchet-type boom tie mounted single man platform. The Versalift TEL-29- down strap are included. -
Page 16: Option Specifications
SLOPE INDICATORS – Slope indicators are required cylinder base to prevent boom creep during travel or on Versalift units and supplied by Time Manufacturing uncontrolled movement in case of hydraulic hose Co. Slope indicators shall be installed to indicate failure. - Page 17 A 5,500 or 7,000 watt engine generator with extended shaft driving the hydraulic pump is available. UPPER CONTROL COVER - A hinged cover protects the upper controls from exposure to the An electric motor drive for the hydraulic pump is also weather (TEL-N only). available. TEL-29-N/NE...
- Page 18 REMOTE LOWER CONTROL - This option allows remote operation of the aerial device. The remote lower controls override the upper controls and are housed in a weather-resistant metal box. TEL-29-N/NE...
-
Page 19: Dimensional Specifications
TEL-29-N DIMENSIONAL SPECIFICATIONS Note: All dimensions and angles are nominal, based on 40 in. (1.02 m) frame height with bottom of pedestal mounted 5 in. (127 mm) above the top of the frame. Horizontal Reach ......................20 ft. 8 in. (6.30 m) Maximum Rated Platform Capacity .................. - Page 20 TEL-29-N/NE...
- Page 21 Working Height ....................... 35 ft. 9 in. (10.9 m) Stowed Travel Height ..................... 10 ft. 9 in. (3.28 m) Weight of Lift w/ Mounting hardware ................. 1,510 lbs. (685 kg) Ambient Temperature Range for Structural Integrity ....... -40°F (-40°C) to 125°F (52°C) TEL-29-NE Platform Travel TEL-29-N/NE...
- Page 22 TEL-29-N/NE...
-
Page 23: Vehicle Specifications
TEL-29-N/NE VEHICLE SPECIFICATIONS Recommended Chassis Mounting With Torsion Bar: Minimum Cab to Rear Axle Dimension .................. 60 in. (1.52 m) Minimum Frame Section Modulus ..................5.4 in (88 cm Min. Frame Resisting Bending Moment ............195,000 in.-lbs.(22035 N-m) Approximate Curb Weight for Stability ................7,500 lbs. (3410 kg) GAWR ........................ - Page 24 3-10 TEL-29-N/NE...
- Page 25 TEL-29-N/NE 3-11...
-
Page 27: Operation
This section describes proper positioning of the Activate the Versalift power system with the Versalift aerial lift so that it will be as stable and useful toggle switch on the dashboard of the truck. A as possible. The information in this section includes... -
Page 28: Aerial Lift Operations
STOP THE DIRECTION OF LIFT TRAVEL pedestrians and motorists. Never work outside SUDDENLY AND AVOID REACHING THE END OF the boundaries. BOOM RANGE AT EXCESSIVE SPEEDS. STRUCTURAL DAMAGE OR INSTABILITY MAY RESULT CAUSING DEATH OR SERIOUS INJURY. TEL-29-N/NE... - Page 29 COMPONENTS MAY CONDUCT ELECTRICITY To deactivate the platform lock, pull the pin out of RESULTING IN DEATH OR SERIOUS INJURY. the boom and rotate it clockwise until the pin stays disengaged. If the pin is under load, it may be TEL-29-N/NE...
-
Page 30: Cab Control Operation
The toggle switch is used to energize or de-energize the Versalift system and the red light indicates when the system is energized. POWER-TAKE-OFF(PTO) (If So Equipped.) - The... -
Page 31: Upper Control Operation
To speed up the engine from the lower controls, the control switch in the direction of the arrow, with move the throttle control toggle to the engage position. the master control switch engaged, causes the aerial lift to move in the corresponding direction. Lift TEL-29-N/NE... - Page 32 The Versalift and returns to the neutral position. power switch must be activated and the truck ignition must be in the “Run” position before this button can start the truck.
-
Page 33: Storing The Aerial Lift
GFCI RECEPTACLE - 120V POWER (Standard on G model) - A GFCI receptacle is placed at the platform for powering 120V accessories. TEL-29-N/NE... -
Page 35: Emergency Operation
Figure 5.3. Slowly turn the setscrew clockwise (using 5/32 in. hex) until movement begins. Stay clear of the boom as it travels down. To stop boom movement, turn the TEL-N/NE Hydraulic Controls at Turret set screw counterclockwise. Figure 5.1 TEL-29-N/NE... - Page 36 HIGH HEAT OR OPEN FLAMES. DEATH OR upper controls. SERIOUS INJURY MAY RESULT FROM A FIRE. DANGER: THE TRUCK TRANSMISSION WARNING : CONTACT WITH HOT MUST BE IN NEUTRAL OR PARK BEFORE USING HYDRAULIC OIL MAY CAUSE SERIOUS BURNS THE ENGINE START/STOP. STARTING THE TEL-29-N/NE...
- Page 37 If the control valve will not return to neutral, the aerial lift can be lowered by using the holding valves. RESPONSIBILITIES AFTER EMERGENCY OPERATION: After any emergency situation it is the responsibility TEL-29-N/NE...
-
Page 39: Daily Visual Inspection
“Critical Fasteners” drawing in this section. All major not repaired the oil in the reservoir will be depleted sections of the Versalift are bolted together and it is and pump damage may occur. vital that these bolts remain tight. Visually inspect all the bolts for signs of relative movement. - Page 40 Manual for these components. DECALS - Identification, operational, and instructional decals are installed at numerous locations on the Versalift. These decals must be replaced if they become lost, damaged, or illegible. Refer to the “Decal Placement” illustration in this section.
- Page 41 DAILY VISUAL CHECKLIST AND RECORD MAINTENANCE AND INSPECTION VERSALIFT TEL-29-N SERIAL NO.______________ VEHICLE NO.______________ Fill in date and initial boxes when each check is made. Refer to Daily Visual Inspection in this section for complete description of checks. Additional copies of this form may be obtained from Time Manufacturing Company.
- Page 42 TEL-29-N/NE...
- Page 43 DAILY VISUAL CHECKLIST AND RECORD MAINTENANCE AND INSPECTION VERSALIFT TEL-29-NE SERIAL NO.______________ VEHICLE NO.______________ Fill in date and initial boxes when each check is made. Refer to Daily Visual Inspection in this section for complete description of checks. Additional copies of this form may be obtained from Time Manufacturing Company.
- Page 44 TEL-29-N/NE...
- Page 45 TEL-29-N/NE...
- Page 46 TEL-29-N/NE...
