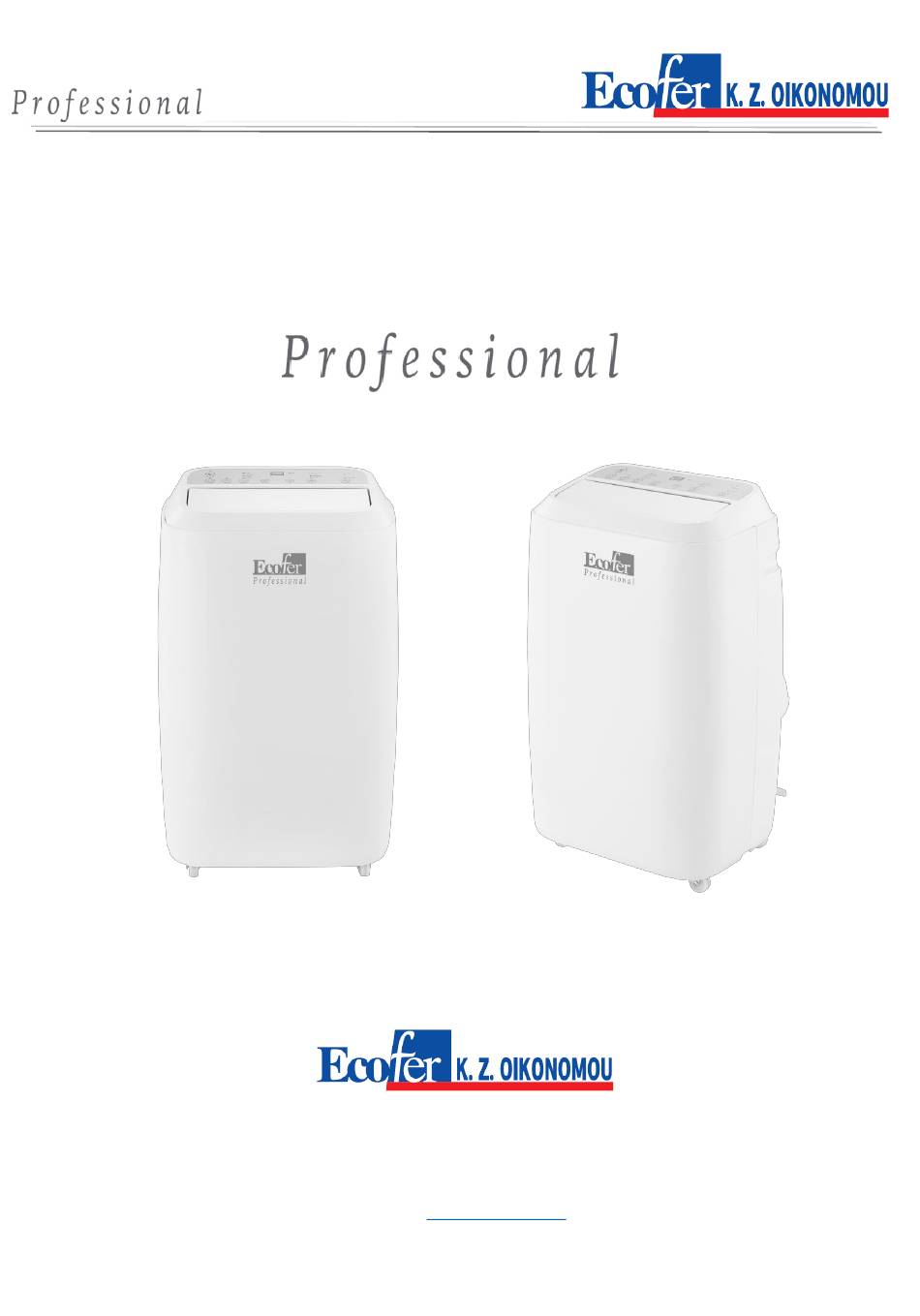

- Page 1 User manual User Manual of Portable Air-conditioners Please read this user’s manual carefully to ensure proper use, maintenance and installation Ithomis Str. 6, Chalandri, GR-15231 Athens - Greece Τel: +30210 6715510 / +30211 7007269/ +30211 7007270 Fax: +302106542877 Website: www.ecofer.com.gr...
-
Page 2: Table Of Contents
User manual Table of contents Safety instructions ................................1 Name of parts ..................................4 Accessories ................................... 4 Appearance and function of control panel .......................... 5 Appearance and function of remote controller ........................5 Operation introduction ................................ 6 Installations explanations..............................9 Maintenance explanations .............................. -
Page 3: Safety Instructions
User manual Safety instructions VERY IMPORTANT! Please do not install or use your mobile air conditioner before you have carefully read this manual. Please keep this instruction manual for an eventual product warranty and for future reference. The appliance is for indoor use only. Do not use the unit on a socket under repairs or not installed properly Do not use the unit, follow these precautions: A: Near to source of fire. - Page 4 User manual to heat generation. 22. Unplug the unit if strange sounds, smell, or smoke comes from it. Warning • Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer. • The appliance shall be stored in a room without continuously operating ignition sources (for example: open flames, an operating gas appliance or an operating electric heater.
- Page 5 User manual REFRIGERANT (CE) N 842/2006: This air conditioner contains the refrigerant R290. The amount of refrigerant is less than 1kg, and is in a closed cooling circuit. The coolant does have zero ozone depletion potential, but is a so-called greenhouse gas under the Kyoto Protocol and may thus contribute to global warming, if it is released to the atmosphere.
-
Page 6: Name Of Parts
User manual Name of parts Accessories... -
Page 7: Appearance And Function Of Control Panel
User manual After unpacking, please check whether the above-mentioned accessories are included, and check their purposes in the installation introduction in this manual. Appearance and function of control panel Appearance and function of remote controller 1. POWER On/Off switch 2. MODE MODE selector 3. -
Page 8: Operation Introduction
User manual Operation introduction Before starting operations in this section: Find a place where there is power supply nearby. Install the exhaust hose, and adjust the window position well. Insert the power cord into a grounded AC220~240V/50Hz socket; Press the POWER button to turn on the air-conditioner. 1.Before using Notice: Operation temperature range:... - Page 9 User manual Checkup whether the exhaust hose has been mounted properly. Cautions for cooling and dehumidifying operations: When using functions on cooling and dehumidifying, keep an interval of at least 3 minutes between each POWER. Power supply meets the requirements. The socket is for AC use.
- Page 10 User manual 7. Timer operation Timer ON setting: When the air-conditioner is OFF, press the “Timer” button and select a desired ON time through the temperature and time setting buttons. “Preset ON Time” is displayed on the operation panel. ON time can be regulated at any time in 0-24 hours. Timer OFF setting When the air-conditioner ON, press “Timer”...
-
Page 11: Installations Explanations
User manual Installations explanations 1 Installation Explanations: A removal air-conditioner shall be installed in the flat and empty place all around. Don’t block the air outlet, and the required distance around should be at least 30cm. Should not be installed in dry cleaner. Socket wiring should be in accordance with the local electric safety requirements. -
Page 12: Maintenance Explanations
User manual Internal Tank Water Full Alarm Function The inner water tank in the air-conditioner has one water level safety switches, it controls water level. When water level reaches an anticipated height, the water full indicator lamp lights up. (If water pump is damaged, when the water is full, please remove the rubber blockage at the bottom of unit, and all water will drain outside.) Maintenance explanations Declaration:... -
Page 13: Troubleshooting
User manual Troubleshooting Troubles Possible Causes Suggested Remedies 1. UNIT DOES NOT START WHEN - Water full indicator lamp blinks, and Dump the water out of the water PRESSING POWER BUTTON water tank is full. tank. - Room temperature is higher than the Reset the temperature setting temperature. -
Page 14: Recycling
User manual Recycling This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. - Page 15 User manual Ithomis Str. 6, Chalandri, GR-15231 Athens - Greece Τel: +30210 6715510 / +30211 7007269/ +30211 7007270 Fax: +302106542877 Website: www.ecofer.com.gr...
