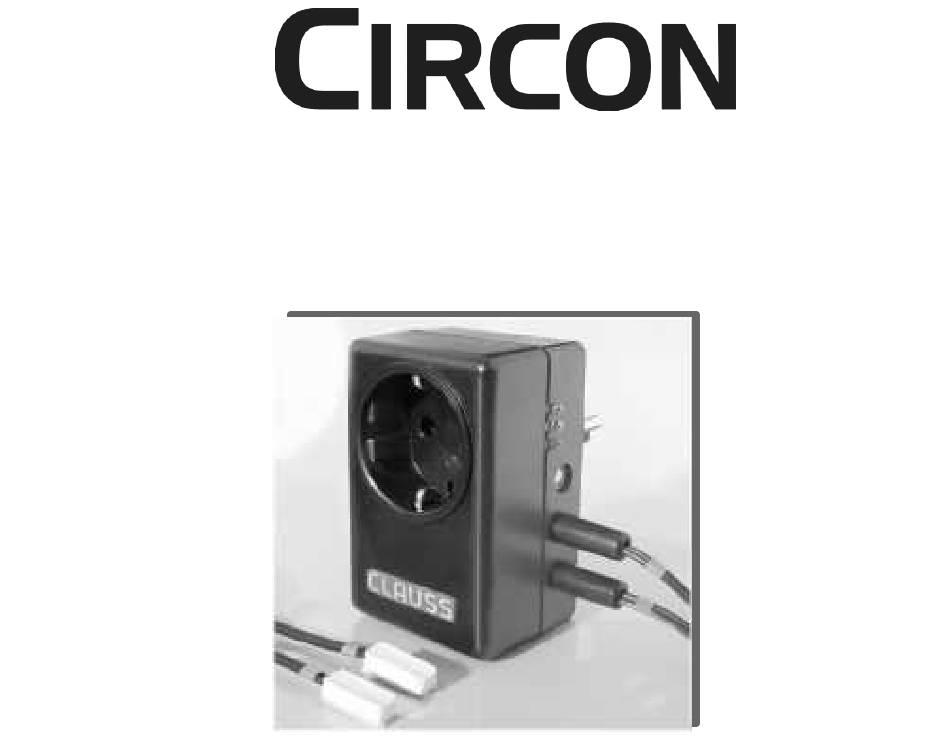

- Page 1 Der elektronische Zirkulationscontroller The electronic circulation controller Le dispositif de contrôle électronique de circulation De elektronische circulatiecontroller...
- Page 2 Sparprogramm/Economy program/Programme économique/Energiebesparend programma: Position / Positie max. Laufzeit / max. running time / 5 min 10 min 15 min 20 min 30 min Temps de fonctionnement maximal / Maximale inschakelduur Automatikprogramm/Automatic program/Programme automatique/Automatisch programma: Position / Positie max. Laufzeit / max. running time / 5 min 10 min 15 min...

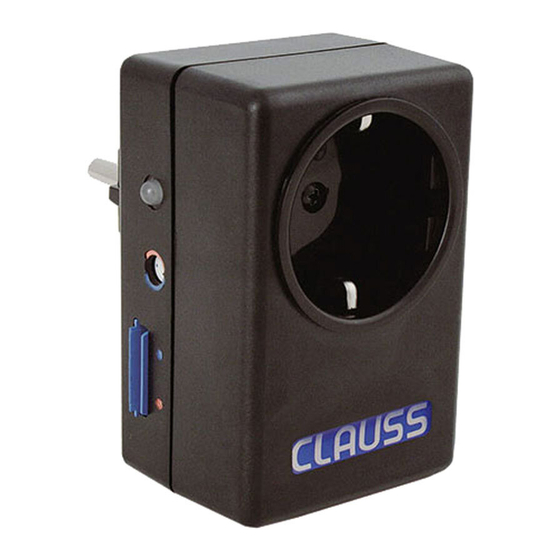

- Page 3 Scope of supply Basic device with 2 temperature sensors, Cable fastener, adhesive fabric tape, Operating Manual Functional description The circulation controller CIRCON is a modern, microcontroller-controlled device for activating the circulation of hot water in a heating system depending on consumption. Two temperature sensors monitor the changes in the flow and return temperatures in the circulation circuit.
- Page 4 Operating mode selector switch (works setting = 7, operation with screwdriver) (_ page 2): Economy program: Function: Circulation starts after water has been withdrawn for a short time. Advantage: Maximum energy saving effect. Disadvantage: Hot water not immediately available at any time. Important: Never let the water run until hot water comes out of the tap.
- Page 5 For an optimum utilisation of the advantage offered by the circulation controller, do not turn on any hot- water tap unless you do not want to wait for the hot water to come (e.g. if you just wish to briefly wash your hands).
- Page 6 For systems including different materials, the following applies: Prefer metal to plastics and thin-walled to thick-walled parts for fitting the sensors.(Further useful hints can be found at www.dr-clauss.de/circon). The measuring point in the return pipe is not critical, but it should be located as far away as possible from the hot-water storage tank.
- Page 7 Please mind the following: ♦ Use only the adhesive tape supplied for this purpose for fastening the sensors! Do not use cable fasteners or any other adhesive tapes! ♦ Do not tear the silicone sheath. Do not expose to tensile forces! ♦...
-
Page 8: Troubleshooting
Maintenance The device is completely maintenance-free. Use exclusively a dry cleaning cloth for cleaning. Solvents or sharp-edged tools must not be used. Troubleshooting Fault Possible cause Remedy • • After the pump switches on, Let controller operate • Fault in the piping system: the time it takes till hot water without return sensor: No optimum cross-... - Page 9 Fault Possible cause Remedy tion phase is acceptable) • • • Pump switches on after Legionella protection System operates properly prolonged standstill without feature has become - no changes required any noticeable cause activated, or self- calibration feature has tripped •...
- Page 10 Fault Possible cause Remedy storage tank • • • No LED display Program run has been Disconnect basic device disturbed by short for a few seconds from • Pump does not start although disturbances in the power socket outlet. yellow LED lights supply grid.
-
Page 11: Safety Hints
Safety hints The circulation controller has been shipped from the manufacturer's works in a condition meeting all safety requirements. To ensure a safe operation, observe the following safety hints. We do not accept any liability for damage to property or personal injury caused by inappropriate handling and operation or non- observance of these safety hints. - Page 12 that they do not cause a tripping hazard or that persons may not get caught. After a sudden temperature change, e.g. after the device has been transported or stored, allow the device to acclimatise for at least 15 minutes before putting it into operation. Operation Make sure that the enclosure and insulation are neither damaged nor destroyed.
- Page 13 This warranty does also not cover minor defects which have only an insignificant impact on the value or serviceability of the device. Manufacturer: Dr. Clauß Bild- und Datentechnik GmbH Zwönitzer Gasse 35 D-08297 Zwönitz www.dr-clauss.de Fax: 037754 - 507 – 28 eMail: mail@dr-clauss.de...
