Installation

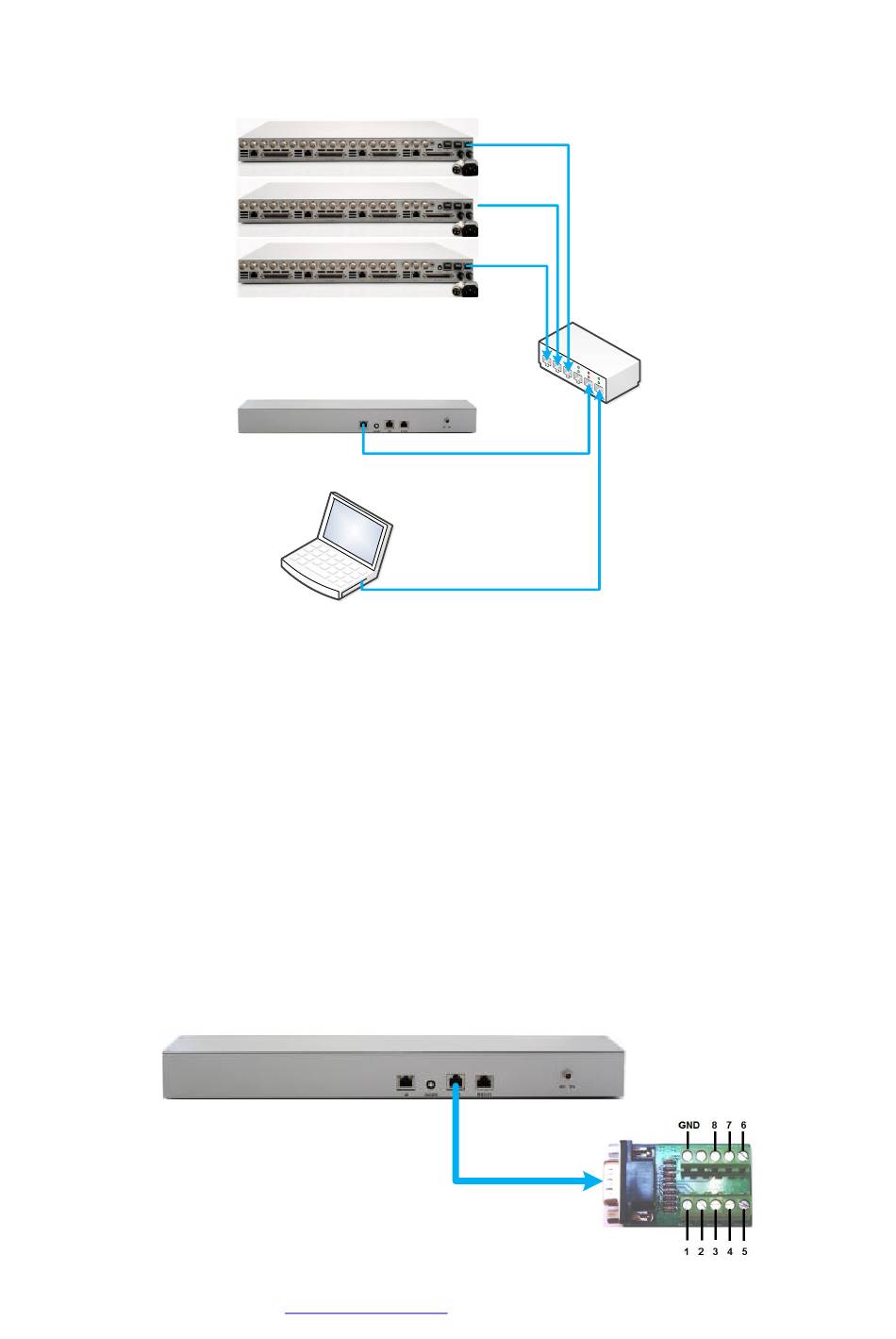

Ethernet Wiring
Apantac Multiviewers
LAN
CP-16
Configuration PC
GPI/O Wiring
Connect the GPI port to the DB9 breakout wiring block using the RJ50-DB9 adapter cable.
(NOTE: The RJ50 connector has 10 contacts and a metal shielded end.)
GPI inputs can be provided by either relay contact closures or open-collector circuits of external
equipment. GPI connections must include the ground (GND) reference. The input is
activated when it is brought to the ground reference level.
GPO outputs provide a 5volt output level from the CP-16 when active, and ground level when
inactive.
RJ50-DB9
Adapter Cable
