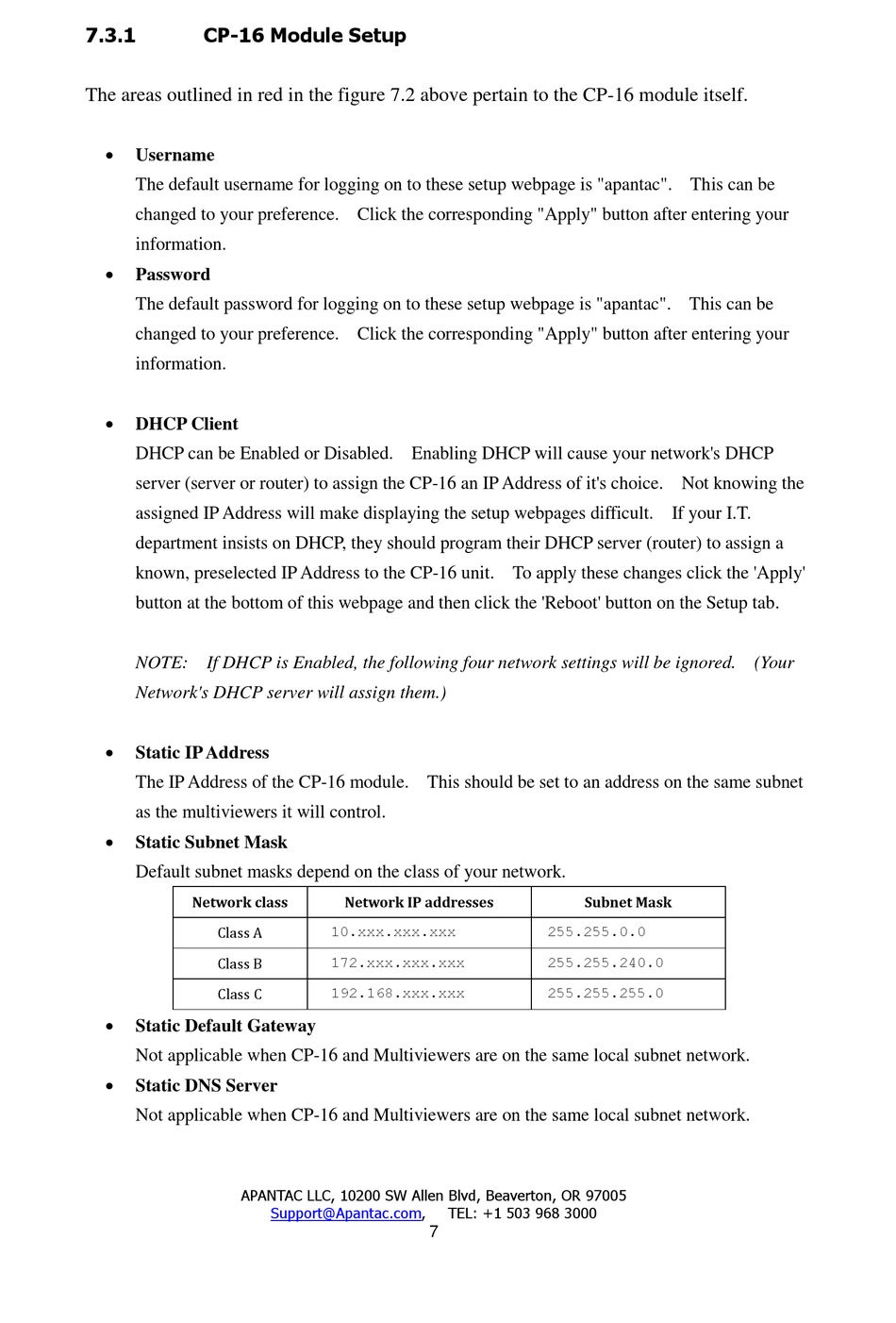

7.3.1 CP-16 Module Setup
The areas outlined in red in the figure 7.2 above pertain to the CP-16 module itself.

Username
The default username for logging on to these setup webpage is "apantac". This can be
changed to your preference. Click the corresponding "Apply" button after entering your
information.

Password
The default password for logging on to these setup webpage is "apantac". This can be
changed to your preference. Click the corresponding "Apply" button after entering your
information.

DHCP Client
DHCP can be Enabled or Disabled. Enabling DHCP will cause your network's DHCP
server (server or router) to assign the CP-16 an IP Address of it's choice. Not knowing the
assigned IP Address will make displaying the setup webpages difficult. If your I.T.
department insists on DHCP, they should program their DHCP server (router) to assign a
known, preselected IP Address to the CP-16 unit. To apply these changes click the 'Apply'
button at the bottom of this webpage and then click the 'Reboot' button on the Setup tab.
NOTE: If DHCP is Enabled, the following four network settings will be ignored. (Your
Network's DHCP server will assign them.)

Static IP Address
The IP Address of the CP-16 module. This should be set to an address on the same subnet
as the multiviewers it will control.

Static Subnet Mask
Default subnet masks depend on the class of your network.
Network class
Class A
Class B
Class C

Static Default Gateway
Not applicable when CP-16 and Multiviewers are on the same local subnet network.

Static DNS Server
Not applicable when CP-16 and Multiviewers are on the same local subnet network.
APANTAC LLC, 10200 SW Allen Blvd, Beaverton, OR 97005
Network IP addresses
10.xxx.xxx.xxx
172.xxx.xxx.xxx
192.168.xxx.xxx
Support@Apantac.com,
Subnet Mask
255.255.0.0
255.255.240.0
255.255.255.0
