Summary of Contents for Hausted ViC329

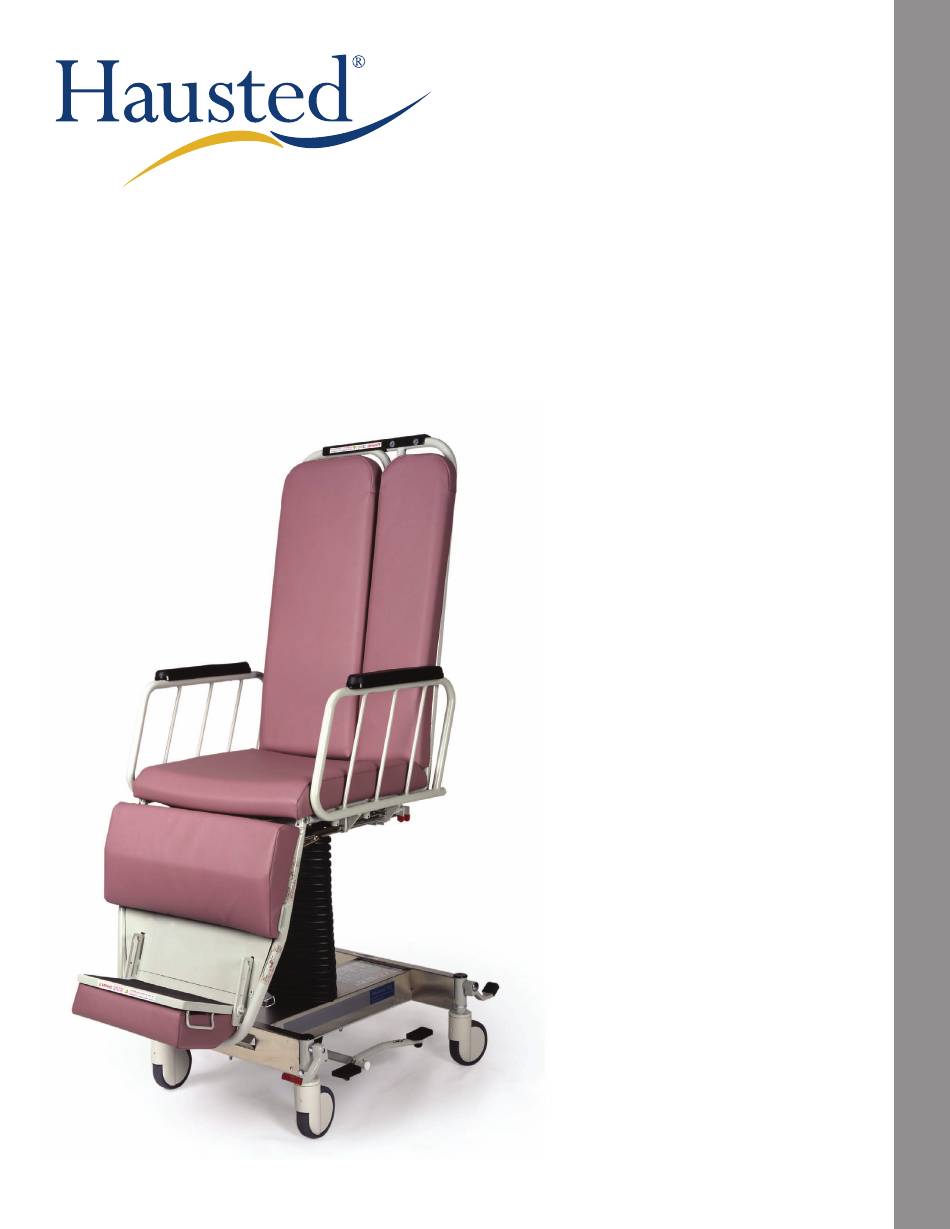

  • Page 1 Operating Manual Hausted Video imaging Chairs ® Models: ViC329 & ViC429 GFH1300117RevA13 GF HEALTH PRODUCTS, INC.
  • Page 2 WARNING - COPYING PROHIBITED this manual is protected by Federal Copyright law, which provides for damages of up to uSD $20000, as well as criminal fines and imprisonment, for unauthorized copying.
  • Page 3 FrOM GF HEALTH PRODUCTS, INC. advisory this manual contains important information on proper use and maintenance of the Hausted® Video a listing of the safety precautions to be observed imaging Chair (ViC). all personnel involved in the when operating and servicing this equipment can be use and maintenance of this equipment must carefully found in Section 1 of this manual.
  • Page 4 Manufactured by: GF Health Products, Inc. 336 Trowbridge Drive Fond du Lac, WI 54937 678.291.3207 Main 770.368.2386 Fax www.Hausted.com Class 1 equipment type B equipment equipment not suitable for use in the presence of a flammable anesthetic mixture with air or oxygen or nitrous oxide.
  • Page 5: Table Of Contents

    taBle OF COntentS 1 listing of warnings and Cautions ........................ 2 uncrating instructions ............................3 Operating instructions ............................3.1 Braking and Steering ..............................3-3 3.1.1 applying the Brakes ..............................3-3 3.1.2 releasing the Brakes ...............................3-3 3.1.3 applying the Steering lock ...........................3-3 3.1.4 releasing the Steering lock ..........................3-3 3.2 top adjustment ................................3-4 3.2.1 raising the top ................................3-4 3.2.2 lowering the top ..............................3-4...
  • Page 6: Listing Of Warnings And Cautions

    liSting OF warningS anD CautiOnS the following is a listing of the safety precautions patient entry, egress and transfer from the ViC which must be observed when operating and servic- chair should always be from the center side rail ing this equipment. warningS indicate the potential location with the side rail in the down position for danger to personnel, and CautiOnS indicate the and brakes locked.
  • Page 7: Uncrating Instructions

    - leave carton intact. leave the equipment in the receiving your Hausted equipment has been carefully packed area until inspection is complete. at our manufacturing plant to ensure safe shipment CautiOn - pOSSiBle eQuipMent to your medical facility.
  • Page 8: Operating Instructions

    Operating inStruCtiOnS warningS–perSOnal inJury HaZarD: J. the brakes should always be applied when patient is a. the ViC chair has a warning label on the back not being transported. of the back section stating: Maximum patient weight 147 kilograms (325 lbs.). K.
  • Page 9 Operating inStruCtiOnS See warning – C & H See warning – a See warning – F See warning – i 22" 22" 50" 70.5" See warning – B, F, H & i See Section 3.2.3 See warning – F See Section 3.5 See warning –...
  • Page 10: Braking And Steering

    Operating inStruCtiOnS 3.1 BraKing anD Steering OperatiOn warning - perSOnal inJury HaZarD: patient entry, egress and transfer from the ViC chair should always be from the center side rail location with the side rail in the down position Figure 3 - 1 and brakes locked.
  • Page 11: Top Adjustment

    Operating inStruCtiOnS 3.2 tOp aDJuStMent warning - perSOnal inJury HaZarD: when not in use, do not leave the ViC chair in a recline position. at no time should the patient be permitted Figure 3 - 4 to enter or exit from the ends of the ViC chair when in partial or total recline position.
  • Page 12: Independent Leg Section

    Operating inStruCtiOnS 3.3 inDepenDent leg SeCtiOn warning - perSOnal inJury HaZarD: the ViC chair has a warning label on the top of the base cover that states: when chair is in the non-transport mode: patient must remain fully Figure 3 - 8 upright;...
  • Page 13: Adjustable Footrest

    Operating inStruCtiOnS 3.4 aDJuStaBle FOOtreSt warning - perSOnal inJury HaZarD: the ViC chair has a warning label on the top of the base cover that states: when chair is in the non-transport mode: patient must remain fully Figure 3 - 13 upright;...
  • Page 14: Hinging Rails

    Operating inStruCtiOnS 3.5 Hinging railS warning - perSOnal inJury HaZarD: patient entry, egress and transfer from the ViC chair should always be from the center side rail location with the side rail in the down position Figure 3 - 17 and brakes locked.
  • Page 15: Vic Chair Rotating Instructions

    Operating inStruCtiOnS 3.6 ViC CHair rOtating inStruCtiOnS warning - perSOnal inJury HaZarD: when not in use, do not leave the ViC chair in a recline position. the patient should be placed in a fully rear View upright position with chair in low height when transporting patient.
  • Page 16: Non-Transport Mode (Anterior/Posterior Position)

    Operating inStruCtiOnS 3.6 ViC CHair rOtating inStruCtiOnS warning - perSOnal inJury HaZarD: when chair is in the nontransport mode: patient must remain fully upright; patient must never be reclined; patient must never Figure 3 - 21 be left unattended. the brakes should always be applied when patient is not being transported.
  • Page 17: Transport Mode (Lateral Position)

    Operating inStruCtiOnS 3.6 ViC CHair rOtating inStruCtiOnS warning - perSOnal inJury HaZarD: the ViC chair is not intended to replace a stretcher or a gurney. Figure 3 - 23 the patient should be placed in a fully upright position with chair in low height when transporting patient.
  • Page 18: Patient Transfer Instructions

    Operating inStruCtiOnS 3.7 patient tranSFer inStruCtiOnS Definition of terms used in instructions warningS–perSOnal Below (See Figure 3-25) inJury HaZarD: • Maximum patient weight 147 kilograms transfer side (325 lbs.). Secondary Patient Device the transfer side will always be located on the attendants right hand side, •...
  • Page 19 Operating inStruCtiOnS 3.7 patient tranSFer inStruCtiOnS Patient Transfer 1. release patient restraint straps 2. transfer patient. transfer of patient from a Secondary Device to ViC Chair Follow same procedure as in “transferring from ViC chair to a secondary device” above except: you must verify that the ViC chair is positioned so that the patients abdomen is in line with the chair seat before attempting to transfer a patient to the ViC chair, otherwise tipping may occur.
  • Page 20: Preventive Maintenance For The User

    NOTE: For more detailed information, please contact GF Health Products, Inc. at 678.291.3165. NOTE: In addition to the User Preventive Maintenance, a more detailed Preventive Maintenance Program is also required to keep the equipment in good working order. This Preventive Maintenance Program is found on our website, at www.Hausted.com. GFH1300117RevA13...
  • Page 21: Optional Accessories

    OptiOnal aCCeSSOrieS number Description Sa0636-00 pediatric positioner (36"x7") Sa0637-00 pediatric positioner (48" x 10") Sa0638-00 pediatric positioner (60" x 13") Sa0658 Foam wedge, patient positioning Sa0671-00 Dorsocervical pillow, Foam Sa0716-00 X-wide restraint Straps with Velcro Sa0717-00 universal Head restraint Sa0721 pushbar (removable, Stainless Steel - Comes Standard) Sa4001-00 ViC Back extension assembly ViC429 Only (mfg after 4/98)
  • Page 22 illuStrateD partS BreaKDOwn Figure 6 - 1. ViC BaSe aSSeMBly 63 64 63 64 Figure 6 - 1. ViC BaSe aSSeMBly...
  • Page 23 061261 BellOwS, apC 066844 BraCKet, Bellows 000849 tie, Cable 075856 laBel, ViC Chair 075843 laBel, Hausted product 066817 COVer, Center Base 061287 angle, Bellows Mounting 061167 VelCrO, Hook 4" 061166 VelCrO, pile 5” 065129 Clip, Bellows...
  • Page 24 illuStrateD partS BreaKDOwn Figure 6 - 1. ViC BaSe aSSeMBly item no. part no. Description units per assembly 000794 riVet, .188 X .250 pop 031416 SCrew, #10 X 1/2 type a Self tapping 066848 aSSeMBly, Seat pivot 066850 plate, nylatron guide 066846 aSSeMBly, Base pivot 066851...
  • Page 25 illuStrateD partS BreaKDOwn Figure 6 - 2. Seat aSSeMBly Figure 6 - 2. Seat aSSeMBly...
  • Page 26 illuStrateD partS BreaKDOwn Figure 6 - 2. Seat aSSeMBly item no. part no. Description units per assembly 066864 aSSeMBly, Seat Section 031010 SCrew , Hex Head Cap, 5/16-18 x 3/4" long 066865 aSSeMBly, Seat plunger 031057 nut, lock, 5/16-18 066852 BlOCK, pivot Support 066854 plate, glide Support...
  • Page 27 illuStrateD partS BreaKDOwn Figure 6 - 3. FOOt SeCtiOn Figure 6 - 3. FOOt SeCtiOn...
  • Page 28 illuStrateD partS BreaKDOwn Figure 6 - 3. FOOt SeCtiOn item no. part no. Description units per assembly 068035 aSSeMBly, Foot Section 031036 SCrew, phillips Oval Head, 5/16-24 x 15/16 long 061358 laBel, Operating 011318 pin, Clevis, 3/8 x 1-7/16: long 030287 nut, pal, 3/8"...
  • Page 29 illuStrateD partS BreaKDOwn Figure 6 - 3. FOOt SeCtiOn item no. part no. Description units per assembly 061344 ring, retaining, 5103-31 031137 ring, retaining, 5103-37 061339 SHaFt, Support 031111 pin, Spring, 1/8 x 5/8" 000849 tie, Cable 061312 CaBle, left plunger 061311 CaBle, right plunger 061310...
  • Page 30 illuStrateD partS BreaKDOwn Figure 6 - 4. BaCK SeCtiOnS removable push handles – place in wells on back of back section. Kit part number Sa0721 nOte: For Model 429 ViC Chair, mount gas spring in this location. Figure 6 - 4. BaCK SeCtiOnS 6-11...
  • Page 31 illuStrateD partS BreaKDOwn Figure 6 - 4. BaCK SeCtiOnS item no. part no. C Description units per assembly Back sections, Model 329 Back Sections, Model 429 066884 aSSeMBly, Back Section – 031036 SCrew, phillips Oval Head, 5/16-24 x 15/16" long 061157 BOlt, Shoulder, 3/8 Dia.
  • Page 32 illuStrateD partS BreaKDOwn Figure 6 - 4. BaCK SeCtiOnS item no. part no. C Description units per assembly 075279 pin, locating – 031118 pin, Spring, 3/16 x 1.00 lg. – p75280 SHeet, ViC Back extension – 075281 welDMent, lower lock Channel –...
  • Page 33 For additional information on this Hausted product or this warranty, please contact a Graham-Field authorized Distributor. NOTES: 1) Additional terms and conditions may apply.
  • Page 34 www.grahamfield.com...
