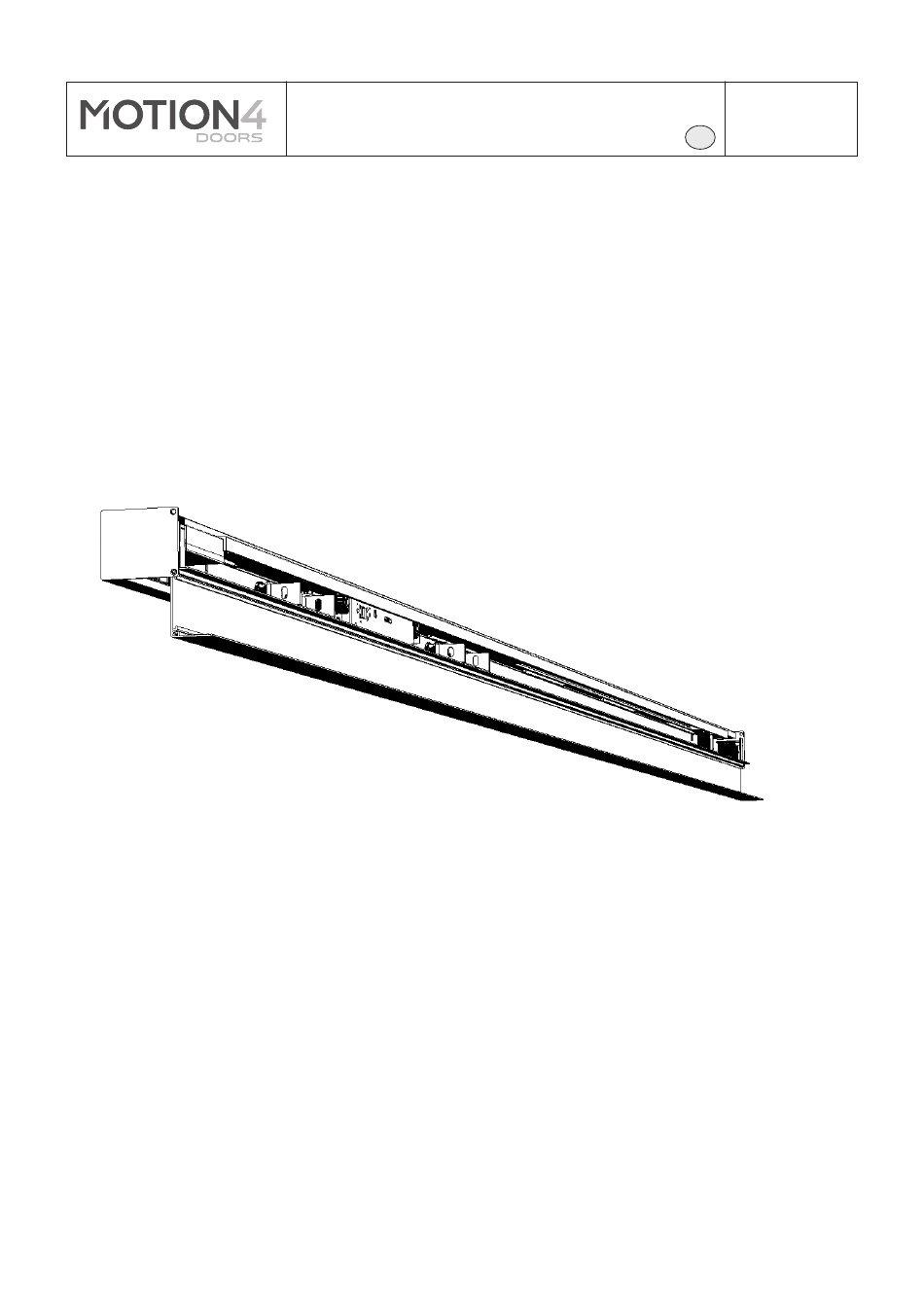

- Page 1 EvoDrive+ maintenance manual v1.0.0 EvoDrive+ Maintenance manual Part 4 of the Installation, User and Maintenance Manual This section must be given to the Owner of the automatic door, and be always available for the Maintenance technician...
- Page 2 EvoDrive+ maintenance manual v1.0.0 EVODRIVE AUTOMATIC GUIDE FOR INTERIOR SLIDING DOOR ORIGINAL MANUAL PART 4 - Maintenance Manual INDEX 1. Introduction 2. EvoDrive+ component overview 3. Technical specifications 4. Basic Troubleshooting 5. Detailed Troubleshooting 6. Maintenance interval 7. Maintenance record sheet 1.
- Page 3 EvoDrive+ maintenance manual v1.0.0 2. EVODRIVE COMPONENT OVERVIEW 1 Main profile 2 Linear motor type LSMPM 3 Leaf trolleys 4 Power supply circuit 5 I/O accessories control board 6 Motor driver 7 Permanent neodymium magnets 8 End stops 9 Side covers 10 Aluminium cover with brush seal...
-
Page 4: Technical Specifications
EvoDrive+ maintenance manual v1.0.0 3. TECHNICAL SPECIFICATIONS Mechanical features Main features Clear opening width lateral leaf (mm): 750 - 1400 Clear opening width double leaf (mm): 1500 - 2800 Operator length lateral leaf (mm): 1650 - 2850 Operator length double leaf (mm): 3100 - 5700 Opening speed: adjustable between 200 and 800 mm/s Closing speed: 200 mm/s EN16005 “Low Energy”... -
Page 5: Basic Troubleshooting
EvoDrive+ maintenance manual v1.0.0 4. BASIC TROUBLESHOOTING Situation/Problem Solution Obstruction detection - Check and remove obstructions in the opening travelling area. during the closing cycle - Check that leaf can be moved manually and smoothly. - Verify that the final adjustment has been made, see p. 19 of EvoDrive+ installation manual. -
Page 6: Detailed Troubleshooting
EvoDrive+ maintenance manual v1.0.0 5. DETAILED TROUBLESHOOTING Motor signaling errors All the errors codes are showed blinking in the motor display Error 1 - Code 01 blinking: The system has detected an overcurrent, restart the auto- matic guide and if the error persists contact your dealer indicating the error code. Error 2 - Code 02 blinking: The system has detected an encoder error, verify that the motor has magnets during the entire journey, if not, restart the automatic guide and if the error persists contact your dealer indicating the error code. - Page 7 EvoDrive+ maintenance manual v1.0.0 Error 5 - Code 05 blinking: The system has detected an overvoltage error. Error 6 - Code 06 blinking: The system has detected one error in the Bluetooth com- munication between the IO-Acc and the driver. vii.
- Page 8 EvoDrive+ maintenance manual v1.0.0 I/O ACCESORIES ELECTRONICS LED’s State Situation / Problem Solution Sen. Exterior LEDs OFF When activating interior sensor, Ext. - Check the wiring connections of all Sen. Interior Sensor or Safety sensor no orange sensors. But. Exterior led turn on.
-
Page 9: Maintenance Intervals
EvoDrive+ maintenance manual v1.0.0 6. MAINTENANCE INTERVALS In the following chart we show the tasks and intervals of the interventions, that are required to periodically execute on the EvoDrive+ automatic guide, which depend on the frequency or the number of cycles: Task Frecuency Number of cycles... -
Page 10: Maintenance Record Sheet
EvoDrive+ maintenance manual v1.0.0 7. MAINTENANCE RECORD SHEET Date: (name of the service technician) Made by: Comples: Remarks: Signed by the Signed by the service client: Technician: Date: Made by: (name of the service technician) Comples: Remarks: Signed by the Signed by the service client: Technician:... - Page 11 EvoDrive+ maintenance manual v1.0.0 Date: (name of the service technician) Made by: Comples: Remarks: Signed by the Signed by the service client: Technician: Date: Made by: (name of the service technician) Comples: Remarks: Signed by the Signed by the service client: Technician: Date:...
- Page 12 Linear Motor Applications, S.L. Tel.: + 34 935 624 639 Pol. Ind. Santiga Fax: +34 935 737 308 Pasaje Arrahona 4, Nave 1 E-mail: info@motion4.eu 08210 Barberà del Vallès www.motion4.eu Barcelona - España...
