Aiphone TB-20GA Specifications

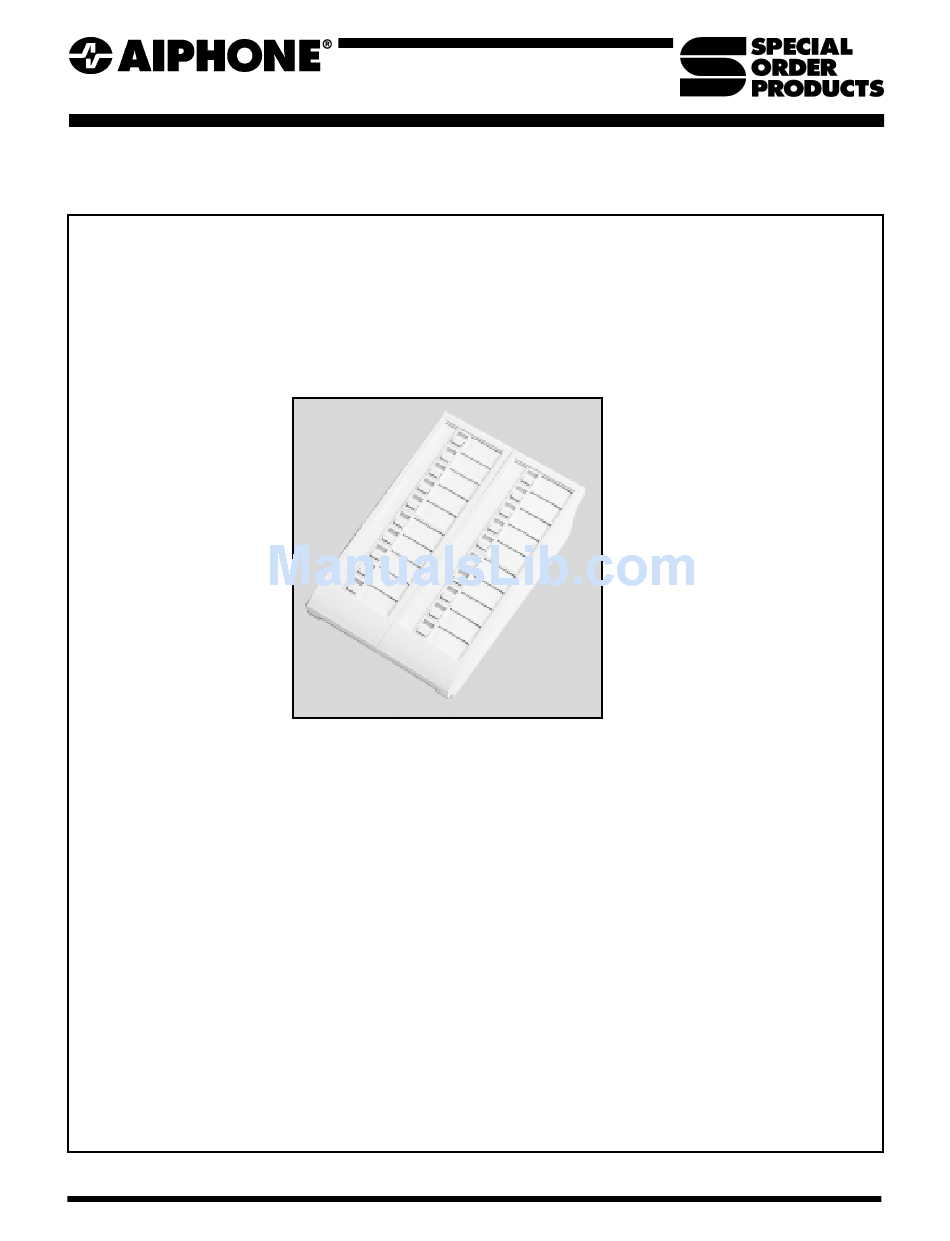

TB-20GA
20 Call Add-on Selector Modified for an Extra Add-on Selector
DESCRIPTION:
The TB-20GA add-on selector is designed to
work with the TB-M Internal Telephone-type
system to allow expansion up to 80 stations, used
with the standard TB-20M master and TB-40G
add-on selector. All standard TB-M system
remote stations can be used with the expanded
system.
TB-20GA
SPECIFICATIONS:
Power source: 18V DC, 350mA or 16V AC, 750mA
Current consumption: 6W max. 3W in standby
Calling: Master to TB-SE: Pick up handset and select station button
TB-SE to Master: Pick up handset
Door station to Master: Press call button
Communication: Master to Sub: Simultaneous through handset
Master to door station: Simultaneous. Master uses handset, door station is hands free.
Talk channel: Single talk channel
Wiring: 2 conductors homerun from TB-SE to TB- n M (Use Aiphone wire #812202)
2 conductors homerun from door station to TB-AD10 (Use Aiphone wire #812202)
5 conductors from TB- n M to TB-AD1 (Use Aiphone wire #812206)
14 conductors from TB- n M to TB-AD10 (Use Aiphone wire #822215)
2 conductors homerun from video door to TB-ADM10 (Use Aiphone wire #841802)
14 conductors from TB- n M to TB-ADM10 (Use Aiphone wire #822215), plus
6 conductors from TB-ADM10 to MYH-CU (Use Aiphone wire #841806)
Mounting: Desk or wall mount
Dimensions (HxWxD):
TB-10M/D: 4-5/8" x 10" x 9"
TB-20M/D 4-5/8" x 13" x 9"
Aiphone Communication Systems • 1700 130th Ave. N.E. • Bellevue, WA 98005
(425) 455-0510 • FAX: (425) 455-0071 • (800) 692-0200 • www.aiphone.com
FEATURES:
• Up to 80 remote stations per system
• Two master stations (with TB-SE subs)
• Functions like a standard TB add-on selector
• Easily connected between the TB-M master and
standard TB-G add-on selector
• Compatible with all IE & MK series door stations
(adaptor required)
TB-20G & TB-20GA: 3-13/16" x 6" x 9"
TB-40G: 3-13/16" x 11-13/16" x 9"
- 56 -
