Coralife Turbo-Twist 3x Manual

PARTS DIAGRAM

FLAT O-RING
UVC LAMP
THREADED-CAP
QUARTZ HOUSING
O-RING
HOSE
BARB
OUTLET
HOSE BARB
ADAPTER
HOSE LOCK NUT
MAIN
BODY
LAMP ON INDICATOR

SPECIFICATIONS

Article
UV Lamp
Rated Voltage
Rated Cycle
Rated Power
Irradiation of UV Radiation 9,580 W/cm
Wavelength of UV Radiation
Life of UV Lamp
Aquarium Volume Treats up to 125 gallon saltwater or freshwater aquariums
Flow Rate
Size of O-ring Inner 12/outer 16mm, inner 16/outer 22mm
Cord Length
PLUG
Water Pump not Included. Water Pump not Included.
TANK
BRACKET
O-RING GASKET
TURBO-TWIST
SUCTION
BRACKET
CUP
HOSE LOCK NUT
HOSE BARB
ADAPTER
O-RING
HOSE
BARB INLET

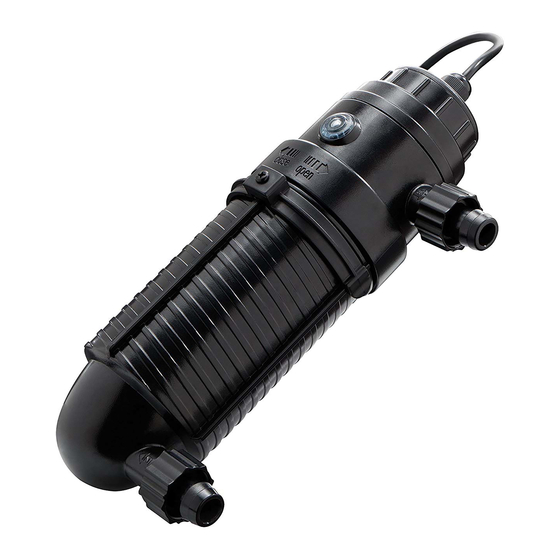

Turbo-Twist 3x UV Sterilizer
9 watt
AC120V
60Hz
10.2 watt
2 (value @ 20mm distance from the UV lamp)
253.7mm
Approx. 8000 hours
100-200 gallons per hour
Approx. 9 ft.

INSTRUCTIONS

Always disconnect the unit from the power supply before

installing the Turbo-Twist.

The Turbo-Twist provides superior aquarium health and
appearance by eliminating most harmful microorganisms.

Set-up and positioning

Adjusting the hose barb
inlet and outlet.
The hose barbs can be
positioned in four different locations
to facilitate connections to other
applications.
Lift the red safelock and unlock the
quartz housing. (Picture 1)
Carefully twist the quartz housing
and the main body opposite of each
other. (Picture 2)
The quartz housing can now be
o
rotated 360 . (Picture 3)
Adjust the orientation of the hose
barb and set the main body into the
quartz housing.
Combine the main body with the quartz
housing and rotate according to the
arrowhead "close". (Picture 4)
Press in the red safelock and the UV
Sterilizer is now ready to install.
(Picture 5)
QUARTZ SLEEVE
(PICTURE 1)
QUARTZ HOUSING
(PICTURE 2)
MAIN BODY
(PICTURE 3)
(PICTURE 4)
(PICTURE 5)
