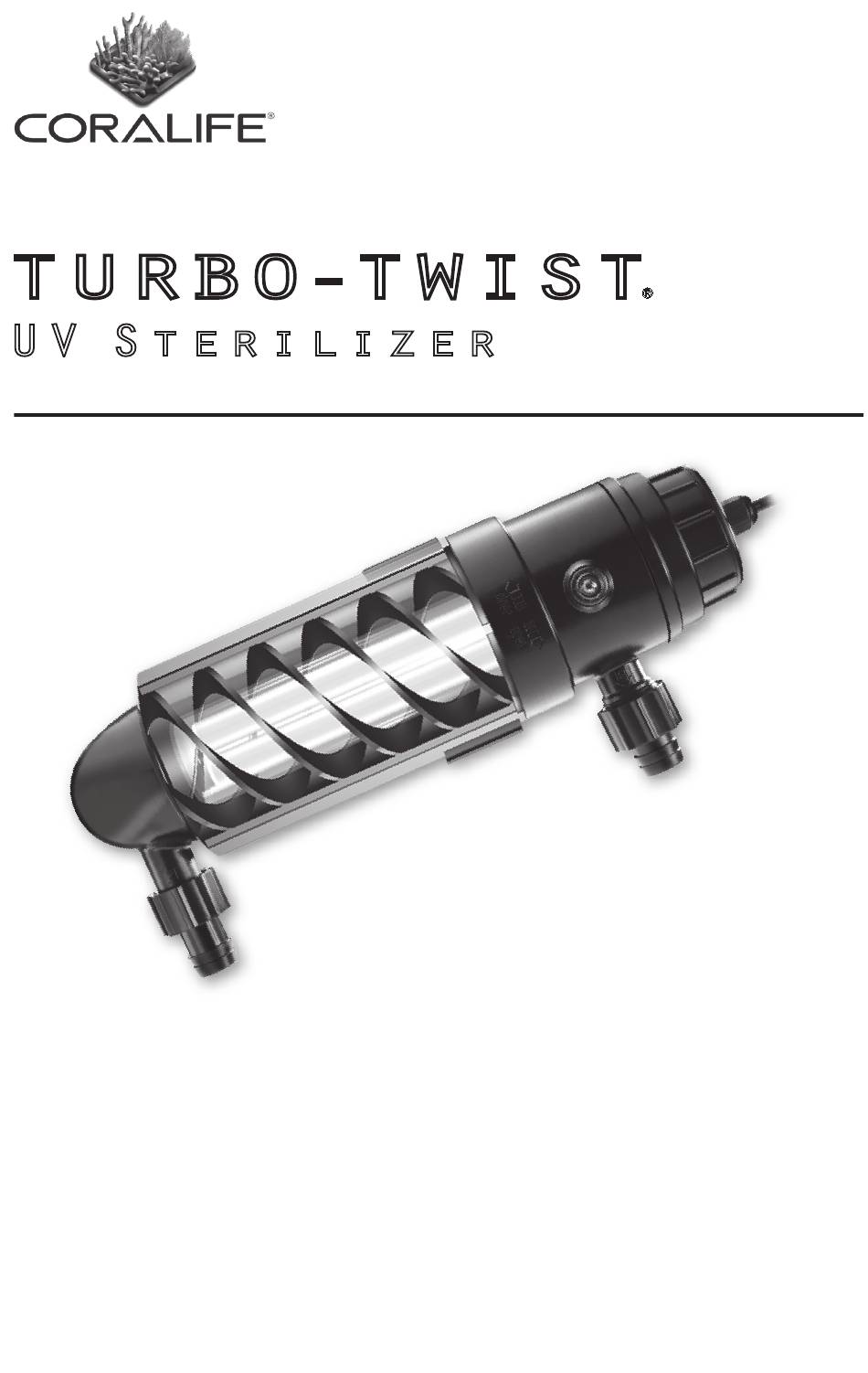

TURBO-TWIST
®
U V S t e r i l i z e r
Instructions
Please read these instructions in their entirety
before attempting to use this product.
EPA Estab. No. 073048-CA-00
Coralife
®
A product of Central Aquatics
(Division of Central Garden & Pet Co.)
Franklin, WI 53132 888.255.4527
Coralife
and Turbo-Twist
are registered
®
®
trademarks of Central Garden & Pet Co.
© 2011 Central Garden & Pet Co.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Coralife Turbo-Twist Series
Summary of Contents for Coralife Turbo-Twist Series
- Page 1 U V S t e r i l i z e r Instructions Please read these instructions in their entirety before attempting to use this product. EPA Estab. No. 073048-CA-00 Coralife ® A product of Central Aquatics (Division of Central Garden & Pet Co.) Franklin, WI 53132 888.255.4527...
-
Page 2: Parts Diagram
PARTS DIAGRAM BALLAST PLUG FLAT O-RING GASKET HOSE BARB TAPERED ADAPTOR O-RING THREADED CAP HOSE LOCK TANK BRACKET UVC LAMP HOSE LAMP-ON BARB INDICATOR OUTLET QUARTZ HOUSING TURBO-TWIST SUCTION BRACKET O-RING GASKET HOSE LOCK LOCKING HOSE BARB ADAPTOR Water pump MAIN BODY HOSE not included. -
Page 3: Set Up And Positioning
The Coralife Turbo-Twist Ultraviolet Sterilizers are easy to set up and operate. Please read all instructions in their entirety before installation. To accommodate your new sterilizer, you will need a power-head, pump, or canister filter with an appropriate flow rate for the size of your UV Sterilizer to ensure adequate ultraviolet exposure while treating the entire volume of aquarium water with appropriate frequency. - Page 4 Bracket Installation ➀ Adjust the tank bracket so that it hangs ➁ Slide the Turbo-Twist bracket onto the tank on the outside of the aquarium. bracket. Make sure the Turbo-Twist bracket is securely fastened onto the tank bracket. RANGE OF THE CLAMP TURBO-TWIST BRACKET PULL-OUT...
- Page 5 3. Reassembly Make sure that the flat O-ring gasket is properly positioned inside the threaded cap (already installed in unit). Screw the O-RING GASKET threaded cap tightly back into place. Note: The plug and cord should be turned together when screwing the threaded cap back into place. 4.
-
Page 6: Tubing Connection
6. Tubing connection WATER FLOW OUTLET Connect the tubing between the water flow outlet and the hose CANISTER barb inlet. FILTER It is recommended that a prefilter be used with the Turbo-Twist to limit the amount of debris entering LAMP-ON INDICATOR HOSE BARB the sterilizer. -
Page 7: Maintenance
Maintenance To ensure superior performance, the quartz sleeve should be cleaned periodically. Cleaning the quartz sleeve ➀ Disconnect UV Sterilizer from outlet, turn off the pump and let water drain from Turbo-Twist. QUARTZ ➁ Unscrew locking ring screw HOUSING and slide tab down to release. (Picture 1) ➂... - Page 8 Troubleshooting If troubleshooting steps do not work, please contact Central Aquatics Tech Support for additional help. PROBLEM SOLUTION • The plug is not connected to • Connect the plug to the the power supply. power supply. UVC Lamp • UVC lamp base is loose. •...
- Page 9 W A R N I N G Please read instructions in their entirety before using the UV Sterilizer. Cut off the power and stop using Cut off the power immediately if the UV Sterilizer was submersed if water enters into the quartz or dampened by water.
- Page 10 Suggested Tubing Connections PUMP PUMP PUMP...
- Page 11 Coralife Turbo-Twist UV Sterilizer Flow Rates ® UVC Energy (µw sec/cm 55 gph Turbo-Twist ® Parasites 45,000 40,000 35,000 30,000 25,000 121 gph Algae 20,000 15,000 253 gph Bacteria 10,000 (gallon/hour) UVC Energy (µw sec/cm 110 gph Turbo-Twist ® Parasites...
-
Page 12: 12 Month Limited Warranty
TURBO-TWIST ® UV Sterilizer 12 Month Limited Warranty WHAT THE WARRANTY COVERS: Central Aquatics (Company) warrants this product (see Exclusions below) to the original purchaser against defective material and workmanship that occurs during normal use for 12 months from the date of original purchase.
Need help?
Do you have a question about the Turbo-Twist Series and is the answer not in the manual?
Questions and answers
The threaded cap won't budge i tried to unscrew it but it's on awfully tight. How do I get this off without breaking the unit?
@William Bishop
To remove a tightly secured threaded cap from a Coralife Turbo-Twist Series unit without damaging it:
1. Turn off the power and disconnect the unit from the outlet.
2. Let the water drain from the unit and allow the lamp to cool if recently used.
3. Grip the plug and cord together and turn them along with the threaded cap to unscrew it. This helps avoid twisting the cord separately and reduces stress on the cap.
4. Ensure the flat O-ring gasket stays in place during removal.
Do not use tools that may crack or deform the cap. Handle gently to avoid damage.
