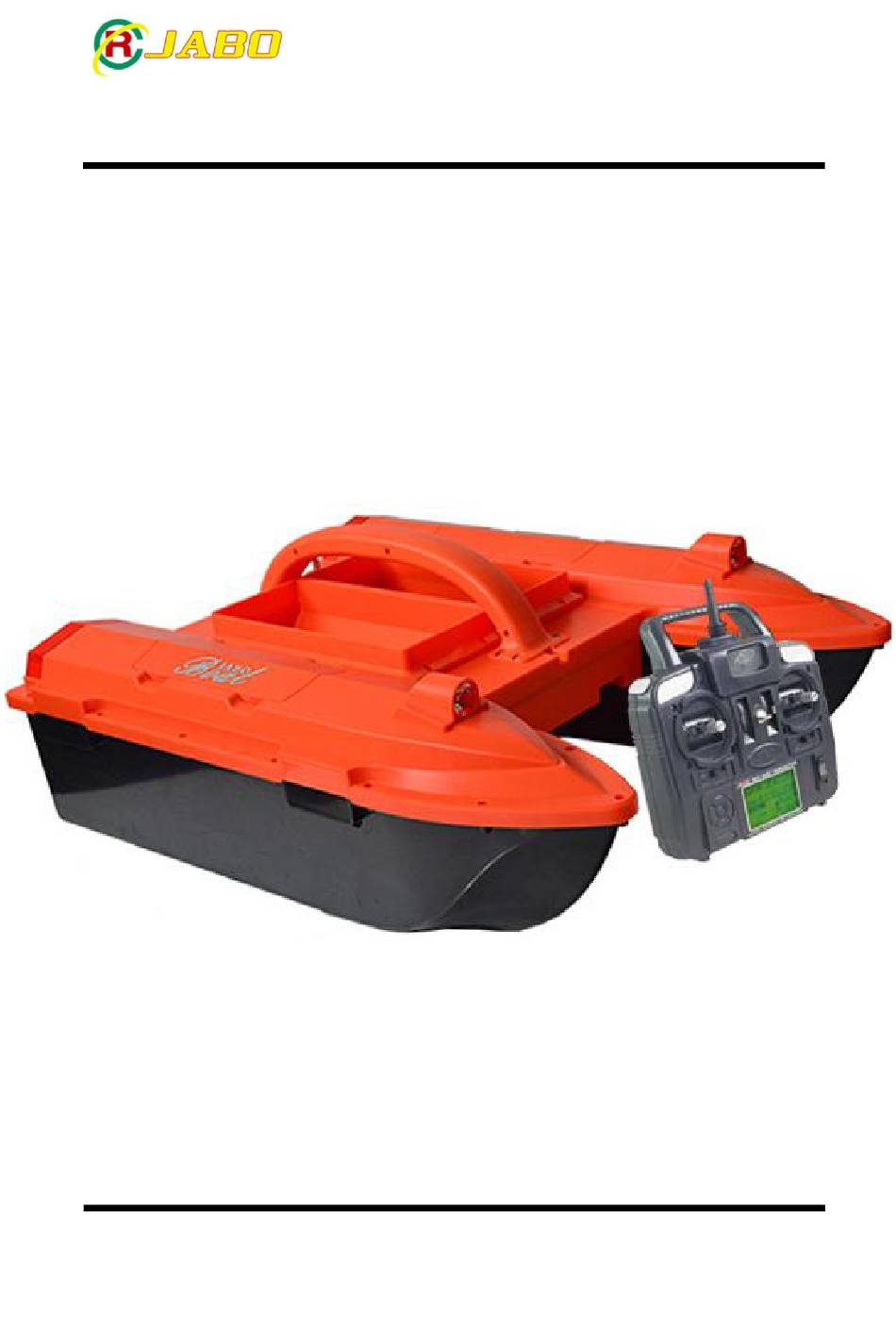

- Page 1 Shenzhen ZHJABO Electronics CO.,Ltd JABO-5CG INSTRUCTIONS 201509 Version number ： http://zhyk.en.aliaba.com...
- Page 2 JABO-5 bait boat is an upgraded version based on our previous models. The advantage of JABO-5 is better stability, less fault, more convenient transportation, and etc. Main features: 1.The bait boat is built with high quality engineering plastic. The design is modern. The body is solid and durable.
- Page 3 Otherwise, user may lose control of this boat or damaging the battery. Test instruction: JABO fishing bait boat is already tested by factory. But for safety purpose, please conduct some necessary check and test before use. Sailing light: there are 2 sailing lights in the rear of the body.
- Page 4 5. Push the left stick to the left/right, the left/right sailing light is flashing. Meanwhile the motors will turn to left/right. 6.Feeding bin: To avoid wrong operation, there is a safety button on the remote control. When operating the feeding bin, the user MUST press the FUNCTION button and push the right stick to the left/right at the same time, the corresponding feeding bin will open.
- Page 5 Press the FUNCTION button and push the right stick to the left/right at the same time, the corresponding feeding bin will open. Keep push the stick to release the hook. Press FUNCTION button and pull down the right stick altogether to turn on/off the fishing light. Pull down the right stick to turn on/off the front light.
- Page 6 Language: Press + for English, press - for Chinese. Press the DOWN key to enter the next parameter. RF channel selection:When there are 2 bait boats in the same area, the user should choose different channel by press + or -. The user need to reboot the bait boat to save the change. There are 6 channels available for user to choose.
- Page 7 Yaw adjustment: Press + or - to adjust the yaw. Press the DOWN key to enter the next parameter. The bottom zoom display function: Press + or - to turn it on or off. The user can use this feature to see the details under the water.
- Page 8 Water depth range setting: Press the + or - button to adjust. A proper setting can make the picture more clear. You can also set to AUTO to let the system adjust the parameter. GPS setting:Press SET button under GPS mode to enter the GPS setting page. Press SET again to save the change.
- Page 9 Press - to confirm In the future, the user can get quick access of last feeding point. Time zone setting: Press + or - key to change time zone. Press the DOWN key to enter the next parameter. Fish detector uses techniques and matters needing attention http://zhyk.en.aliaba.com...
- Page 10 The depth range for this system is 0.6 - 32 meters. The system won’t work outside of this range. If the estimated depth is shallow, we can choose low sensitivity. For example, 60 for 5 meters. The deep depth, the higher sensitivity. Try not to set the sensitivity to a very high level, it may cause false target. Please make sure the bait boat is stable in the water when using the sonar system.
- Page 11 Distance measurement and start point setting: When the GPS works properly, the current location will be set as start point by pressing DOWN button and FUNCTION button altogether. Distance measurement won’t work with a start point. Once the start point is set, the LCD display will show the distance while the bait boat is moving.
- Page 12 http://zhyk.en.aliaba.com...
