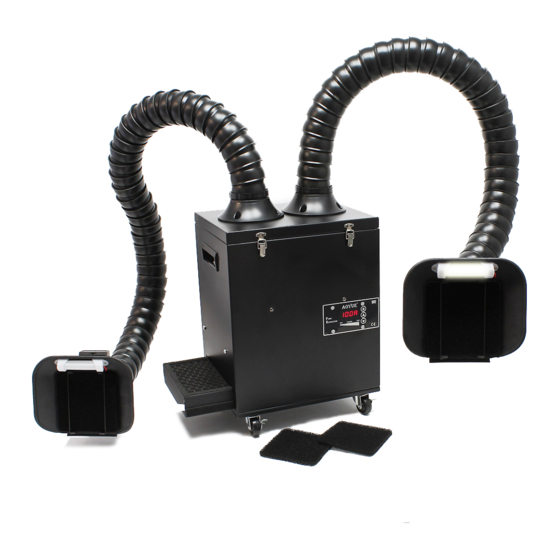

- Page 1 FEK-01 Fume Extractor Instruction Manual Thank you for purchasing the Aoyue FE-01 Soldering Fume Extractor. Please read the manual before using the unit. Keep manual in accessible place for future reference.
- Page 2 TABLE OF CONTENTS Product Description …………………………………… Package Inclusion …………………………………… Safety Precautions …………………………………… Specifications …………………………………… Functions and Features ……………………………… Control Panel Guide …………………………………… Operating Guidelines ……………………………… …. Basic Troubleshooting Guide ………………………. …..
- Page 3 PRODUCT DESCRIPTION First fume extraction system in the world which fully utilizes activated carbon beads to it’s maximum efficiency. Powerful suction, Quiet operation. Electronic Control Panel with Variable -airflow adjustment. Excellent cost performance filter. Comes with actual Carbon filter beads that trap odor and toxins .
- Page 4 SAFETY PRECAUTIONS CAUTION: Improper usage can cause serious injury to personnel and/or damage to equipment and work area. For your own safety, please observe the following precautions. Check each component after opening the package to make sure everything is in good condition. If there are any suspected damage, do not use the item and report the issue to your vendor.
- Page 5 SPECIFICATION SPECIFICATION Voltage Input : available in 110V / 220V Dimensions: 320(w) x450 (h) x 260 (d) mm Weight: 8.5Kg Power Consumption: 80-200W Filter: HEPA Filter Exhaust Air Power Switch duct connection DISPLAY Controls Connector CARBON FILTER...
- Page 6 OPERATING GUIDELINES REMINDERS: Make sure the equipment is placed on a flat stable surface and all the heat-generating components placed on their respective holders or stands. Ensure all function switches are in the OFF position. Ensure all terminal connections are properly secured. Please refer to the CONTROL IMPORTANT: PANEL GUIDE page for button...
- Page 7 OPERATING GUIDELINES Assembly: Battery cover Switch Exhaust Connector Unlock to access HEPA filter Unlock to access HEPA filter Pull out carbon filter for replacement when needed.
- Page 8 Manufacturer: AOYUE INTERNATIONAL LIMITED Jishui Industrial Zone, Nantou, Zhongshan City, Guangdong Province, P.R.China http://www.aoyue.co...
