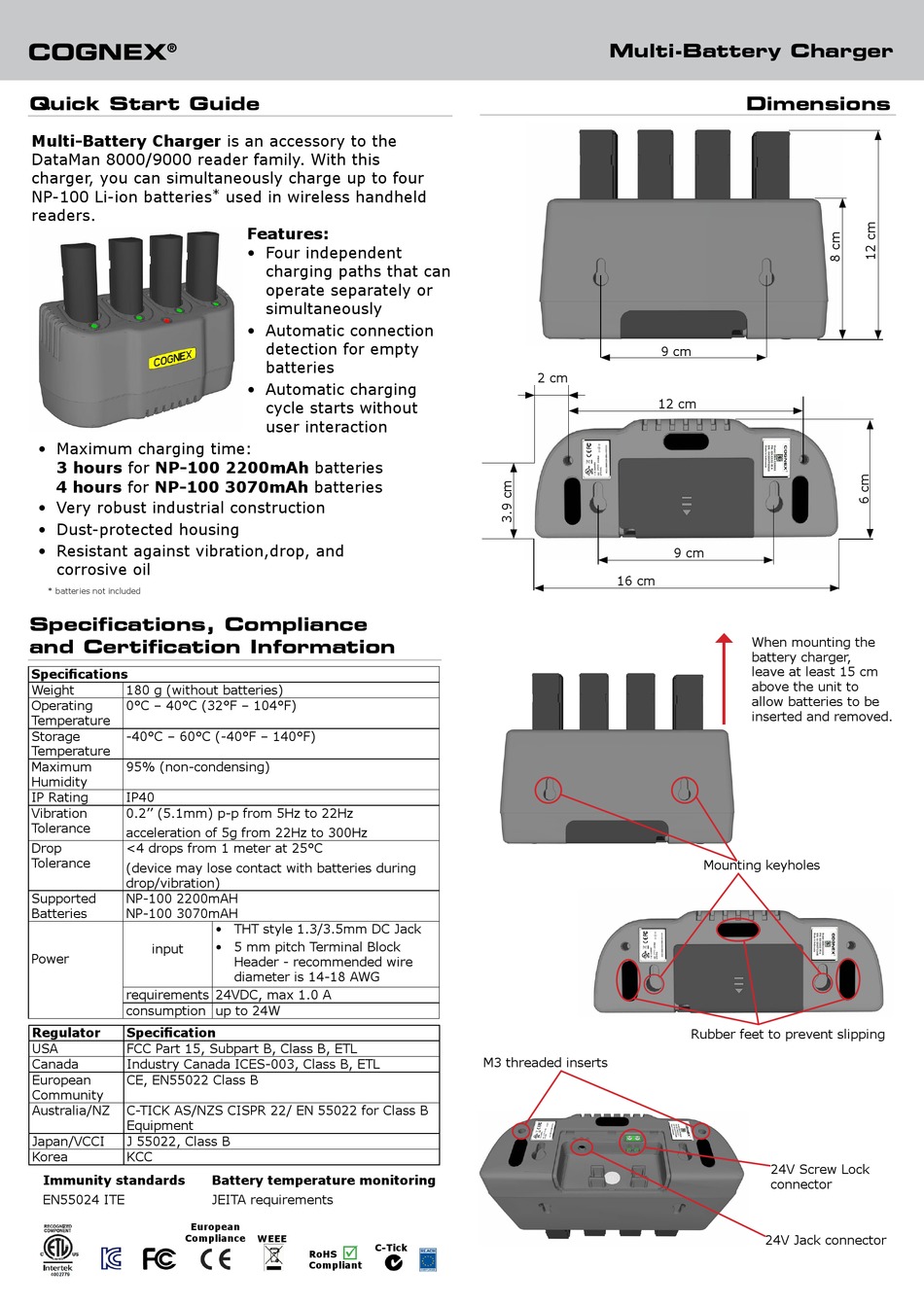

Cognex Multi-Battery Charger Quick Start Manual

COGNEX
®
Quick Start Guide

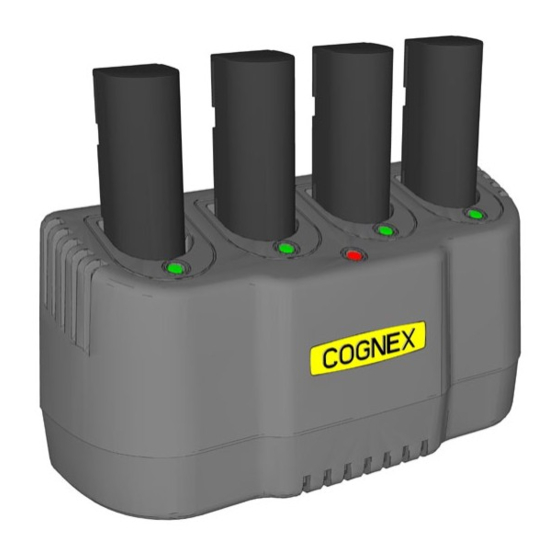

Multi-Battery Charger is an accessory to the
DataMan 8000/9000 reader family. With this
charger, you can simultaneously charge up to four
NP-100 Li-ion batteries
readers.
• Maximum charging time:
3 hours for NP-100 2200mAh batteries
4 hours for NP-100 3070mAh batteries
• Very robust industrial construction
• Dust-protected housing
• Resistant against vibration,drop, and
corrosive oil
* batteries not included
Specifications, Compliance
and Certification Information
Specifications
Weight 180 g (without batteries)
Operating 0°C – 40°C (32°F – 104°F)
Temperature
Storage -40°C – 60°C (-40°F – 140°F)
Temperature
Maximum 95% (non-condensing)
Humidity
IP Rating IP40
Vibration 0.2'' (5.1mm) p-p from 5Hz to 22Hz
Tolerance
acceleration of 5g from 22Hz to 300Hz
Drop <4 drops from 1 meter at 25°C
Tolerance
(device may lose contact with batteries during
drop/vibration)
Supported NP-100 2200mAH
Batteries NP-100 3070mAH
input
Power
requirements 24VDC, max 1.0 A
consumption up to 24W
Regulator Specification
USA FCC Part 15, Subpart B, Class B, ETL
Canada Industry Canada ICES-003, Class B, ETL
European CE, EN55022 Class B
Community
Australia/NZ C-TICK AS/NZS CISPR 22/ EN 55022 for Class B
Equipment
Japan/VCCI J 55022, Class B
Korea KCC
Immunity standards
EN55024 ITE
European
Compliance
* used in wireless handheld
Features:
• Four independent
charging paths that can
operate separately or
simultaneously
• Automatic connection
detection for empty
batteries
• Automatic charging
cycle starts without
user interaction
• THT style 1.3/3.5mm DC Jack
• 5 mm pitch Terminal Block
Header - recommended wire
diameter is 14-18 AWG
Battery temperature monitoring
JEITA requirements
WEEE
C-Tick
þ
RoHS
Compliant
Multi-Battery Charger
2 cm
16 cm
M3 threaded inserts
Dimensions
9 cm
12 cm
9 cm
When mounting the
battery charger,
leave at least 15 cm
above the unit to
allow batteries to be
inserted and removed.
Mounting keyholes
Rubber feet to prevent slipping
24V Screw Lock
connector
24V Jack connector
