10.4 Control modules

The control module will display varying amounts of information, dependent on the screen size of the device you are
using. Tapping/clicking on this will open up a form where, dependent on the type of control module used, some or all
of the following details and settings are present:
■ Serial Number:
■ Compensation Type: Current compensation type. This can be set via the up/down arrow in the device menu.
■ FSK:
■ CRC Pass/Fail:
■ Auto-disable IDS:
■ Inter-step delay:
■ Uptime:
■ Temperature:
■ PSU 5 V/PSU 24 V:
■ Firmware:
19
Unique identification number of the product.
See Compensation section for more information.
Current FSK level.
Shows the pass/fail when FSK communication is active (TxNMS).
Tapping/clicking the slider icon turns this on (blue) or off (dark grey).
Tapping/clicking the slider icon turns this on (blue) or off (dark grey).
The amount of time since last reboot/power cycle.
Current temperature of the amplifier.
Voltage levels.
Current firmware version of the control module.

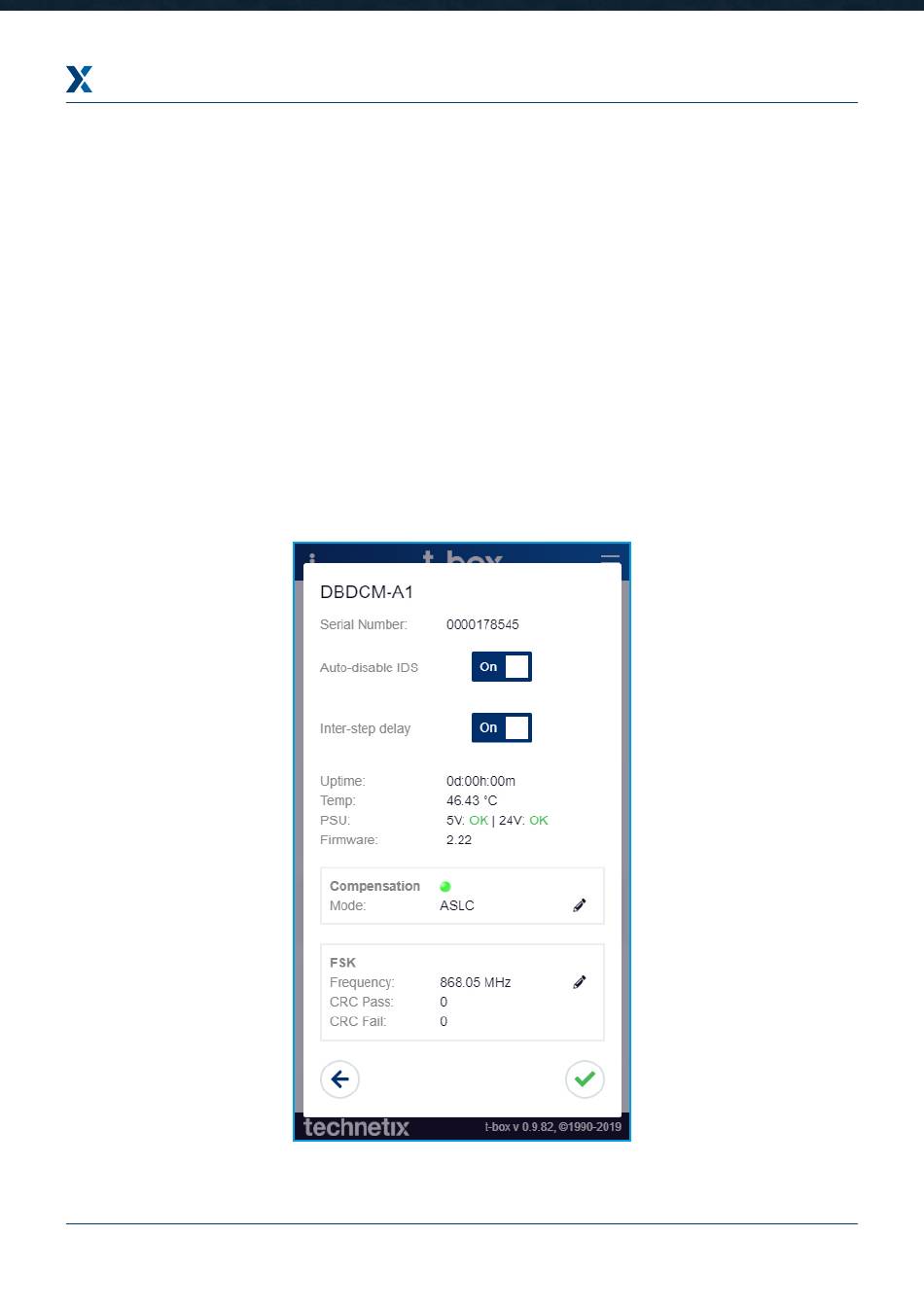

Desktop form
