Summary of Contents for SafeGuard MegaGuard Pro

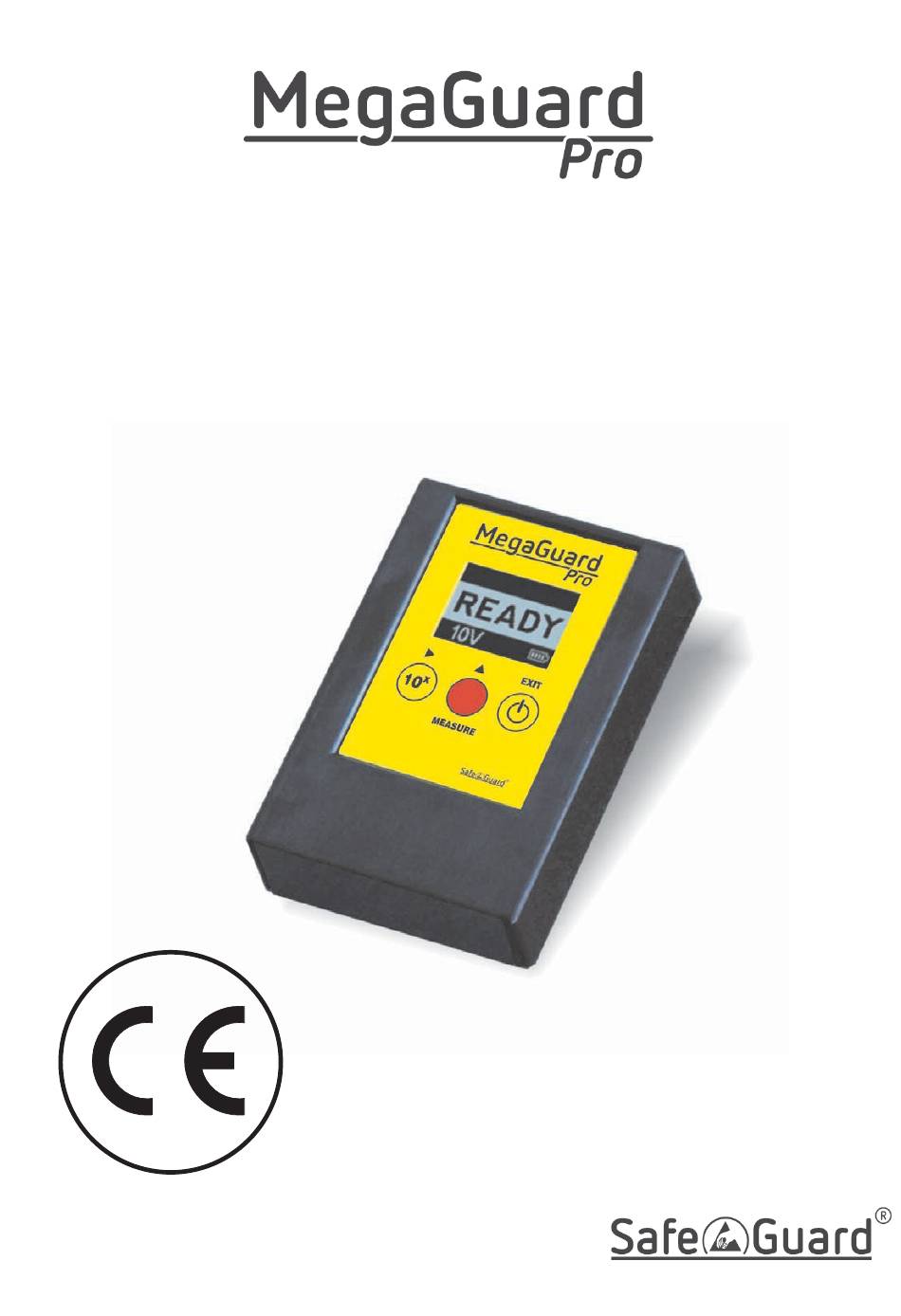

- Page 1 SG9265051 Reference manual...
-
Page 2: Safety Instructions
EC CONFORMITY Unit SG9265051 conforms to EC directives EMC - 2014/30/EU , the following harmonized standards are in use: EN 61000-6-1, EN 61000-6-3. SAFETY INSTRUCTIONS ATTENTION : this instrument generates a 100V measuring voltage on the two measuring terminals or on the external probes if connected in the “EXTERNAL PROBE”... -
Page 3: Technical Features
TECHNICAL FEATURES The MegaGuard Pro can measure surface resistance and resistance to the ground of mats, floors and other objects of the EPA area, and can also be used for point-to-point measurements. The instrument displays up to a significant digit and is equipped with a display graphic and programmable audible alarm. -
Page 4: Content Of The Package
CONTENT OF THE PACKAGE The code SG9265051 includes: - 1 MegaGuard Pro with battery - 1 connection cable 9265.013B, 3.5mm jack - banana4mm - Manual - ISO9000 traceable calibration certificate. - Box Kit SG9265056 includes: - 1 MegaGuard Pro with battery - 2 connection cables SG9265013B, 3.5mm jack - banana4mm... - Page 5 DISPLAY At the top of the display the measured material is classified according to its resistance. It can be "CONDUCTIVE", "DISSIPATIVE", "INSULATIVE" Ω "CONDUCTIVE" if Rmeasured <10 Ω< Rmeasured<10 Ω "DISSIPATIVE" if 10 Ω < Rmeasured "INSULATIVE" it 10 Ω Exponential format 4x10 Natural format 4 GΩ...
-
Page 6: Measuring Electrodes
MEASURING ELECTRODES Left Socket Left Measuring Rubber Right Socket Right Measuring Rubber "Right Socket" and "Right Measuring Rubber". In one of these two points the HV measurement output is present. The HV measurement output is connected to the "Right Measuring Rubber". When the 3.5mm jack is inserted into the "Right Socket", the "Right Measuring rubber"... -
Page 7: Operative Instructions
• In order to light-up MegaGuard Pro press "Exit". • To shut-off MegaGuard Pro keep pressed the same key for 1 second SURFACE RESISTANCE MEASUREMENT • Be sure that the surface under test is clean and free of grease or other chemicals than can create an isolant layer. -
Page 8: Alarm Program
• Press the central "MEASURE" button and keep it pressed by applying a pressure of about 2.5Kg. • Continue to keep the button pressed and wait until the reading will be stable, settling time is higher for high resistance values. MEASURING PRECAUTIONS ATTENTION: DURING GROUND RESISTANCE MEASURING, if the earth reference point is faulty or unconnected, indefinite resistivity values may...
