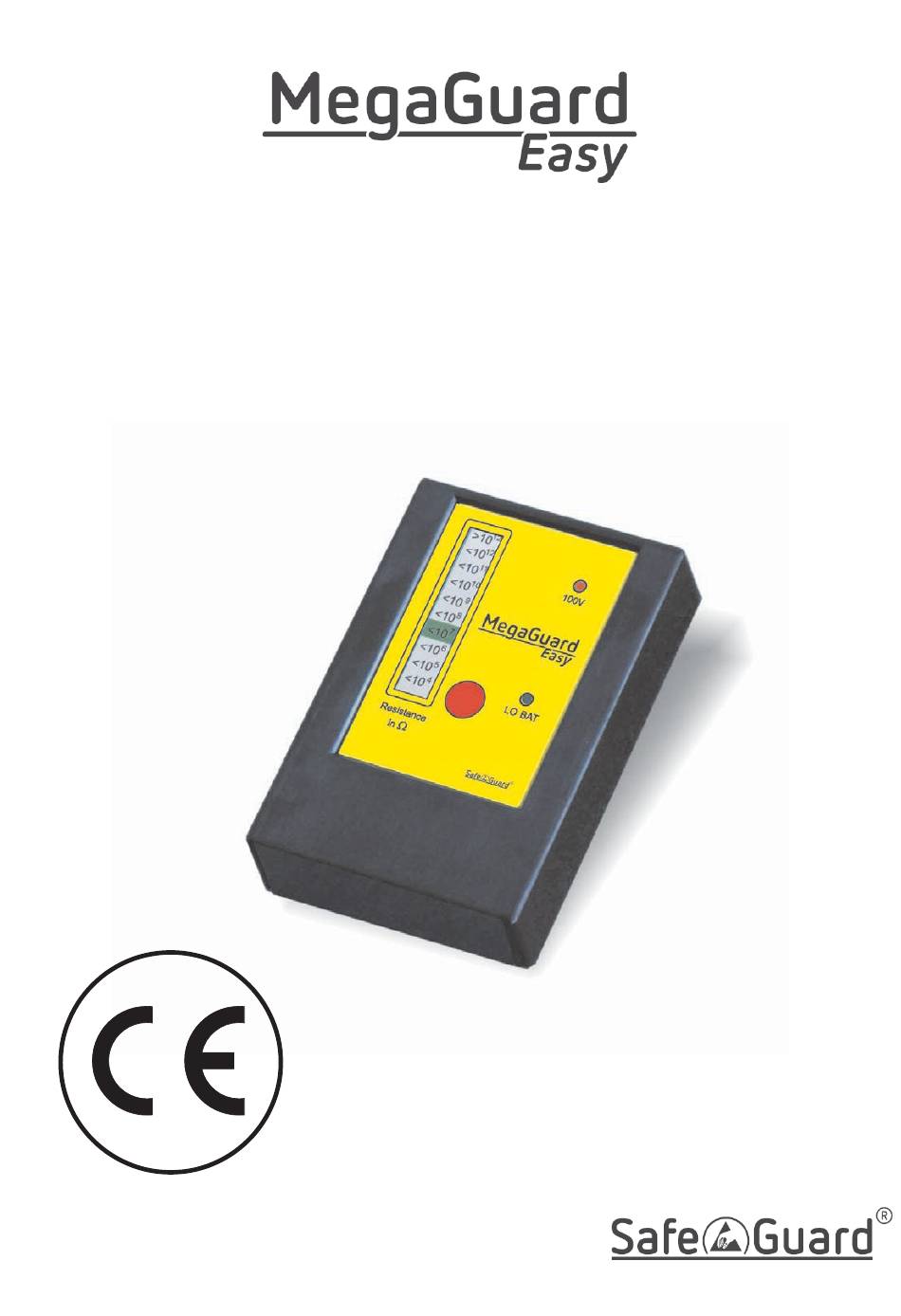

- Page 1 SG9265055 Reference manual...
-
Page 2: Safety Instructions
EC CONFORMITY Unit SG9265055 conforms to EC directives EMC - 2014/30/EU , the following harmonized standards are in use: EN 61000-6-1, EN 61000-6-3. SAFETY INSTRUCTIONS ATTENTION : this instrument generates a 100V measuring voltage on the two measuring terminals or on the external probes if connected in the “EXTERNAL PROBE”... -
Page 3: Technical Features
TECHNICAL FEATURES The MegaGuard Easy can measure surface resistance and resistance to the ground of mats, floors and other objects of the EPA area, and can also be used for point-to-point measurements..........1 TΩ − οο... -
Page 4: Content Of The Package
CONTENT OF THE PACKAGE The code SG9265055 includes: - 1 MegaGuard Easy with battery - 1 connection cable SG9265013B, 3.5mm jack - banana4mm - Manual - ISO9000 traceable calibration certificate. - Box... -
Page 5: Battery Replacement
PANEL LEFT SOCKET RIGHT SOCKET Input for external probe Input for external probe 100V MEASURING VOLTAGE LOW BATTERY LED MEASUREMENT BUTTON BATTERY COVER BATTERY REPLACEMENT • Open the battery cover, unscrewing the 2 fixing screws. • Replace the battery. • Close the battery cover. -
Page 6: Measuring Electrodes
MEASURING ELECTRODES Left Socket Left Measuring Rubber Right Socket Right Measuring Rubber "Right Socket" and "Right Measuring Rubber". In one of these two points the HV measurement output is present. The HV measurement output is connected to the "Right Measuring Rubber". When the 3.5mm jack is inserted into the "Right Socket", the "Right Measuring rubber"... -
Page 7: Operative Instructions
OPERATIVE INSTRUCTIONS SURFACE RESISTANCE MEASUREMENT • Be sure that the surface under test is clean and free of grease or other chemicals than can create an isolant layer. • In case of doubt clean the surface with a specifical detergent, without alcohol or silicon, so that the non conductive layer will be removed. - Page 8 50Hz may cause an interference with the MegaGuard Easy measuring circuit especially when measuring high resistance values. In case of doubt disconnect the mains power supply by opening the main...
