Leviton GreenMax DRID0-C02 Quick Start Manual

WARNINGS

• TO AVOID FIRE, SHOCK, OR DEATH; TURN OFF POWER AT CIRCUIT BREAKER OR FUSE AND TEST
THAT POWER IS OFF BEFORE WIRING!
• To be installed and/or used in accordance with appropriate electrical codes and regulations.
• If you are unsure about any part of these instructions, consult an electrician.

Introduction

The GreenMax DRC Low Voltage Analog Interface (AI) is designed to accept input from low voltage sources
like occupancy sensors, switches, photocells, and other related systems, and to interface to other external
systems via low voltage input.
WARNING: TO AVOID FIRE, SHOCK, OR DEATH;
TURN OFF POWER at circuit breaker or fuse and test that power is off before wiring

DRID0-C02 Installation Options

Mount with one of the following methods:
a.
a.

DRID0-CB2 Installation

Install into a 4-11/16 in. electrical junction box.
NOTE: Electrical junction box must have a depth of 2 in. or greater.
a.
Feed wires through knockouts and wire device.
Set unique LumaCAN network address.
(refer to the Wiring and Network Details section).

Interface

1 2
DC +V
AI1 AI2
COM OUT
DC
AI1 AI2
COM
7
1
2
3
ADDR
6
TERM
LumaCan
6
5
GreenMax
Cat. No. DRID0-C02, DRID0-CB2
INSTALLATION INSTRUCTIONS

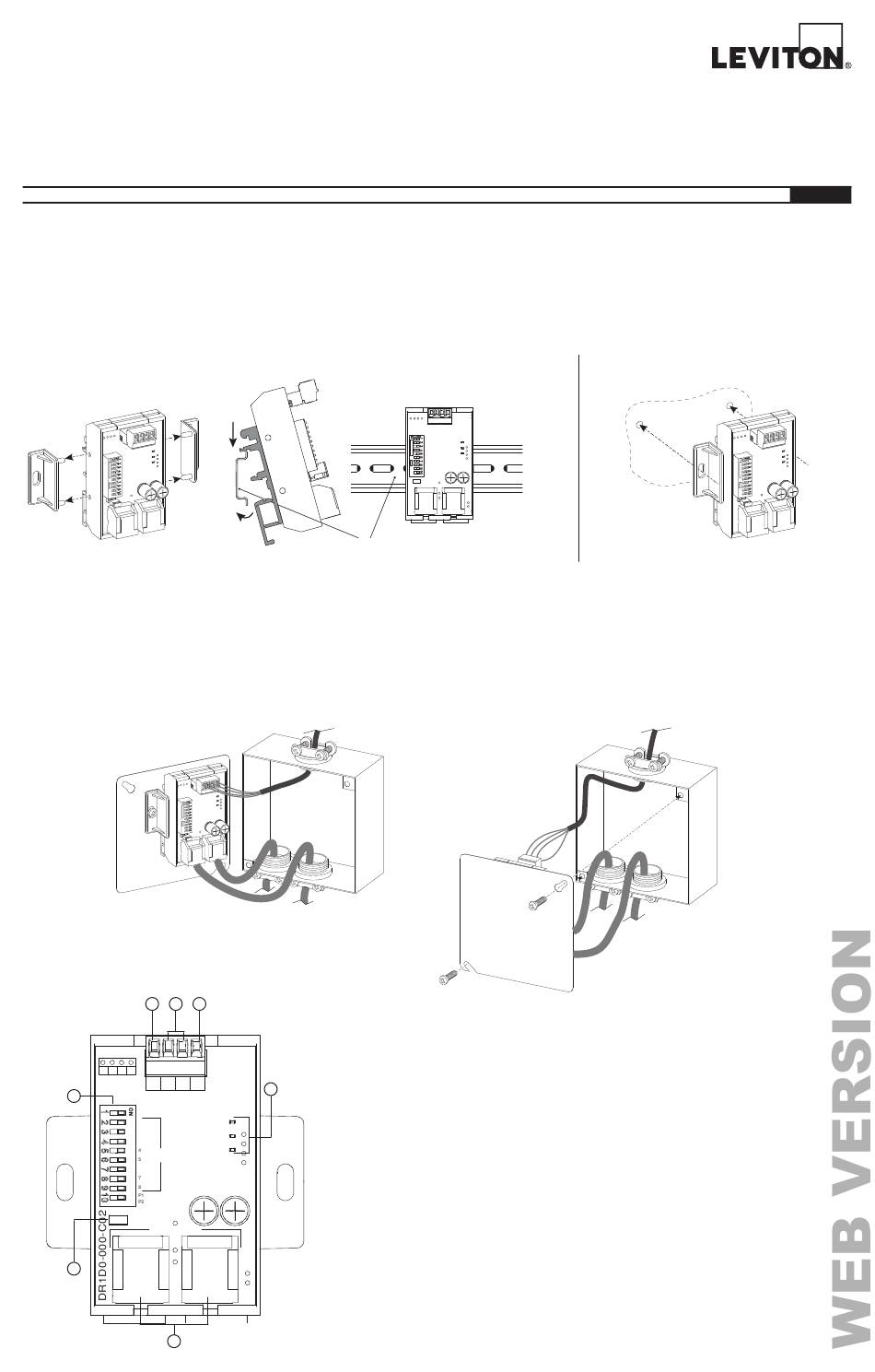

DIN Rail Mounting
b.
c.
DIN rail
3
+V
OUT 4
AI1
AI2
RX/TX
+v
IN
DC
COM
TM DRC 2 Port Analog Interface

CAUTIONS

• Use this device with copper or copper clad wire only.
• For indoor applications only.
• Save these instructions.

Before Installation

Consider the items noted below:
• When surface mounting using the mounting ears, ensure environment is free from debris and wiring is protected.
• For jurisdictions where all Class 2 wiring must be in conduit or if the device must be in a metal enclosure,
surface mounting is not appropriate.
• For compliance with Chicago plenum requirements, installation in metal box is required.
b.
Mount plate to junction box.
1. DC COM = COM
2. AI1 & AI2 = Analog Input
• 0.5-24VDC at 10 bit resolution for analog inputs.
• 0.5-10VDC for use with a photocell.
• +24V/Open for external contact closure as you would use with a switch or a photocell contact closure. May be
used with a momentary or maintained device.
3. +V OUT = Output voltage to devices. Actual voltage will be same as input passthrough from LumaCAN. Output is
short circuit protected.
4. STATUS LED = Shows network status. The LEDs have the following functions:
• AI1 = Solid Yellow when Analog Input #1 is Active (> 0.5V)
• AI2 = Solid Yellow when Analog Input #2 is Active (> 0.5V)
• AI1/AI2 = Blink rapidly when in bootloader mode.
• RX/TX = Solid Green when network connected. Blinks Green on network traffic.
5. LumaCAN = LumaCAN Network connections
6. TERM = Provides Network termination. Jumper to be installed if last device on network. Remove jumper if not an
end device.
7. ADDR = Used to set LumaCAN network address.
PK-A3289-10-00-5A
ENGLISH
Surface Mounting
