Gear4music VISION KEY-10 User Manual

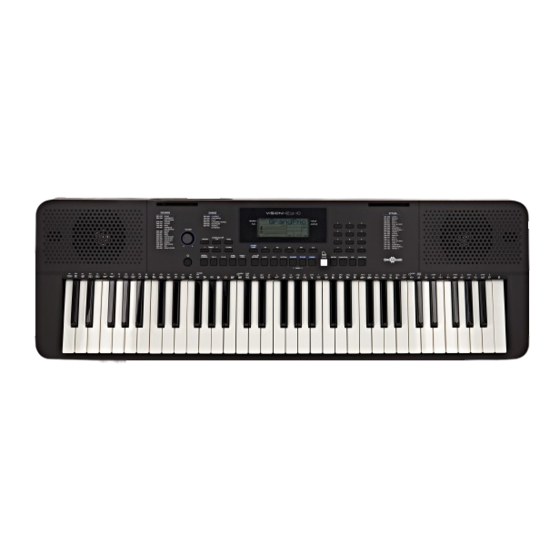

61 key electronic keyboard
Hide thumbs
Table of Contents

Advertisement

Quick Links

61 KEY
ELECTRONIC
KEYBOARD
VISION KEY-10
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VISION KEY-10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gear4music VISION KEY-10

Summary of Contents for Gear4music VISION KEY-10

  • Page 1 61 KEY ELECTRONIC KEYBOARD VISION KEY-10 USER MANUAL...
  • Page 2 WARNING! VAROITUS! Do not open cover. No user-serviceable parts inside. Refer servicing to qualified service personnel Älä avaa kantta. Ei sisällä käyttäjä-huollettavia osia. Huollot saa suorittaa vain pätevä huoltomies. Do not place the product in a location near a heat source such as a radiator, or in an area subject to Älä...
  • Page 3 ADVARSEL! OPOZORILO! Ikke åpne dekselet. Inneholder ingen deler som kan brukes. Overlat reperasjon til kvalifisert Ne odpirajte pokrova. V notranjosti ni nobenih delov, ki jih uporabnik lahko sam popravlja. Popravilo servicepersonell. prepustite usposobljenemu osobju Ikke plasser produktet i nærheten av varmekilder som f.eks. en radiator, eller i områder som er utsatt for Ne postavljajte izdelka na lokacijo v bližini vira toplote, kot je radiator, ali na območje, ki je izpostavljeno direkte sollys, mye støv, mekanisk vibrasjon eller støt.

  • Page 4: Table Of Contents

    CONTENTS INTRODUCTION ......5 FUNCTION ....... . . 18 MEMORY .

  • Page 5: Introduction

    INTRODUCTION Thank you for purchasing the VISION KEY-10. To get the most out of your product, please read this manual carefully. CONTENTS • VISION KEY-10 Electronic Keyboard • PSU • Music Rest FEATURES • 61 Key Electronic Keyboard • 480 Sounds and 160 Rhythm Styles •...

  • Page 6: Front Panel

    FRONT PANEL SOUNDS SONGS STYLES 001–039 PIANO 001–009 CLASSICS 001–009 LATIN 1 040–069 CHROMATIC 010–036 FAVOURITES 010–017 DANCE 1 PERCUSSION 037–069 FOLK 018–027 POP 1 RECORD – – TOUCH 070–095 ORGAN 070–077 CHILDREN'S SONGS 028–037 ROCK 1 096–122 GUITAR 078–080 BALLROOM PLAY –...
  • Page 7 24. METRO Turns the metronome on or off 25. TRANSPOSE Enters the Transpose menu 26. DSP Turns the DSP function on or off 27. FUNCTION Enters the function menu. 28. NUMBER KEYPAD, ˅ / ˄ Sets parameter values or enters number selections 29.

  • Page 8: Rear Panel

    REAR PANEL SUSTAIN PHONES/ AUX IN MIC IN DC IN OUTPUT 30. USB PORT USB port used for connecting to a computer for USB MIDI 31. SUSTAIN 1/4” jack input to connect a sustain pedal (not supplied) 32. PHONES/OUTPUT 1/4” jack output to connect headphones or audio equipment such as a mixer, interface or amplifier.

  • Page 9: Display

    DISPLAY SOUND SUSTAIN LAYER FINGERED SPLIT HARMONY 1. RECORD/PLAY 10. BEAT 2. NUMBER DISPLAY 11. TEMPO 12. CHORD 3. SOUND/STYLE/DEMO/SONG MODE 4. INFORMATION, MENUS AND CURRENT 13. MEMORY BANK SELECTED/QUICK SETTINGS PARAMETERS 14. FINGERED BASS CHORD/FULL RANGE/FADE/ 5. TOUCH/SUSTAIN 15. NOTE INDICATOR 6.

  • Page 10: Power

    POWER The keyboard can be powered using the included power supply, or with 6 x AA batteries (not included.) Please pay attention to the correct polarity indicators when installing batteries and change them as soon as they get low. Remove the batteries if the instrument will not be used for a long period.

  • Page 11: Connections

    CONNECTIONS CONNECTING AN MP3/CD PLAYER The rear-panel AUX IN jack receives audio signals from an external audio source such as an MP3 or a CD player. Use an audio cable to connect the AUX IN jack of the instrument to the OUTPUT jack of the MP3/CD player.

  • Page 12: Power Switch

    POWER SWITCH Before switching on the instrument, ensure the volume is set to minimum and connect any external audio equipment. Make sure the instrument is properly connected to the power supply. Press the power switch. The display will light up and “Loading!”...

  • Page 13: Sounds

    SOUNDS SOUNDS SOUNDS SELECTING A SOUND The keyboard has 480 different sounds (refer to sound list appendix on p.22 for details). Press the SOUND [SOUND] button to enter the sound mode. The SOUNDS SOUND display will show “SOUND R1” plus the current sound name and number.

  • Page 14: Touch

    SOUND SUSTAIN SPLIT SOUND EFFECTS TOUCH The touch response feature dynamically controls SOUND SOUND the level of the keyboard’s response, allowing you to find the ideal level of key response to suit your playing style. To adjust the level of touch response, please refer to the function menu.

  • Page 15: Octave

    TRANSPOSE TRANSPOSE Pressing the [˅] and [˄] buttons simultaneously will return the transpose value to its default setting: “000 Transpos” OCTAVE This function allows you to raise or lower the pitch of the keyboard by an octave, and can be accessed through the function menu.

  • Page 16: Auto Accompaniment

    AUTO ACCOMPANIMENT The auto accompaniment feature puts a whole backing band at your fingertips. In this mode, all you have to do is play the chords with your left hand and the accompaniment will automatically play along in the style selected, instantly following the chords you play.

  • Page 17: Tempo

    TEMPO Each rhythm style has been set with a default TEMPO tempo. This can be changed using the TEMPO [˅]/ [˄] buttons as required. Press the TEMPO [˅]/[˄] buttons simultaneously to restore the current style’s default tempo setting. ACCOMPANIMENT VOLUME The accompaniment volume can be adjusted, to CHORD keep the desired balance between style and sound...

  • Page 18: Metronome

    METRONOME METRO TEMPO Press the [METRO] button to start and stop the metronome and adjust as required with the TEMPO [˅] and [˄] buttons. Different time signatures can be set in the function menu. FUNCTION Press the [FUNCTION] button to enter the function FUNCTION menu.

  • Page 19: Memory

    MEMORY The keyboard is equipped with 4 memory banks, BANK with each bank containing 4 memory options, M1- M4, allowing you to save your preferred sounds and settings. To save settings, hold down the [STORE] button and then press one of the memory buttons [M1]-[M4] The display will show “Mem Stor”...

  • Page 20: Playing Songs

    PLAYING SONGS The keyboard has 140 in-built songs (refer to song SONGS list appendix.) SONGS To listen to the songs, press the [SONGS] button to enter the song mode. All songs will play in a loop. Press the [SONGS] button again to stop playback. The number keypad and [˅] and [˄] buttons can be used to select songs.

  • Page 21: Recording And Playback

    RECORDING & PLAYBACK The keyboard allows you to record and playback PLAY RECORD your performances. To do this, press the [RECORD] button. The record indicator will appear on the display. SOUND Either play the keyboard or press the [START/STOP] button to start recording. To record the keyboard’s accompaniment, turn on the Fingered Bass Chord PLAY function.

  • Page 22: Sound List

    SOUND LIST Name LCD Name Vibraphone & Harpsichord Vibr&Hrp PIANO Marimba Marimba Acoustic Grand Piano Grandpno Marimba Wide MarimbaW Piano Dark Grdpnd Sine Wave Marimba Marm&Sin Octave Piano Octpno Stereo Marimba MarimbaS Octave Piano 2 Octpno2 Marimba & Vibraphone Marm&Vib Piano &...
  • Page 23 SOUND LIST Name LCD Name Tremolo Strings TremStr Chord Clean Guitar ClnGtCho Tremolo Strings 2 TremStr2 Muted Guitar MutedGtr Pizzicato Strings PizzStr Stereo Muted Guitar MutedGtS Pizzicato Strings 2 PizzStr2 Chord Muted Guitar MutGtCho Orchestral Harp Harp Overdrive Guitar Ovrdrive Orchestral Harp 2 Harp2 Dance Lead...
  • Page 24 SOUND LIST Name LCD Name Lead Sine Wave 2 SinLead2 Tuba 2 Tuba2 Analogue Electric AnaElect Muted Trumpet MuteTrp Slow Square Lead SlowLead Muted Trumpet 2 MuteTrp2 Analogue Classic Lead AnClasLd Horn Horn Thick Square Wave ThickSq Horn 2 Horn2 Lead + Fifth Quint Stereo Synth Brass...
  • Page 25 SOUND LIST Name LCD Name Dawn Wah DawnWah Single Synth SinglSyn Chorus Pad Wah ChoPdWah Analogue Filter AnaFilt Electric Pad ElecPad Analogue Voice AnaVo 5th Pad 5ThPad Analogue Voice 2 AnaVo2 Bowed Pad BowdPad Fifths Lead FifthsLd Bowed Pad 2 BowdPad2 Ninja Ninja...
  • Page 26 SOUND LIST Name LCD Name Deformation Deformat Sci-Fi Sci-Fi WindBells WindBell Artistic Artistic Artistic 2 Artisti2 Artistic 3 Artisti3 Digital Effect DigitaEf Abyss Abyss Abyss 2 Abyss2 Spectrum Spectrum Spectrum 2 Spectru2 WORLD MUSIC Sitar Sitar Sitar 2 Sitar2 Banjo Banjo Banjo 2 Banjo2...

  • Page 27: Style List

    STYLE LIST Name LCD Name Big Band BigBand LATIN 1 Ragtime Ragtime Cha Cha ChaCha Dixieland Dixeland Pop Cha Cha P.ChaCha Quick Step QuickStp Rhumba Rhumba COUNTRY 1 Pop Rhumba P.Rhumba Country Country Bossa Nova Bossa Pop Country PopCntry Tango Tango Country Rock CtryRock...
  • Page 28 STYLE LIST Name LCD Name Slow Waltz-2 SlWaltz2 60’s 8 Beat-2 60's8Bt2 Vienna Waltz-2 ViWaltz2 8 Beat Ballad-2 8BtBld-2 Musette-2 Musette2 8 Beat Rock-2 8BtRck-2 PIANIST 2 16 Beat-2 16Bt-2 Piano 8 Beat-2 Pno8Bt-2 16 Beat Pop-2 16BtPop2 Piano Ballad-2 PnoBald2 16 Beat Shuffle-2 16BtShf2...

  • Page 29: Song List

    SONG LIST Name LCD Name Wiegenlied 2 Wieglid2 CLASSIC Her Bright Smile Haunts Me Still HerSmile Chanson Du Toreador Toreador Old Black Joe BlackJoe Meditation Meditati Old Dog Tray DogTray Wiegenlied WieGenli Are You Lonesome Tonight? Lonesome A Lover's Concerto Concerto Arirang Arirang...
  • Page 30 SONG LIST Name LCD Name Larghetto Largheto Minuet 2 Minuet2 Prelude Prelude Duke Aria From “The Rigoletto” DukeAria Puck Puck The Happy Farmer HpFarmer Etude Etude Dance Of The Four Swans From "Swan Lake" SwanLake Jesus Saviour Pilot Me Jesus Old Macdonald Had A Farm OldAFarm 2-Part Invention No.13 In A Minor BWV 784...

  • Page 31: Specifications

    SPECIFICATION Keys ....61 Touch Sensitive Polyphony ....64 Note Sounds .
  • Page 32 METALLVÄGEN 45A | 195 72 ROSERSBERG | STOCKHOLM | SVERIGE LAHNSTRAßE 27 | 45478 MÜLHEIM AN DER RUHR | DEUTSCHLAND If you have any more questions about this product, please do not hesitate to contact the Gear4music Customer Service Team on: +44 (0) 330 365 4444 or info@gear4music.com...
