Tennsco 1471 Assembly Instructions/Parts Manual

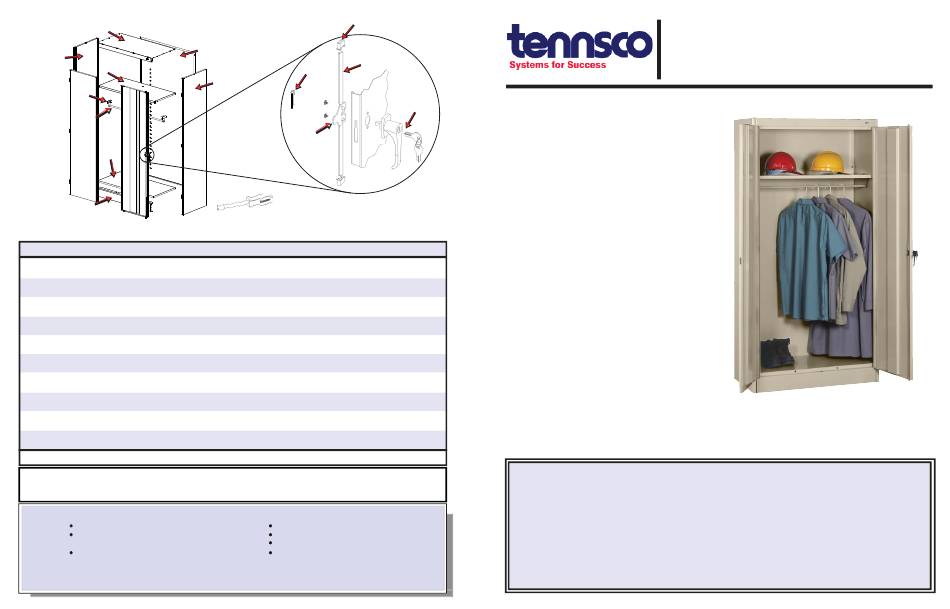

REPLACEMENT PARTS REPLACEMENT PARTS
Top Top
(Ref No. 5) (Ref No. 5)
Back Panel Back Panel
(Ref No. 1) (Ref No. 1)
Left Side Left Side
(Ref No. 2) (Ref No. 2)
Shelf Shelf
(Ref No. 4) (Ref No. 4)
Coat Rod Coat Rod
Bracket Bracket
(Ref No. 17) (Ref No. 17)
Coat Rod Coat Rod
(Ref No. 16) (Ref No. 16)
Bottom Bottom
(Ref No. 7) (Ref No. 7)
Sill Sill
(Ref No. 6) (Ref No. 6)
REF. NO. REF. NO. DESCRIPTION DESCRIPTION
1 Back Panels
2 Left Side
3 Right Side
4 Shelf
5 Top
6 Sill
7 Bottom
8 Left Door
9 Right Door
10 Locking Bar Set
11 Locking Handle w/keys & hardware
12 Locking Cam*
13 Cotter Pin*
14 Locking Bar Guide Insert (Nylon)*
15 Hinge Pin
16 Coat Rod
17 Coat Rod Bracket
18 Tennsco Nut Driver
19 #8-32 x 3 / " bolts* (not shown above)
8
20 #8-32 nuts* (not shown above)
*Included in Ref. No. 13, locking handle with keys and hardware (Part No. 043LH).
Tennsco makes every effort to ensure that all units ship complete with all parts and arrive undamaged. However, should your unit Tennsco makes every effort to ensure that all units ship complete with all parts and arrive undamaged. However, should your unit
contain missing or damaged parts, replacements may be obtained directly from Tennsco. To obtain proper replacement parts, fol- contain missing or damaged parts, replacements may be obtained directly from Tennsco. To obtain proper replacement parts, fol-
low the instructions below: (or fi ll out the form at www.tennsco.com/replacement.cfm) low the instructions below: (or fi ll out the form at www.tennsco.com/replacement.cfm)
TO OBTAIN PROPER REPLACEMENT PARTS, PLEASE PROVIDE THE FOLLOWING INFORMATION: TO OBTAIN PROPER REPLACEMENT PARTS, PLEASE PROVIDE THE FOLLOWING INFORMATION:
Model Number (1471)
Description of part(s) needed and part
number(s) as shown in Parts List (above)
Color (i.e. Medium Grey, etc.)
If requesting parts by telephone, please have as much of the above information ready as possible. f requesting parts by telephone, please have as much of the above information ready as possible.
This information may also be submitted online at www.tennsco.com/replacement.cfm This information may also be submitted online at www.tennsco.com/replacement.cfm
Tennsco Corp., P. O. Box 1888, Dickson, TN 37056-1888 Customer Service: (866) 446-8686 Fax: (800) 722-0134 Tennsco Corp., P. O. Box 1888, Dickson, TN 37056-1888 Customer Service: (866) 446-8686 Fax: (800) 722-0134
Locking Bar Guide Locking Bar Guide
Nylon Insert Nylon Insert
(Ref No. 14) (Ref No. 14)
Locking Bar Set Locking Bar Set
(Ref No. 10) (Ref No. 10)
Cotter Pin Cotter Pin
(Ref No. 13) (Ref No. 13)
Right Side Right Side
(Ref No. 3) (Ref No. 3)
Locking Cam Locking Cam
(Ref No. 12) (Ref No. 12)
Tennsco Nut Driver Tennsco Nut Driver
(Ref No. 18) (Ref No. 18)
QTY. QTY. PART NO. PART NO.
1 944BA
1 944LS
1 944RS
1 301
1 944TO
1 944SI
1 944BO
1 944LD
1 944RD
1 944LB
1 944LH
1 944LC
1 CTRPN
2 944GI
6 944HP
1 046CR
2 045RB
1 TOOL-2
31 **
47 **
**Available Locally
Purchase Date
Your company name and contact person
Who the product was purchased from
Was item missing, or was it damaged?
Locking Handle Locking Handle
with Keys with Keys
(Ref No. 11) (Ref No. 11)

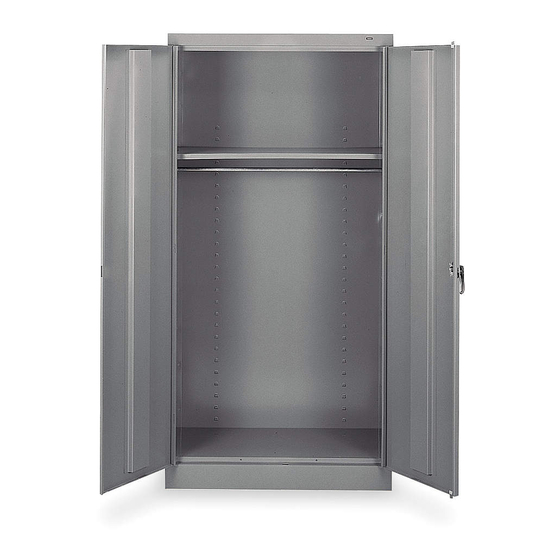

Congratulations on your purchase of a
Tennsco Wardrobe Cabinet! Tennsco's 1471
units provide a level of quality you won't fi nd
elsewhere. They provide secure storage with a
hanging rod for jackets, clothing, and other
hanging garments, along with one shelf for
hats, books, tools, and other general storage.
These cabinets also offer a locking chrome
handle with two keys, and a three-point locking
system for extra security.
Tennsco's cabinets are constructed from top
quality 22 to 24 gauge steel, with 22 gauge
steel shelves, offering weight capacities of up to
200 lbs. per shelf (evenly distributed). Our
attractive and durable powder-coated paint
fi nish will provide for years of service.
Some parts may have sharp edges. CARE must be taken when handling various pieces
to avoid injury. For safety, wear a pair of work gloves when assembling or performing any
maintenance on shelving.
Tennsco warrants goods purchased hereunder to be free of defects in materials and workmanship for a period of one (1) year from the date of shipment,
hereunder. This warranty shall not apply in the event goods are damaged as a result of misuse, abuse, neglect, accident, improper application, modifi cation
or repair by persons not authorized by Seller, where goods are damaged during shipment, or where the date stamps on the goods have been defaced, modi-
fi ed or removed. UNLESS CONSIDERED UNENFORCEABLE OR UNLAWFUL UNDER APPLICABLE LAW:
a. ALL IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO WARRANTIES OR MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE ARE HEREBY EXCLUDED:
b. BUYERS REMEDY, IF ANY, FOR ANY DEFECTIVE GOODS SHALL BE LIMITED TO A REFUND BY SELLER OR REPLACEMENT OF THE
GOODS AT SELLER'S OPTION, AND SHALL IN NO EVENT INCLUDE DAMAGES OF ANY KIND, WHETHER INCIDENTAL, CONSEQUENTIAL
OR OTHERWISE.
NO GOODS ACCEPTED FOR RETURN WITHOUT PRIOR APPROVAL. Seller shall have the right to inspect any goods claimed to be defective at Buyers
place of business or require Buyer to return the goods to Seller for inspection on Seller's premises. Transportation charges covering returned goods will be
borne by Seller only if such goods are proven to be defective, are covered by this warranty and are returned within the warranty period stated above.
ASSEMBLY INSTRUCTIONS & PARTS MANUAL ASSEMBLY INSTRUCTIONS & PARTS MANUAL #1750313
STANDARD WARDROBE CABINET STANDARD WARDROBE CABINET
Unassembled Model 1471 Unassembled Model 1471
Tennsco Corp.
, Dickson, TN 37056-1888 • (615) 446-8000
RETAIN INSTRUCTIONS FOR FUTURE REFERENCE! RETAIN INSTRUCTIONS FOR FUTURE REFERENCE!
