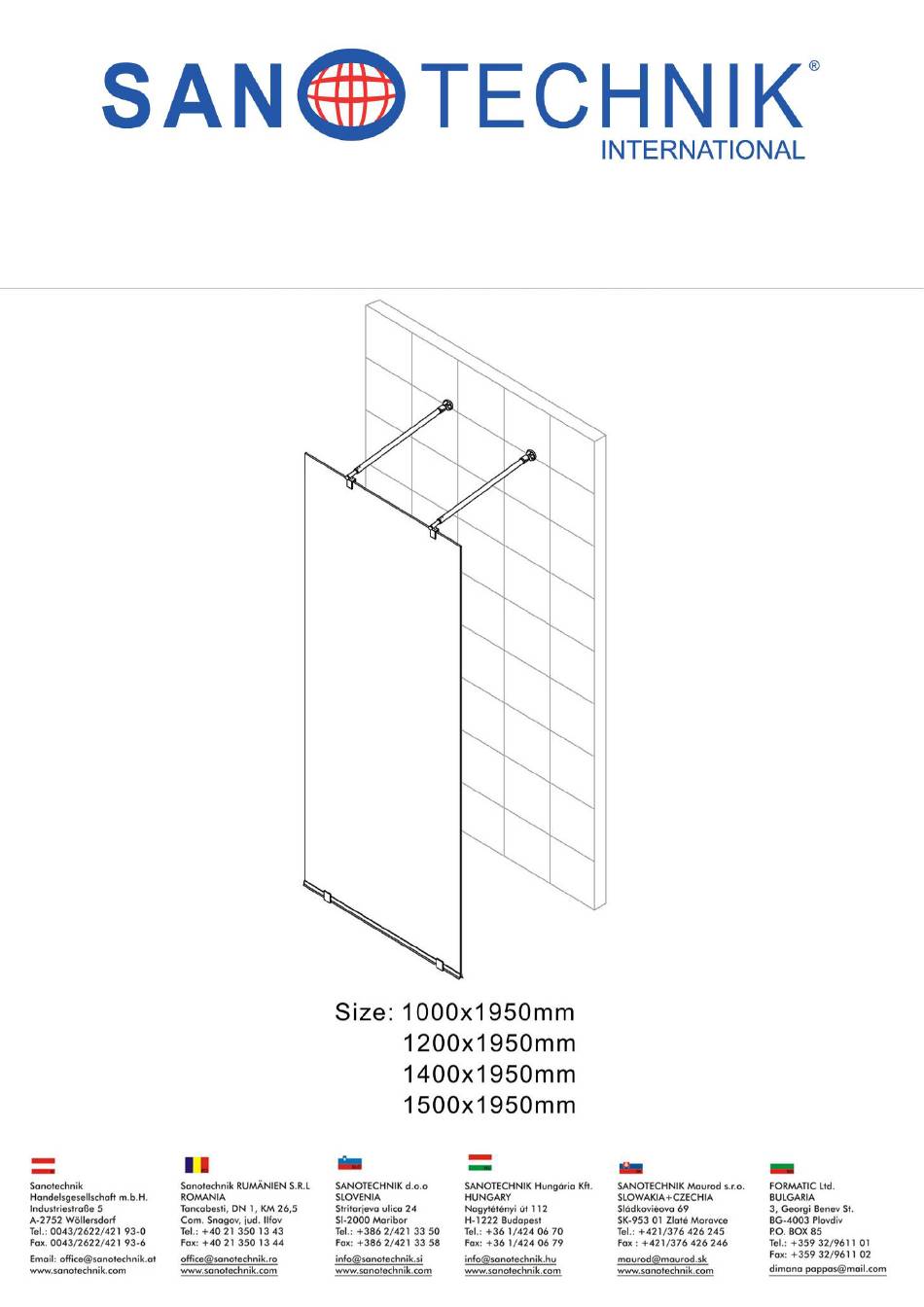

- Page 1 INSTALLATION INSTRUCTIONS N8100 / N8200 / N8400 / N8500...
- Page 2 General Information Please inspect the product immediately upon receipt for transit damage, missing packs/parts or manafactruing fault. Damage reported later cannot be accepted. Please handle the product with care avoiding knocks and shock loading to all sides and edges of the glass Notes : Safety glass can not be re-worked.
- Page 3 Box contents (1) Installation instruction (2) 2 x brackets 2 x wall connect clips 2 x wall plugs 2 x screw M4x30 (3) 2 x wall plugs 2 x screw M4x25 2 x glass clips (4) 1 x water deflector (5) 1 x fixed panel...
- Page 4 Assembly drawing (1) 2 x brackets (5) 2 x screw M4x25 (2) 2 x wall connect clips (6) 1 x water deflector (3) 2 x screw M4x30 (7) 2 x glass clips (4) 1 x fixed panel (8) 4 x wall plugs...
- Page 5 Installation steps...
- Page 6 Ensure wall profile are plumb. Adjust enclosure to be square and level. Wheels should beadjusted to square the doors and ensure smooth running. Allow 24 hours for silicone to dry before use.
