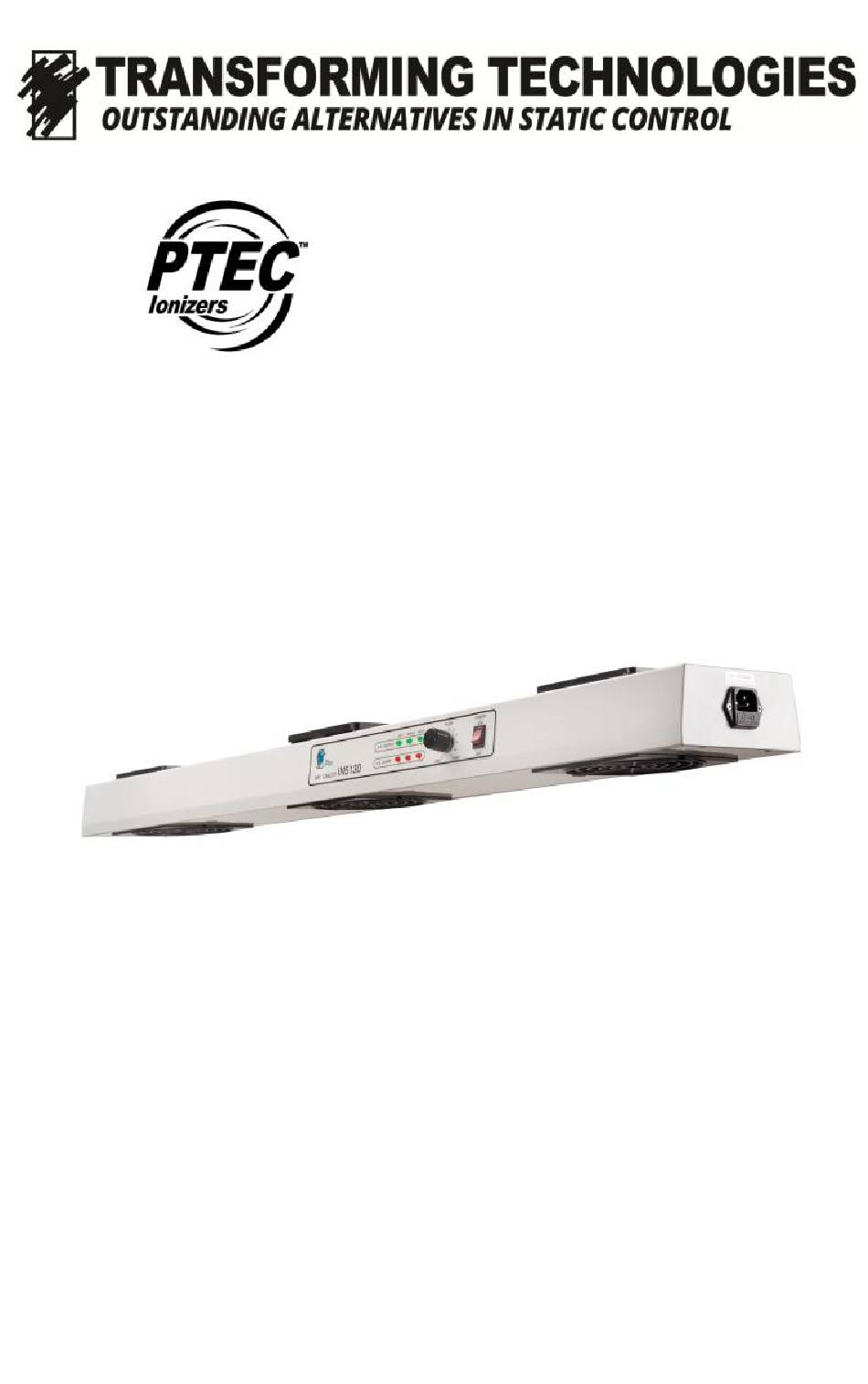

- Page 1 Static Eliminators Overhead Ionizing Blower Model IN5130 Instruction Manual...
-
Page 2: Table Of Contents
Description Model IN5130 About Ptec™ Technology Features Power Requirements Operation and Use Environmental Conditions Set-up and Placement Mounting Power Connection Maintenance Periodic Maintenance Cleaning Exterior Cleaning Emitter Points Emitter Point Replacement Service Troubleshooting Specifications Service and Warranty IN5130 Line Drawing... -
Page 3: Model In5130
Ptec™ technology do not require calibration and only mini- mal maintenance. Features On the front panel of the IN5130 are six LEDs. Three green LEDs indicate that power is applied to each of the three Ptec™ HV transformers. The red LEDs illuminate when an alarm condition occurs. -
Page 4: Power Requirements
+24 VDC @ 1.5 AMP. Operation and Use Environmental Conditions The IN5130 can be operated in areas where humidity is 20-70% RH (Non-condensing). Excess humidity may af- fect ionizer performance. The temperature range for the IN5130 is 65-78°F (18-25°C). -
Page 5: Mounting
Use the IN5130 overhead blower in proximity to a static sensitive area or object. The unit can be mounted on the workstation or attached to a structure using the mounting holes provided. Do not use this ionizer in an explosive environ-... -
Page 6: Maintenance
Periodic Maintenance The only regular maintenance required for the IN5130 is the periodic cleaning of the emitter points and ionizer grills. Emitter point cleaning affects the static de- cay ability of the ionizer and is important for maintaining its optimal performance. -
Page 7: Emitter Point Replacement
Part Number Tungsten replacement emitters 22-6423 Because the IN5130 high voltage output is AC, emitter erosion from the ionization process on the electrodes is minimal. Unless physically broken or stressed, the IN5130 emitters should last the life of the ionizer. -
Page 8: Service
Transforming Technologies’ Technical Support for repair assistance. Troubleshooting The information below provides a reference for prob- lems that may arise with your IN5130 overhead blower. If you have other problems not covered below, please con- tact Transforming Technologies’ Technical Support for repair assistance... -
Page 9: Specifications
Specifications 100-240VAC, 50/60 Hz, 36W Power input Un-fused, 0.5A or 1.0A max. Power outlet AC, 68KHz Ion Emission +/- 10 volts, typical offset Balance 1000V - 100V < 6 seconds at 24" Decay Time 66-78°F (19-25°C) Temperature 20-60% RH (non-condensing) Humidity 115 x 3 CFM, typical, high speed Airflow... -
Page 10: Service And Warranty
Service and Warranty Transforming Technologies, LLC provides a lim- ited warranty for the Model IN5130 overhead blower. All new products are guaranteed to be free from defects in material and workmanship for a pe- riod of one (1) year from the date of shipment. Li-... -
Page 11: In5130 Line Drawing
IN5130 Line Drawing... - Page 12 3719 King Rd | Toledo, OH 43617 | P: 419-841-9552 | F: 419-841-3241 | info@transforming-technologies.com...
