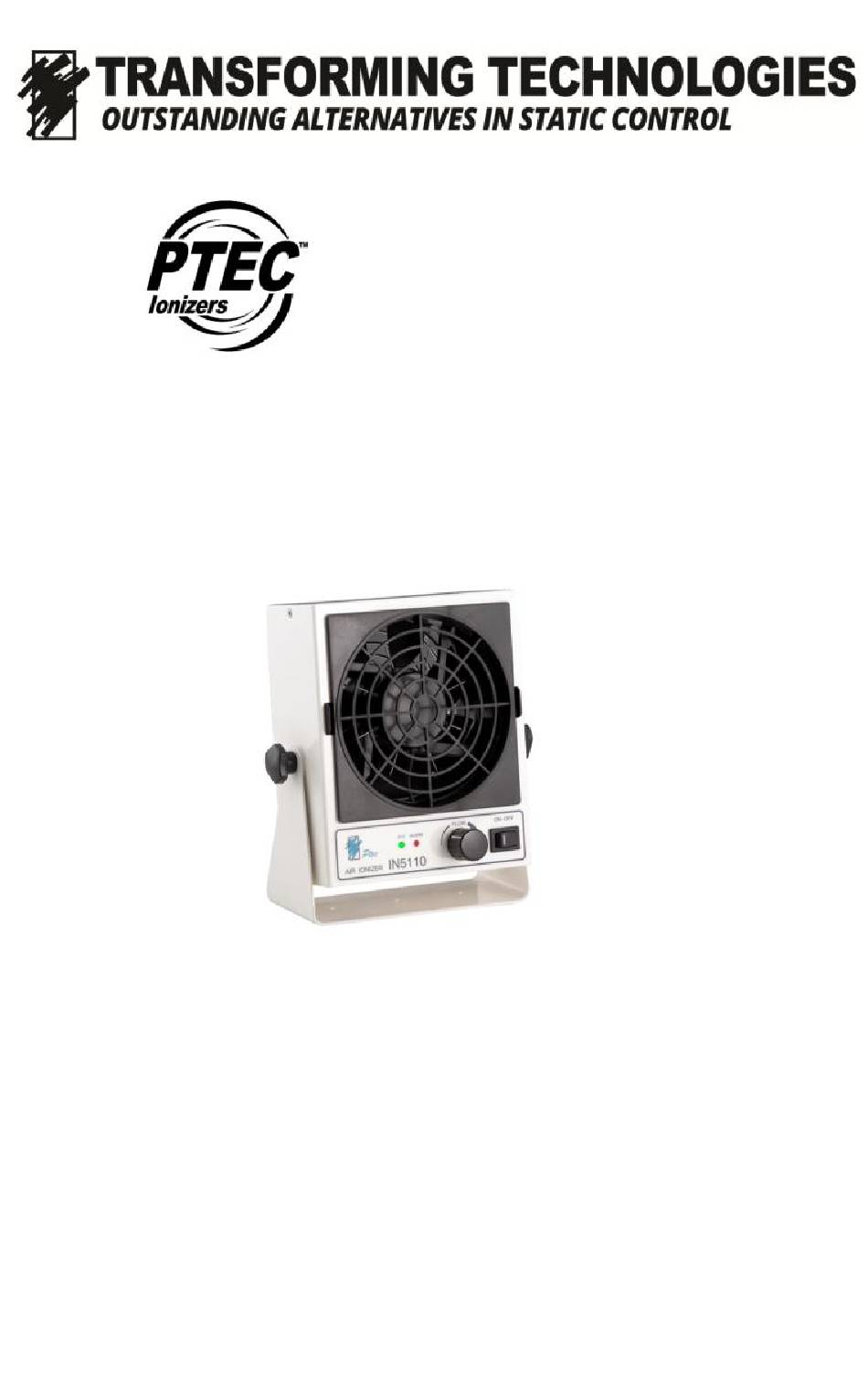

- Page 1 Static Eliminators Bench Top Ionizing air nozzle Model IN5110 Instruction Manual...
-
Page 2: Table Of Contents
Model IN5110 About Ptec™ Technology Features Power Requirements Operation and Use Environmental Conditions Set-up and Placement Power Connection Maintenance Periodic Maintenance Cleaning Exterior Cleaning Emitter Points Emitter Point Replacement Bracket Removal Service Troubleshooting Specifications Service and Warranty IN5110 Line Drawing... -
Page 3: Model In5110
Ionizers that use Ptec™ technology do not require calibration and only minimal maintenance. Features On the front panel of the IN5110 are two LEDs. The green LED indicates that power is applied to the unit. The red LED is illuminated when an alarm condition occurs. A variable fan speed control, on-off switch, and removable finger guard are also on the front panel. -
Page 4: Power Requirements
DC switching power sup- ply that operates from 100-240 VAC 50/60 Hz. The output of the supply is +24 VDC @ 500 mA. The IN5110 blower operates on an input of +24 VDC, Operation and Use Environmental Conditions The IN5110 can be operated in areas where humidity is 20-70% RH (Non-condensing). -
Page 5: Set-Up And Placement
Corona ionizers produce a weak plasma that can cause ignition in explosive environ- ments. Use the IN5110 benchtop blower in proximity to a static sensitive area or object. The unit can be set on the workstation or mounted to a structure, using the u- shaped mounting bracket and hardware. -
Page 6: Maintenance
The only regular maintenance required for the IN5110 is the periodic cleaning of the emitter points and ionizer grill. It is recommended that the IN5110 be cleaned once a month. Emitter point cleaning affects the static decay ability of the ionizer and is important for maintaining its optimal performance. -
Page 7: Emitter Point Replacement
Tungsten replacement emitters 22-6423 Replacement Filter 22-6450 Because the IN5110 high voltage output is AC, emitter erosion from the ionization process on the electrodes is minimal. Unless physically broken or stressed, the IN5110 emitters should last the life of the ionizer. -
Page 8: Bracket Removal
Transforming Technologies’ Technical Support for repair assistance. Troubleshooting The information below provides a reference for prob- lems that may arise with your IN5110 benchtop blower. If you have other problems not covered below, please con- tact Transforming Technologies’ Technical Support for repair assistance... -
Page 9: Specifications
Specifications 24 VDC, 12W Power input unfused, 0.5A or 1.0A max. Power outlet Ion Emission AC, 68KHz +/- 10 volts, typical offset Balance 1000V - 100V < 2 seconds at 1 foot Decay Time 66-78°F (19-25°C) Temperature 20-60% RH (non-condensing) Humidity 115 CFM, typical, high speed Airflow... -
Page 10: Service And Warranty
Service and Warranty Transforming Technologies, LLC provides a lim- ited warranty for the Model IN5110 benchtop blower. All new products are guaranteed to be free from defects in material and workmanship for a pe- riod of one (1) year from the date of shipment. Li-... -
Page 11: In5110 Line Drawing
IN5110 Line Drawing... - Page 12 3719 King Rd | Toledo, OH 43617 | P: 419-841-9552 | F: 419-841-3241 | info@transforming-technologies.com...
