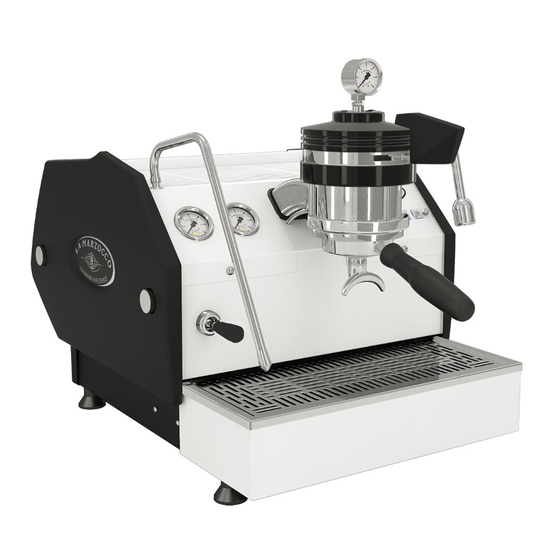

La Marzocco GS3 Installation Manual
Connected machine
Hide thumbs
Also See for GS3:
- Installation manual ,
- Owner's manual (68 pages) ,
- Programming manual (31 pages)
Advertisement
Quick Links
Advertisement
Related Manuals for La Marzocco GS3
Summary of Contents for La Marzocco GS3
- Page 1 connected machine installation guide...
- Page 2 GS3 CONNECTED MACHINE RETROFIT KIT step one turn machine off and unplug for safety...
- Page 3 GS3 CONNECTED MACHINE RETROFIT KIT step two Remove electronic board box. First, remove the screws on the rear of the GS3, then remove the rear panel as well as the left and right panels.
- Page 4 GS3 CONNECTED MACHINE RETROFIT KIT step three OPEN THE BOARD BOX Remove the screws to open the board box. Remove the white/red and white/blue wires from the main power switch.
- Page 5 GS3 CONNECTED MACHINE RETROFIT KIT step four REMOVE CONNECTORS AND BOARD FROM THE BOX Disconnect all the connectors from the board, labelling them pri- or. Including how the SSR’s are wired. Then remove the 4 x screws holding the board in place, then remove the board. Remove all the connections from the SSR’s and capacitor in order to free up the...
- Page 6 GS3 CONNECTED MACHINE RETROFIT KIT step five INSTALLING THE GATEWAY Place the gateway as shown on the picture. Use the 4 holes of the gateway in order to mark the position of the holes that we need to drill on the board box.
- Page 7 GS3 CONNECTED MACHINE RETROFIT KIT step six INSTALLING THE GATEWAY Insert the screws through the bottom of the board box and hand tight the 4 supports with the round section at the top. Install the gateway, then install the provided screws (x4) to...
- Page 8 GS3 CONNECTED MACHINE RETROFIT KIT step seven INSTALLING THE NEW BOARD Install the new board using the screws previously removed. Then, reconnect all the connections in the same locations as the old board.
- Page 9 GS3 CONNECTED MACHINE RETROFIT KIT step eight INSTALLING THE NEW BOARD Connect the flat ribbon cable from the new board to the gateway. Reconnect all the connections to the SSR’s and capacitor...
- Page 10 GS3 CONNECTED MACHINE RETROFIT KIT step nine CONNECT THE NEW CAPACITOR The capacitor has the terminals labelled on the base of it. Using the included wire tree, connect the corresponding connectors to the relevant terminals. Install the capacitor on the right frame with a...
- Page 11 GS3 CONNECTED MACHINE RETROFIT KIT step ten CONNECT THE NEW CAPACITOR Connect the black and white cable from the capacitor to the open terminals on the switch. Plug the male connectors from the ca- pacitor into the two connectors that were previously on the switch,...
- Page 12 GS3 CONNECTED MACHINE RETROFIT KIT PLEASE NOTE GS3AV machines prior to SN5379 and GS3MP machines prior to SN5419 will have button arrangements different than the current button locations, and will need either a new display/button pad assembly or button decals depending upon the state of the current assembly.
- Page 13 GS3 CONNECTED MACHINE RETROFIT KIT...
