Summary of Contents for OPTICOM CC03-2VF
- Page 1 Installation Manual CC03-2VF Camera CC03-2VF Installation Manual Opticom Technologies Inc. USA Sales: Battle Creek, Michigan: 800-578-1853 www.opticomtech.com Canada: Head Office (Vancouver): 855-569-3240 www.toughestvideocamera.com March 2016...
-
Page 2: Important Safety Instructions
TO REDUCE THE RISK OF IGNITION DO NOT OPEN WHEN AN EXPLOSIVE GAS ATMOSPHERE MAY BE PRESENT. DISCLAIMER: Opticom Technologies Inc. will not be responsible for injuries or damages resulting from the improper installation or use of any product sold by Opticom Technologies Inc. their agents, distributors or dealers. Opticom Technologies Inc. -
Page 3: Camera Description

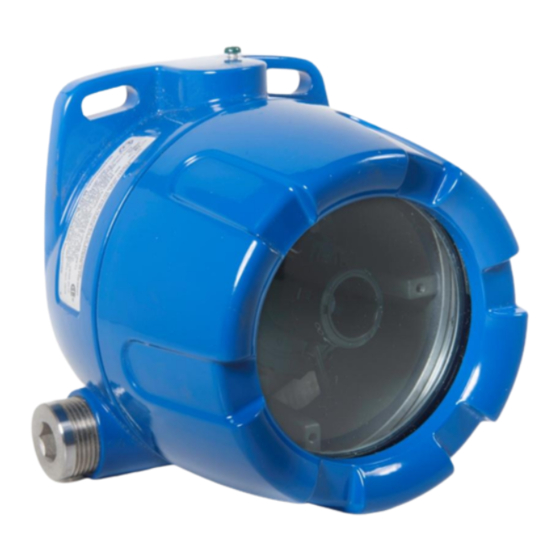

Installation Manual CC03-2VF Camera CAMERA DESCRIPTION • 1/3" SONY ExView HAD II CCD Image Sensor • 3.7~12mm Varifocal Auto-Iris Lens • 700 TV Lines Resolution • Minimum Illumination 0.01 Lux / F1.2 • -40F ~ 122F (-40C ~ 50C) Operating Temperature •... -
Page 4: Housing Dimensions
Installation Manual CC03-2VF Camera HOUSING DIMENSIONS Mounting Lugs Opticom Technologies Inc. USA Sales: Battle Creek, Michigan: 800-578-1853 www.opticomtech.com Canada: Head Office (Vancouver): 855-569-3240 www.toughestvideocamera.com March 2016... -
Page 5: Installation
Installation Manual CC03-2VF Camera INSTALLATION Install with the appropriate hardware to suit the mounting surface. Select a suitable location that is protected from accidental damage or tampering, and environmental conditions that could exceed the camera’s general specifications. Ensure the selected location is protected from falling objects, accidental contact with moving objects, and unintentional interference from personnel. -
Page 6: Set Screw
Installation Manual CC03-2VF Camera ELECTRICAL During installation, it is important to attach a 10 AWG copper stranded wire (minimum requirement) from the earth ground attachment point on the unit to an appropriate grounding location for your installation. The camera is powered by 12VDC using LVT connected the 2.1mm power jack. - Page 7 CC03-2VF Camera LENS FOCUSING Removing the housing cover allows access to the varifocal lens adjustment screws. The CC03-2VF camera module is equipped with a 3.7~12mm varifocal lens allowing for a viewing angle of between 70 º and 22 º approximately. There are two adjusting screws below the infrared assembly.
-
Page 8: Camera Specifications
Installation Manual CC03-2VF Camera Camera Specifications CC03-2VF Image Sensor 1/3" SONY ExView HAD II CCD Resolution 700 TV Lines Illumination 0.01 Lux / F1.2 S/N Ratio More than 48 dB (AGC Off) Lens 3.7 ~ 12.0mm Varifocal Electronic Shutter Auto (1/60sec ~ 1/100,000sec)
