ENGLISH

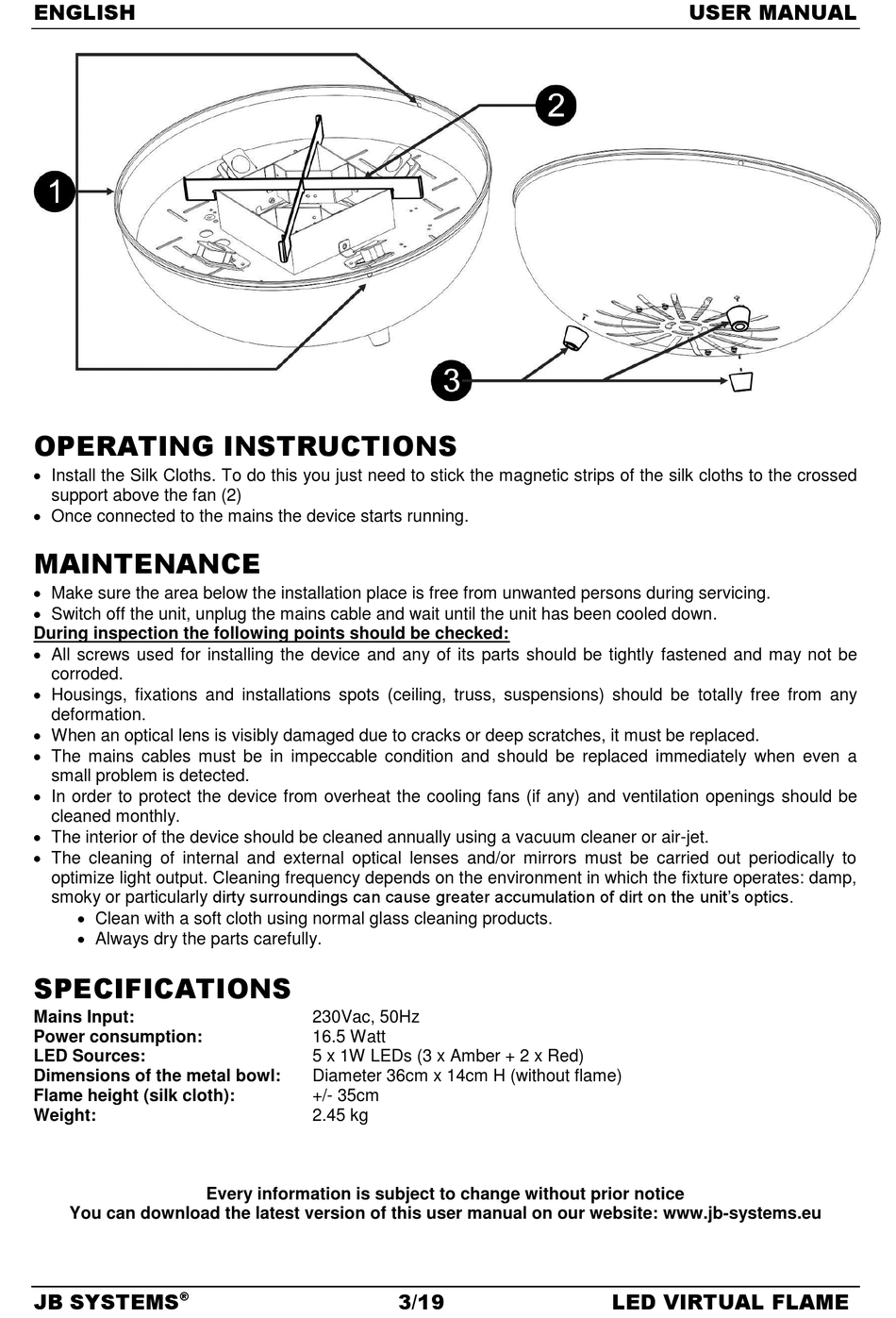

OPERATING INSTRUCTIONS
 Install the Silk Cloths. To do this you just need to stick the magnetic strips of the silk cloths to the crossed
support above the fan (2)
 Once connected to the mains the device starts running.

MAINTENANCE

 Make sure the area below the installation place is free from unwanted persons during servicing.
 Switch off the unit, unplug the mains cable and wait until the unit has been cooled down.
During inspection the following points should be checked:
 All screws used for installing the device and any of its parts should be tightly fastened and may not be
corroded.
 Housings, fixations and installations spots (ceiling, truss, suspensions) should be totally free from any
deformation.
 When an optical lens is visibly damaged due to cracks or deep scratches, it must be replaced.
 The mains cables must be in impeccable condition and should be replaced immediately when even a
small problem is detected.
 In order to protect the device from overheat the cooling fans (if any) and ventilation openings should be
cleaned monthly.
 The interior of the device should be cleaned annually using a vacuum cleaner or air-jet.
 The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to
optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp,
smoky or particularly dirty surroundings can cause greater accumulation of dirt on the unit's optics.
 Clean with a soft cloth using normal glass cleaning products.
 Always dry the parts carefully.

SPECIFICATIONS

Mains Input:
Power consumption:
LED Sources:
Dimensions of the metal bowl:
Flame height (silk cloth):
Weight:
You can download the latest version of this user manual on our website: www.jb-systems.eu
JB SYSTEMS
®
230Vac, 50Hz
16.5 Watt
5 x 1W LEDs (3 x Amber + 2 x Red)
Diameter 36cm x 14cm H (without flame)
+/- 35cm
2.45 kg
Every information is subject to change without prior notice
3/19
USER MANUAL
LED VIRTUAL FLAME
