Manrose FAN6882 Installation Instructions

INSTALLATION INSTRUCTIONS AND HOLE-CUTTING TEMPLATE
Dear customer,
Thank you for selecting MANROSE. Please read all instructions before commencing installation.
WARNING - ALL WIRING MUST BE CARRIED OUT BY A REGISTERED ELECTRICIAN
1. Use this SATIN heat-fan-light unit only as described in this manual. Any other use not
recommended by the manufacturer may cause fire, electric shock, or injury to persons.
If you have questions, contact the manufacturer or local agent.
2. All wiring must be carried out by a Licensed Electrician in accordance with all national wiring
codes.
3. Make sure the power is isolated before installing.
4. When cutting into the ceiling, do not damage electrical wiring and other hidden utilities.
5. The SATIN heat-fan-light unit must be properly earthed.
6. The lamps are hot when in use. Do not touch the infrared lamps when in use.
7. Precautions must be taken to avoid the back-flow of gases into the room from the open flue of
gas or other open-fire appliances when mounted in outside walls or soffits.
8. The SATIN heat-fan-light unit must be isolated from the power by means of a plug or a switch
capable of disconnecting all poles with a contact separation of at least 3mm in each pole.
9. The power cable must be rated for a minimum 10A inductive load.
10. The appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their safety.
11. Children should be supervised to ensure that they do not play with the appliance.
IMPORTANT CONSIDERATIONS BEFORE INSTALLING
A few minutes of planning can make a big difference to the installation time and ultimate
satisfaction with the functioning of the unit.
1. The unit should not be installed directly above a shower or bathtub. The unit must not be
installed in a position where water may splash onto the lamps.
2. The unit must not be installed beneath a fixed electrical socket.
3. The unit is designed for installation in flat ceilings only. Do not mount it on a sloping ceiling or a
vertical wall.
4. The infrared lamps are most effective when you are standing directly beneath them, so generally
the unit would be mounted above a place where you would stand to dry yourself.
5. For the exhaust fan to work efficiently, replacement air of a volume equivalent to what is being
extracted must be able to enter the room. Generally this air would be drawn under the door.
If the room is airtight, the fan will not exhaust air efficiently.
6. Before commencing any cutting, check in the ceiling space that there are no obstructions such
as ceiling joists and that there is sufficient height clearance for the housing. Check that the
electrical wiring can be routed from the wall switches to the mounting location.
INSTALLATION
1. Locating the SATIN Heat-Fan-Light unit
For the purpose of obtaining the best heating effect from the lamps there should be at least
2.3m overall height from unit to ground.

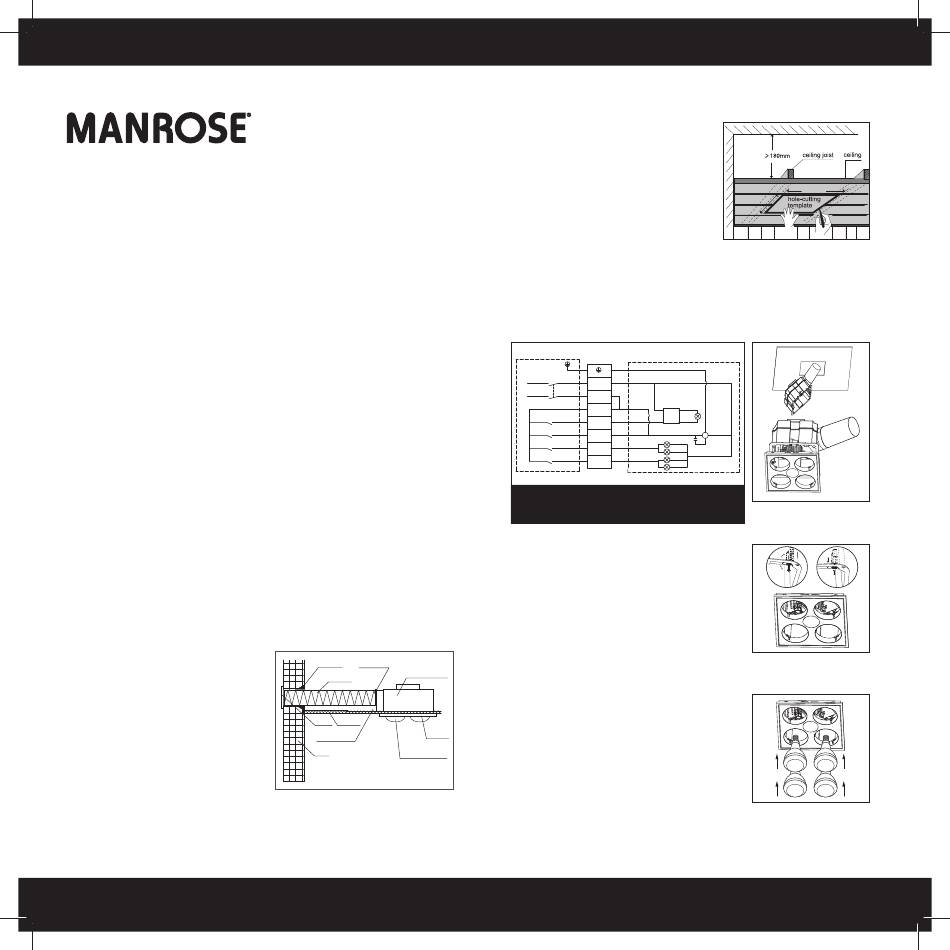

2. Prepare the ceiling
Select the mounting position for the unit.
Check that it is possible to route the ducting
from the unit to the outside of the house.
This will generally be to the soffit but can be
to a wall outlet location (as pictured).
Use this hole-cutting template to mark the
hole on the ceiling. Make sure a distance
between the edges of the unit and wall is
no less than 250mm. There should be a
minimum 220mm vertical distance between
the ceiling and roof.
Read and save these instructions!
SATIN
FAN6882/FAN6883
sealant
duct clip
heat-fan-light
duct
grille ceiling
fascia
ceiling joist
wall
infrared lamps
3. External Grille
Locate the position for the external grille and cut a
130mm diameter hole. Connect one end of the
125mm diameter duct to the spigot of the external
grille.
Note: Since the length of each duct is 3.0m, make
sure the centre of the installation hole is no more
than 3.0m from the vent.
Note: In order to get an effective ventilation, it is
suggested that the duct is no more than 3.0m in
length.
Caution: Use appropriate safety PPE when cutting
fibre cement products.
4. Wiring
Connect one end of the interconnecting wire to the wall switch panel, and bring the other end
out of the hole in the ceiling. Open the terminal block cover on the unit's housing, make the
connection as per the wiring diagram instruction below, then reposition the terminal block
cover. Press excess wire back into the ceiling.
Note: Ensure that the power is isolated before carrying out any work on electrical installations.
N
N
L
L
L
thermostat LED power
driver
LIGHT
K1
FAN
K2
HEAT
K3
heat lamp
HEAT
K4
WARNING
Failure to connect a permanent live connection to the
Heat-Fan-Light will result in failure of critical safety features
5. Fit the tie-in into the fan outlet in the housing with
Ø125mm duct clip. Fit the in-house end of the duct to
the fan outlet, and fix the end with duct tap.
Note: Keep the route as straight as possible.
6. Position the housing into the hole
Insert the unit into the square hole being sure to pull the
side clips inward so that the body can pass through the
hole without damaging the plaster. Rotate the swing
clips to hold motor body in place then tighten screw to
let the clip clamp onto the ceiling board.
7. Final Installation
1. Reconnect the LED downlight.
2. Replace the Fascia
Replace the fascia and retaining springs.
3. Replace the Lamps
Ensure the lamps are tightened sufficiently to make
good electrical contact. Clean the lamps and fascia.
4. Fix the Switch Panel to the Wall
Fit the switch panel onto the wall, ensuring that in
this position it is not subjected to splashed water.
Note: The switch wiring should be routed inside the
wall. If it is necessary to run the wiring on the outside
of the wall, use a suitable conduit and fixings to
properly locate and hold the wiring used.
Please take this card as hole cutting template 320mm x 320mm
320mm
320mm
Motor
M
~
C
