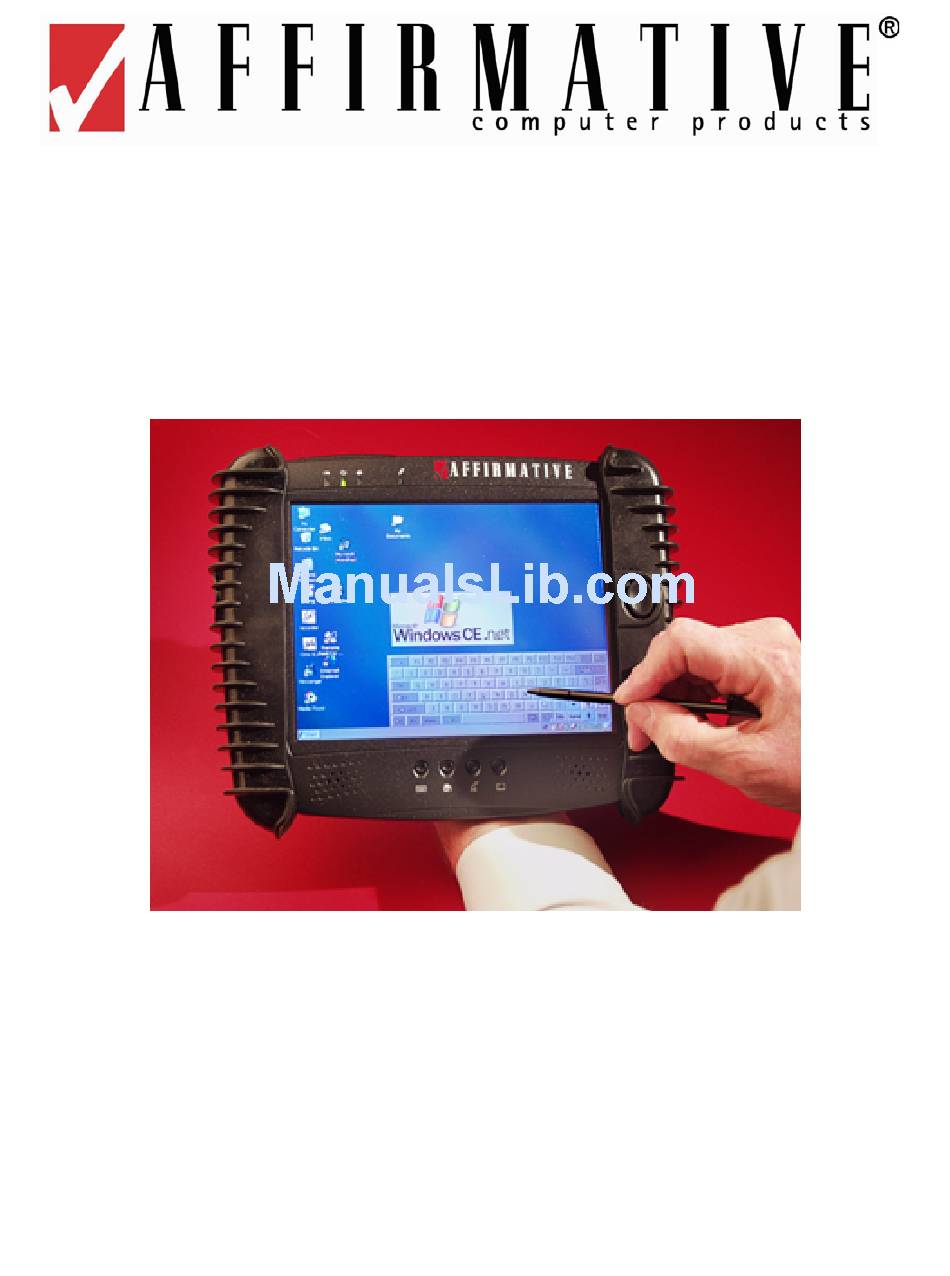

Page 1 YEStablet 7375 Wireless Digital Tablet User Guide Affirmative Computer Products 202 South River Drive, Tempe AZ 85281 Phone (480) 946-1444 Fax (480) 946-9250 Web Site: www.affirmative.net March 2004...
Page 2 Affirmative Computer Products and the user. This device is not designed for operation in an explosive environment. If the user is in an explosive environment, the unit should be removed from the area immediately.
Page 3: Table Of Contents
Start Up ...9 Calibration...9 Right-Mouse Click ...10 Configuring Your Tablet ...10 Brightness ...10 Button Settings ...10 Input Panel...11 Network and Dialup Connections...11 PC Connection...11 Power...11 Registries Save/Restore ...12 Remote Manager Setting..12 Stylus ...12 System ...12 Update ...12 YEStablet 7375 User Guide...
Page 4 YEStablet 7375 User Guide Wireless Network Card ...12 Reading and Sending E-mail...13 Accessing the Internet with the Internet Explorer...13 Operating with the Cradle ...14 Other Features of Interest ...15 OPERATION NOTES ...17 Wireless Network Card and Antenna System ...17 Battery and Power Management ...17 Power (Reset)/Suspend Button...17...
Page 5 Play a Recorded Keystrokes Sequence (Macro)...63 Modify a Printer Passthrough Driver...64 General...64 Transcode Table...65 Escape Sequences ...66 Euro...67 Font ID...68 APPENDIX 1. CISCO AIRONET WLAN ADAPTER ...69 APPENDIX 2. LIST OF ACCESSORIES ...73 APPENDIX 3. OPTIONAL EXTERNAL BATTERY PACK...75 YEStablet 7375 User Guide...
Page 6 YEStablet 7375 User Guide APPENDIX 4. OPTIONAL EXTERNAL BATTERY CHARGER KIT ...77 APPENDIX 5. COMPACTFLASH BAR CODE SCANNER...79 Configuration...79 APPENDIX 6. USING THE WALL-MOUNT AND VEHICLE-MOUNT ACCESSORIES ...81 Wall-Mount Cradle...81 Vehicle-Mount Stand ...82 APPENDIX 7. USING THE CUSTOM CARRYING POUCH ...83 APPENDIX 8.
Page 7: Certifications And Limited Warranty
Affirmative Computer Products reseller. Should the product fail to conform to this warranty during the period set forth herein, Affirmative Computer Products will, at its option, repair or replace the product at no additional charge. As such, Affirmative Computer Products may exchange the product with a product that is new or that has been manufactured from new, reconditioned, or re-manufactured parts.
Page 8: Warranty Coverage
Affirmative Computer Products obtains on products purchased. Software Warranty Affirmative Computer Products warrants that, for a period of ninety (90) days from the date of purchase by the End User, its Software Products shall conform to its published specifications under normal usage. AFFIRMATIVE COMPUTER PRODUCTS DOES NOT WARRANT THAT THE OPERATION OF THE SOFTWARE WILL BE UNINTERRUPTED OR ERROR FREE, OR THAT ALL SOFTWARE DEFECTS WILL BE CORRECTED.
Page 9 Uniform Commercial Code and other applicable law. Affirmative Computer Products reserves the right to change its warranty policy at any time. Such new warranty shall immediately take effect and apply to products sold and distributed after the date of such change in warranty.
Page 10: Copyrights And Trademarks
Affirmative Computer Products • YEStablet™ is a trademark of Affirmative Computer Products • ® YESterm/IP  i s a trademark of Affirmative Computer Products • ® Microsoft is a registered trademark of Microsoft ® •...
Page 11: Caution: Failure To Comply May Result In Serious Injury
Unwanted lithium ion battery packs may be returned to the battery manufacturer for disposal. 7375 Enclosure Dismantling or opening the device enclosure or case will void warranty and may possibly cause electric shock. Avoid wet environments.  YEStablet 7375 User Guide...
Page 12: Caring For The 7375
Operating Temperature: 0-40 degrees Celsius (32-104 degrees Fahrenheit) • Humidity: 0-90% CAUTION: Loss of Product Warranty Warning. Removing the back cover can void product warranty. Do not attempt to remove the back cover of your 7375; contact Affirmative Computer Products for service assistance.
Page 13: Getting Started
GETTING STARTED Thank you for purchasing the Affirmative Computer Products YEStablet Model 7375. Before you use this device, please read this manual for setup procedures, safety precautions, and other important information. Please review the Contents even if you are an experienced user. If you have any problems, contact Customer support at support@affirmative.net.
Page 14 YEStablet 7375 User Guide THIS PAGE INTENTIONALLY LEFT BLANK...
Page 15: Technical Specifications
Touching with non-recommended objects and exposing to moisture may damage screen. Use only the provided stylus to operate the touch screen; avoid touching with your fingers, as oil from your skin can be difficult to remove. YEStablet 7375 User Guide—Technical Specifications...
Page 16: Other Input Devices
(Any bar code scanner with a USB keyboard output is expected to work with the 7375—except Metro Logic) • Transparent Protective Screen Cover NOTE: Due to the customizable nature of the 7375, it may be possible to integrate other devices not included in this list with the unit. Contact Affirmative Computer Products for more information.
Page 17: Front-View Layout
- Push and Hold to Power Off (hold for 4+ seconds until display goes off) the tablet; then Push to restart and complete (Cold) Boot process Mouse right click Inactive for more information. YEStablet 7375 User Guide—Technical Specifications DC-IN Jack (to-AC-DC) Default Action...
Page 18 YEStablet 7375 User Guide THIS PAGE INTENTIONALLY LEFT BLANK...
Page 19: Requirements
NOTE: The WLAN network connectivity icon changes appearance as in the following: Connection Established (Blinking icon indicates activity) • NOTE: You will not see any of the above icons in the Taskbar if the network adapter is not detected or supported by the 7375. YEStablet 7375 User Guide—Requirements Connection Lost...
Page 20 YEStablet 7375 User Guide Wireless network adapter > Wireless Information tab > Advanced button > Wireless Networks tab. Wireless network adapter > IP Information tab > Details button.
Page 21: Operation
NOTE: You can recalibrate at anytime using Start” "soft keyboard" button (the left-most one on the bottom side of your tablet) AND the "left-edge" button of the 4- way navigation switch (located at the front right of your tablet) simultaneously. YEStablet 7375 User Guide--Operation “Settings” “Control Panel”...
Page 22: Right-Mouse Click
YEStablet 7375 User Guide Right-Mouse Click There are three ways to execute a right-mouse click: • Select the mouse icon on System Tray. The system will automatically switch back to Left-mouse mode after a single use in Right-Mouse Button mode or by selecting the mouse icon again on the Taskbar.
Page 23: Input Panel
Device Status. Some devices, such as the Cisco Aironet wireless adapter, have settings for power consumption, and this tab shows the current settings. Some devices show up in this window even if their power consumptions are not adjustable. System Tray. TECHNICAL SPECIFICATIONS|Recommended Accessory Device YEStablet 7375 User Guide--Operation...
Page 24: Registries Save/Restore
A Registry Save will also occur automatically if the 7375 is operating on battery power and reaches the end of the battery life Remote Manager Setting. This utility is not supported at this time. But remote central administration is available using Affirmative Computer Products’ YESmanager, which is not dependent upon this setting. Stylus •...
Page 25: Reading And Sending E-Mail
The IE browser in CE .NET is based on the IE 5.5 engine. • You may wish to examine and manipulate your browser configuration options through Internet Explorer > View > Internet Options to optimize your experience. YEStablet 7375 User Guide--Operation...
Page 26: Operating With The Cradle
YEStablet 7375 User Guide Operating with the Cradle The 7375 is complemented by a desktop Cradle for support; pass-through charging; connection of selected USB peripherals, and communication with a PC. On the cradle, you will find a DC-in jack for the AC-DC adapter, a USB (Type B) port for a USB cable connection to PC or laptop, and two USB Type A ports for connection to input devices.
Page 27: Other Features Of Interest
Desktop icon (Citrix ICA) to connect to a Citrix Terminal Server. o Activate “Remote Desktop Connection” from the Desktop to connect to a Microsoft Terminal Server (2000 or 2003) or to a PC running Microsoft Windows XP Pro. “Terminal Client” “Citrix ICA” OR activate YEStablet 7375 User Guide--Operation...
Page 28 YEStablet 7375 User Guide • Word Processing Windows CE .net provides the WordPad (similar to Pocket Word) word processing application. This is included with the 7375. • Voice Recorder To use this application, one of the programmable buttons must be reprogrammed to Recorder...
Page 29: Operation Notes
Reset/Power Off will clear your firmware settings and data if they are not properly saved to flash memory (See for reference). Push again on Suspend for a brief moment to restart/reboot the tablet. Appendix on FAQ YEStablet 7375 User Guide—Operation Notes Button Function APPENDIX...
Page 30: System Tray Functions
YEStablet 7375 User Guide Low Battery Condition A warning message will be generated during a Low Battery situation and the 7375 will shortly thereafter be placed into (Forced) Suspend mode if operation continues without external supply of power. After the 7375 enters the (Forced) Suspend mode due to the Low Battery condition: •...
Page 31: File Transfer And Storage
If you install a CompactFlash storage card in your 7375, it will appear in the file system as My Computer\Storage Card. Whenever you are given a storage browse option, this folder will be available. You can, of course, create subfolders if you wish. YEStablet 7375 User Guide—Operation Notes...
Page 32: Usb-Attached Storage
Therefore, installing files in this fashion is best suited to testing new applications or utilities in the 7375 environment. For permanent availability and usage of new software, contact Affirmative Computer Products to arrange a custom firmware build including your new firmware.
Page 33: Firmware Update
FTP server, or through the cradle USB Type B port. For all methods, you must first perform the following: 1. Download the latest-version firmware from the Affirmative Computer Products web site, per the Affirmative Computer Products Technical Support instructions.
Page 34: Cradle Usb
The PC must also have the utility software, 7375_usb_update.exe, available in a folder. You can obtain this utility from Affirmative Computer Products Tech Support. This utility is used to select and coordinate the OS image to be sent to the client (7375) side. After all the required software is installed, execute the following procedure: 1.
Page 35: Tablet Registry
1. Press and hold the Suspend button for more than 4 seconds to completely turn off the power. 2. Press the Suspend button again to turn on the power and quickly (BEFORE the display shows the Affirmative logo) press and hold the Virtual Keyboard button simultaneously.
Page 36 YEStablet 7375 User Guide THIS PAGE INTENTIONALLY BLANK...
Page 37: Yesterm Ip Terminal Emulation
YESterm IP terminal emulation provides powerful Telnet TN5250e and TN3270e TCP/IP display and printer solutions developed by Affirmative Computer Products. These emulations provide YEStablet 7375 users with the capability to connect to AS/400, iSeries, 3290, and zSeries host computers via the TCP/IP protocol over Local Area Networks and Wide Area Networks.
Page 38: Display Session Characteristics
YEStablet 7375 User Guide Display Session Characteristics • IBM emulations supported: 5251, 5291, 3180-2, 3196, 3278/9, 3477-FC/FG, 5251, 5291. • Includes numerous resident national keyboard templates and Code Pages. • Includes enhanced keyboard mapping and customization, using Shift, Caps Lock, Alt, Ctrl, function keys, etc.
Page 39 If you are adding a TN3270e session, you will see a choice of 3278/9 terminal types here. • Device Name: If you are using named sessions, enter the session name here. YEStablet 7375 User Guide—YESterm IP Terminal Emulation Display Setup Screen #1 Display Setup Screen #2...
Page 40: Display Session Configuration
YEStablet 7375 User Guide • Host Code Page: Choose the applicable country from the drop-down list. • Keyboard Type: It is recommended that you choose the default 101 Terminal keyboard type. This concludes the setup parameters covered by the wizard. However, you can configure many more parameters in each Display Session by highlighting the connection name in the YESterm IP Administrator window and activating Edit.
Page 41: Connection
You will have to reconnect the session after the adapter has connected to the access port. General YEStablet 7375 User Guide—YESterm IP Terminal Emulation Connection Properties Sheet General Properties Sheet...
Page 42: Code Page
Note: Since the virtual keyboard does not support a RightControl key, it is recommended that the Enter command be remapped to the End keys even though this is not the default. Typically, this remapping will already be done when you receive a new YEStablet 7375. Edit Activate this button to initiate custom keyboard mapping.
Page 43: Default
Keyboard Buffer. This option enables Typeahead, but this option is of little use with a virtual keyboard. • Keyboard Clicker. If this option is enabled, you can hear an enhanced click every time you tap a key on the keyboard. YEStablet 7375 User Guide—YESterm IP Terminal Emulation Keyboard Options Dialog Box for more information.
Page 44: Attributes
YEStablet 7375 User Guide • Error Message Beep. If this option is enabled, you can hear a "Beep" when an input error is made. • System Message Beep. If this option is enabled, you can hear a "Beep" when a message is received from the Host.
Page 45 Hot Spots or are unfamiliar with the default Function Key and Option Hot Spots. Display Emulation Screen with Standard View and Hot Spots Either view can be overridden from the emulation screen Toolbars if desired. YEStablet 7375 User Guide—YESterm IP Terminal Emulation...
Page 46: Attribute Settings (Standard View Only)
YEStablet 7375 User Guide Attribute Settings (Standard View Only) Set the appearance of the attribute font on the screen. This includes properties such as foreground and background color, blinking, underscore, and the use of column separators. You will see a preview of the “new look” in the Sample field.
Page 47 If Standard View is selected in the Advanced tab or the emulation screen Toolbars, Hot Spots are invisible until the stylus cursor is dragged over them, and then only the one under the stylus cursor becomes visible. YEStablet 7375 User Guide—YESterm IP Terminal Emulation...
Page 48 YEStablet 7375 User Guide Emulation Screen with Standard View and Hot Spots NOTE: Standard View is not recommended because, in Standard View, Hot Spots are visible only when the stylus is positioned directly over the Hot Spot. Advanced View connects Hot Spots to full-time visible buttons, making the Hot Spot feature more intuitive and easier to use.
Page 49: Key Pad
YEStablet 7375 User Guide—YESterm IP Terminal Emulation 4. From the drop-down list, select the command or the Recorded sequence that you want to associate to the Hot Spot. 5. Specify the text search start columns in c.80 and c.132. 6. Click on Accept.
Page 50 YEStablet 7375 User Guide To Edit a Key Pad button: 1. Select the Function Key you want to modify from the Button Label list. 2. Click on Edit. 3. If you want to send a Text String to the host every time you press the Function key, type it into the Text String field.
Page 51: Sign On (Tn5250E Only)
YEStablet 7375 User Guide—YESterm IP Terminal Emulation Sign On (TN5250e Only) The Sign On feature of the emulator uses the "Enhanced Display Auto-Signon and Password Encryption" feature of the AS/400 to allow a secure connection to the AS/400 without using SSL.
Page 52: Advanced
YEStablet 7375 User Guide Advanced The Advanced property sheet allows enabling/disabling of several useful features. Appearance • Show Menu and Toolbar. If you want to eliminate the “Windows” look, uncheck this box. In addition to changing the appearance, this will also prevent the user from using Hot Spots or Key Pad, and from viewing the keyboard mapping.
Page 53: Host Device Connection
YEStablet 7375 User Guide—YESterm IP Terminal Emulation Host Device Connection When using named devices, careless name assignment or unusual session activation circumstances, such as a power failure/reconnect, can cause two sessions to request the same name. In such a case, the host will not open the second session.
Page 54: Printer Session Setup
YEStablet 7375 User Guide Printer Session Setup You can have multiple local printers, either physically attached via USB or virtually attached over the TCP/IP network, but you must create a printer session for each one. Setup and configuration are initiated from the YESterm IP Administrator window.
Page 55 This concludes the configuration parameters covered by the wizard. However, you can customize many more parameters in each Printer Session by highlighting the connection name in the YESterm IP Administrator and activating Edit. YEStablet 7375 User Guide—YESterm IP Terminal Emulation Printer Screen #2 Final Printer Setup Screen...
Page 56: Printer Session Configuration
YEStablet 7375 User Guide Printer Session Configuration Open YESterm IP Administrator, highlight a printer session, and click on Edit. For TN5250e sessions, you will see a Printer Sessions Properties sheet with six properties tabs. For TN3270e sessions, you will see a Printer Sessions Properties sheet with four properties tabs.
Page 57: Connection (Tn3270E)
Boot. But you may find this of little value, since typically the session will report a failed connection because it takes several seconds after bootup for the wireless adapter to connect to an access port. YEStablet 7375 User Guide—YESterm IP Terminal Emulation Connection Properties Sheet for TN3270e...
Page 58: Input (Tn5250E)
YEStablet 7375 User Guide Input (TN5250e) The Input tab allows you to define specific parameters that affect the appearance of the printed page. Note: If you are using Host Print Transform (see Advanced), the Input settings do not apply. Language YESterm IP supports a number of different Code Pages.
Page 59: Input (Tn3270E)
YEStablet 7375 User Guide—YESterm IP Terminal Emulation Input (TN3270e) Input Properties Sheet for TN3270e Language YESterm/IP supports a number of different Code Pages. The Code Page selected here from the drop-down list should be the same as that configured on the mainframe for the specific device. Ignore the Code Page Edit button, since Code Page editing is not supported in the 7375.
Page 60: Output
Form Feed command is sent to the printer. Printer Driver The Passthrough Drivers offered here, specifically developed by Affirmative Computer Products, generate a standard text data stream. This means that everything is sent to the printer in text mode allowing better control of the printer and better performance.
Page 61: Printer Port
Ignore the Parallel Port and COM1/2 radio buttons, even though they are not grayed out. Only LAN or USB printers can be used with the YEStablet 7375, since there are no LPT or COM ports. No configuration is necessary here for a USB printer, but you must configure LAN printers.
Page 62: Hex Passthrough (Hpt) (Tn5250E Only)
YEStablet 7375 User Guide • LPR printer. If there is an LPD printer on your network, you can make this selection and enter the appropriate parameters. • RAW printer. If you have a network printer that can take direct print stream input without being LPD-ready, make this selection and enter the appropriate parameters •...
Page 63: Advanced (Tn5250E Only)
Customizing Object Name. Enter the object name here if you have chosen *WSCTS from the Printer drop-down list. • Customizing Object Library. Enter the object library name here if you have chosen *WSCTS from the Printer drop-down list. YEStablet 7375 User Guide—YESterm IP Terminal Emulation Advanced Properties Sheet for TN5250e...
Page 64: Miscellaneous
YEStablet 7375 User Guide Miscellaneous • Security Configuration. Default mode is to hide the Properties entries from the Tool bar and the Menu bar so that the user cannot make configuration changes. Check this box if you wish to provide user access to the configuration parameters.
Page 65: Display Session Operation
1. Use the stylus cursor to draw a box around the area to be copied. Be precise when you draw the box, or else the paste process may try to copy the data into a restricted area. The selected area will be highlighted in white. YEStablet 7375 User Guide—YESterm IP Terminal Emulation Display Session Menu Bar Display File Menu Display Session Configuration.
Page 66: Tools
YEStablet 7375 User Guide 2. Open the Edit menu. 3. Activate Copy. Note: Copy does not duplicate host attributes such as color and intensity. 4. Return the stylus cursor to the green screen and click. The white highlight will disappear.
Page 67: View
Toolbar (t). This toggle command hides or displays the Menu and Button toolbars. When the bars are hidden, you will see a Menu button in the upper left corner. Click on this button to reveal the toolbars again. YEStablet 7375 User Guide—YESterm IP Terminal Emulation Recorded Macro Delete Dialog Box View Menu...
Page 68 YEStablet 7375 User Guide • Ruler (r). This toggle command hides or displays the crosshairs Ruler. When the command is checked, the Ruler is displayed. • Attributes (a). This command is not applicable in the 7375. • Advanced View. This toggle command activates/deactivates the graphics Windows look, with Hot Spots displayed as raised buttons if they have been enabled.
Page 69: Button Bar
The command/button definitions are: Connect. Duplicates the function of the menu Disconnect. Duplicates the function of the menu Print. Duplicates the function of the menu YEStablet 7375 User Guide—YESterm IP Terminal Emulation ? Drop-Down Menu Display Emulation Screen Buttons Bar File|Connect command.
Page 70 YEStablet 7375 User Guide Properties. Duplicates the function of the menu File|Properties command. Start Recording. Duplicates the function of the menu Tools|Start Recording command. In fact, if you use the menu version, you will see that this button is also depressed.
Page 71 YEStablet 7375 User Guide—YESterm IP Terminal Emulation I, II, III, IV. These buttons correspond to the emulation sessions shown in order in the YESterm IP Administrator window. Inactive sessions will have corresponding grayed-out buttons, while buttons for active sessions will not be...
Page 72: Printer Session Operation
YEStablet 7375 User Guide Printer Session Operation Menu Bar Menu commands of the Printer Session window consist of commands and functions that are unique for each printer window (session). Open the desired menu by clicking on the menu name. You can also view the File menu by pressing and releasing the Alt key.
Page 73: Button Bar
YEStablet 7375 User Guide—YESterm IP Terminal Emulation About… (a). This command displays detailed information on the YESterm IP program such as version, copyrights, and other useful information. Button Bar The Button bar is displayed across the top of the application window to the right of the Menu bar. The Button bar provides quick access to commands you use on a regular basis.
Page 74: How To
YEStablet 7375 User Guide How To… Create a Custom Keyboard Map To do this, select, in Configuration|General, one of the available Keyboard Layouts (the one that Display Session best matches the one you want to create) and click on Edit. Assuming that you chose the 101 terminal keyboard for U.S.
Page 75: Record A Keystrokes Sequence (Macro)
YEStablet 7375 User Guide—YESterm IP Terminal Emulation From the Action drop-down list, you can select the action that you want to associate with the selected key from among the following options: No operation. No action will be performed when you press the key.
Page 76: Modify A Printer Passthrough Driver
YEStablet 7375 User Guide Modify a Printer Passthrough Driver Any Passthrough Driver in the Printer Session Configuration|Output|Printer Driver drop-down list can be customized, and it is also possible to create a new Driver. To edit an existing Passthrough Driver, do the following: 1.
Page 77: Transcode Table
Customize the Escape sequence used to call the Code Page. Select the Code Page from the list, activate Edit, and an Edit Passthrough Sequence dialog box will appear where you can enter the new value. Transcode Edit Passthrough Sequence Dialog Box The Edit Code Page button is not applicable in the YEStablet 7375.
Page 78: Escape Sequences
YEStablet 7375 User Guide Escape Sequences Driver Escape Sequences Properties Sheet This sheet allows you to customize all the Escape commands used to perform specific functions. Select a function, activate Edit, and an Edit Passthrough Sequence dialog box will appear. Make your changes there.
Page 79: Euro
YEStablet 7375 User Guide—YESterm IP Terminal Emulation Euro Driver Euro Properties Sheet This sheet allows you to customize the Escape command used to print the Euro symbol. This special function allows you to print the Euro symbol even on those printers that are not Euro ready. Select the command you wish to customize, then activate Edit, and an Edit Passthrough Sequence dialog box will appear where you can enter the new value.
Page 80: Font Id
YEStablet 7375 User Guide Font ID Driver Font ID Properties Sheet This sheet allows you to customize the Escape commands used to call a Printer Font that has been associated with a Host System Font ID. To edit a Font ID, select the item, activate Edit, and an Edit Font ID and Sequence dialog box will appear where you can enter the new value.
Page 81: Appendix 1. Cisco Aironet Wlan Adapter
The following figures highlight the access to the utilities, the parameters that are configurable, and the features that may be monitored. YEStablet 7375 User Guide—Cisco Aironet WLAN Adapter In general, when the WLAN network adapter is detected, the 802.1x, zero-configuration support offered by Windows CE .NET invokes a set of windows to define and...
Page 82 YEStablet 7375 User Guide ACU Status Tab Adapter Profile Setup...
Page 83 YEStablet 7375 User Guide—Cisco Aironet WLAN Adapter Adapter’s Network Connection Information Disabling the Network Adapter...
Page 84 YEStablet 7375 User Guide THIS PAGE INTENTIONALLY LEFT BLANK...
Page 85: Appendix 2. List Of Accessories
Protective Jacket and Shoulder Strap Custom designed and fitted to protect your Tablet, and for convenience in mobile operation Enhanced Cradle Assembly Tablet storage and support with ports to DC power, PC systems, and input devices. YEStablet 7375 User Guide—List of Accessories...
Page 86 YEStablet 7375 User Guide Part Number 9379 9381 9384 Description Vehicle Mounting Stand Vehicle- and platform-mountable structure offers tablet storage and security. Automobile Power Adapter (12V) Use with power outlets in vehicles to facilitate tablet usage and/or battery recharge. Screen Protectors for 8.4" Display (10 sheets per package) Replaceable custom-fitted screen protectors shield your display screen from fingerprints, scratches and dust, while maintaining comfortable input.
Page 87: Appendix 3. Optional External Battery Pack
YEStablet 7375 User Guide—Optional External Battery Pack APPENDIX 3. OPTIONAL EXTERNAL BATTERY PACK The external battery pack (Figure 1) for the 7375 is intended to add at least 130% to the battery capacity of the internal battery pack. It is hot-swappable and attaches to the upper rear of the 7375 in the area around the corresponding electrical contact pins.
Page 88 7375 Operation Guide THIS PAGE INTENTIONALLY LEFT BLANK 375V0503.0123...
Page 89: Appendix 4. Optional External Battery Charger Kit
3. Remove the protective patch on the cradle to expose the connector interface that matches with the battery pack to be charged (Figure 3). YEStablet 7375 User Guide—Optional External Battery Charger Kit Figure 3: Battery Cradle with protective patches removed.
Page 90 YEStablet 7375 User Guide 4. Attach the battery pack to the battery cradle (Figure 4). Figure 4: Insertion of 7375 External Battery Pack. 5. The charging (Yellow) LED lights up if the battery pack is being recharged. 6. When charging is complete or if the battery pack is fully charged, the LED will show solid Green.
Page 91: Appendix 5. Compactflash Bar Code Scanner
The support for these USB-based scanners is also likely to be “plug-and-play”, without any need for custom device drivers. YEStablet 7375 User Guide—CompactFlash Bar Code Scanner Configuring Your Tablet|Button...
Page 92 7375 Operation Guide THIS PAGE INTENTIONALLY LEFT BLANK 375V0503.0123...
Page 93: Appendix 6. Using The Wall-Mount And Vehicle-Mount Accessories
The functionality with other USB peripherals may be subject to validation on a case-by-case basis. Please also consider the USB port on the 7375 tablet as an available and effective option. YEStablet 7375 User Guide—Using the Wall-Mount and Vehicle-Mount Accessories...
Page 94: Vehicle-Mount Stand
YEStablet 7375 User Guide Assembly Notes: The Mountable Cradle may be bundled with a set of lower extension brackets to offer added elegance and convenience in the deployment of the 7375. Its use is optional. This kit comprises front (A) and rear (B) brackets with matching screws provided.
Page 95: Appendix 7. Using The Custom Carrying Pouch
YEStablet 7375 User Guide—Using the Custom Carrying Pouch APPENDIX 7. USING THE CUSTOM CARRYING POUCH The custom carrying pouch for the 7375 is developed to provide fit and functionality with the tablet inserted. The current design features a retainer section with a fold down cover. The elastic-bound retainer features cutouts on a hard cover for operation with the tablet in place.
Page 96 YEStablet 7375 User Guide THIS PAGE INTENTIONALLY LEFT BLANK...
Page 97: Appendix 8. Using The Screen Protectors
YEStablet 7375 User Guide—Using the Screen Protectors APPENDIX 8. USING THE SCREEN PROTECTORS Custom-fitted screen protectors are offered as an accessory for the 7375. These are designed to preserve user experience while offering the user peace of mind in using the touch display.
Page 98 YEStablet 7375 User Guide THIS PAGE INTENTIONALLY LEFT BLANK...
Page 99: Appendix 9. Frequently Asked Questions & Troubleshooting Guide
The tablet comes with a protective jacket and a shoulder strap – what do they offer and how do I use them? The tablet comes with a desktop cradle – what are its functions? YEStablet 7375 User Guide—FAQ & Troubleshooting Guide...
Page 100: Starting Up
YEStablet 7375 User Guide FEATURES What do all the buttons do? What do all the lights mean? How do I perform a ‘right-click’ function? What other hardware/software can I use with the 7375? The Virtual Keyboard won’t show up or go away.
Page 101 - With the AC-DC adapter still connected, push on the Suspend button located along the left edge and hold on for over 4 seconds. Release the Suspend button. Then push on the Suspend button briefly. If all the steps above fail to turn on the tablet then you should contact Affirmative Computer Products for further guidance.
Page 102: Powering On/Off
You will need to press the Suspend button again briefly to power the unit back on. If you continue to have problems turning the tablet off, contact Affirmative Computer Products for support. NOTE: The Reset/Power Off and subsequent restart of the tablet by briefly engaging the Suspend button is often referred to as Cold Boot of the tablet.
Page 103: Battery
The optional external battery pack takes about 3 to 4 hours to fully recharge from a depleted state. You will have a longer charging time if the tablet is active or if the display is left on. YEStablet 7375 User Guide—FAQ & Troubleshooting Guide Power (Management) Schemes Window...
Page 104 YEStablet 7375 User Guide What are the possible tablet states and how do they relate to the battery status? Refer to the following Battery LED and Status Table. Battery Status Battery LED Fully Charged Green Charging Slow Blinking Green Fully Charged or Good...
Page 105: Applications
YEStablet 7375 User Guide—FAQ & Troubleshooting Guide the timed entry by the tablet into power saving modes. Go to Control Panel > Power > Schemes and choose timings based on Battery Power or AC Power schemes. Is there an advised practice for charging the tablet battery packs? The battery packs are constructed with Lithium-ion cells.
Page 106 YEStablet 7375 User Guide How do I get onto the Internet? You need the following: • (Wireless) connection to network • Network connection to Internet Service Provider (ISP) • 7375 configuration In general, the 7375 has to be configured to communicate to a wireless Access Point on the local network which in turn has to have a (broadband or dialup) modem connected to the Internet as supported by the ISP.
Page 107: Peripherals And Accessories
Human Interface Device. Most track-balls, mice, and keyboards work without problems. Please consult Affirmative Computer Products if you wish to know if other specific USB peripherals or accessories work with the 7375.
Page 108 Internet, email, and Local Area Networks (LANs). If you have made a specific request for Affirmative Computer Products to install a particular type of driver or a particular piece of software, it will already be installed on your 7375 when it ships to you. This feature ensures that if there are any problems with the 7375 at any time, you will not have to reload the software on the machine, but simply reset the unit.
Page 109 Shared network storage on a PC (Windows 95 and above) on the same subnet as the tablet. • Attached file to Inbox email. OPERATION NOTES|File Transfer and Storage NOTE: To save files in local or network storage, use Edit>Copy/Paste in the My Computer view. YEStablet 7375 User Guide—FAQ & Troubleshooting Guide for details.
Page 110: Care And Support
No. At this time, the combination of hardware and firmware characterizing the 7375 is not capable of supporting 802.11a or 802.11g network adapters. Affirmative Computer Products may be able to advise you of alternative or pending solutions that may offer such support.
Page 111: Appendix 10. Tcp/Ip Error Codes
YEStablet 7375 User Guide—TCP/IP Error Codes APPENDIX 10. TCP/IP ERROR CODES Here is a comprehensive list of standard TCP/IP error codes that can occur during network operation. Some of them are quite esoteric and may not be applicable to YEStation operation, but this list should include any networking error code that you encounter.
Page 112 YEStablet 7375 User Guide 10045 Operation not supported. 10046 Protocol family not supported. 10047 Address family not supported by protocol family. 10048 Address is already in use. If you attempt to set up a server on a port that is already is in use, you will get this error.
Page 113 YEStablet 7375 User Guide—TCP/IP Error Codes 10065 The IP address of the host is unreachable from your terminal. Check IP addresses of host, terminal, and gateway. 10067 Too many processes. 10091 Network subsystem is unavailable. 10092 Unsupported version of WINSOCK.DLL.
Page 114 YEStablet 7375 User Guide THIS PAGE INTENTIONALLY LEFT BLANK...
Page 115: Index
Cisco Aironet, 4, 11, 69, 98 Cleaning, 98 CompactFlash, 3, 7, 9, 19, 73, 79, 87, 94, 95, 97 Configuration loss, 98 configuration settings loss, 21, 89, 93 YEStablet 7375 User Guide—Index Cradle desktop, 14 mountable assembly notes, 82 wall mount, 81...
Page 116 Saving configuration settings, 9, 12, 23, 41, 52, 88, 90, 92, 93, 98 files, 19, 90, 92, 97 Screen cover, 4, 85 Shoulder strap, 95 Soft keyboard, 96 Software development support, 20 installation, 20 synchronization, 20 Storage external, 19, 81, 87, 95 internal, 19 network, 19, 97 USB, 19, 20, 97...

Affirmative YEStablet 7375 User Manual

Certifications and Limited Warranty

Copyrights and Trademarks

Caution: Failure to Comply May Result in Serious Injury

Caring for the 7375

Getting Started

Technical Specifications

Requirements

Operation

Operation Notes

Yesterm Ip Terminal Emulation

Appendix 1. Cisco Aironet Wlan Adapter

Appendix 2. List of Accessories

Appendix 3. Optional External Battery Pack

Appendix 4. Optional External Battery Charger Kit

Appendix 5. Compactflash Bar Code Scanner

Appendix 6. Using the Wall-Mount and Vehicle-Mount Accessories

Appendix 7. Using the Custom Carrying Pouch

Appendix 8. Using the Screen Protectors

Appendix 9. Frequently Asked Questions & Troubleshooting Guide

Appendix 10. Tcp/Ip Error Codes

Index

Quick Links

Need help?

Questions and answers

Related Manuals for Affirmative YEStablet 7375

Summary of Contents for Affirmative YEStablet 7375

Table of Contents
