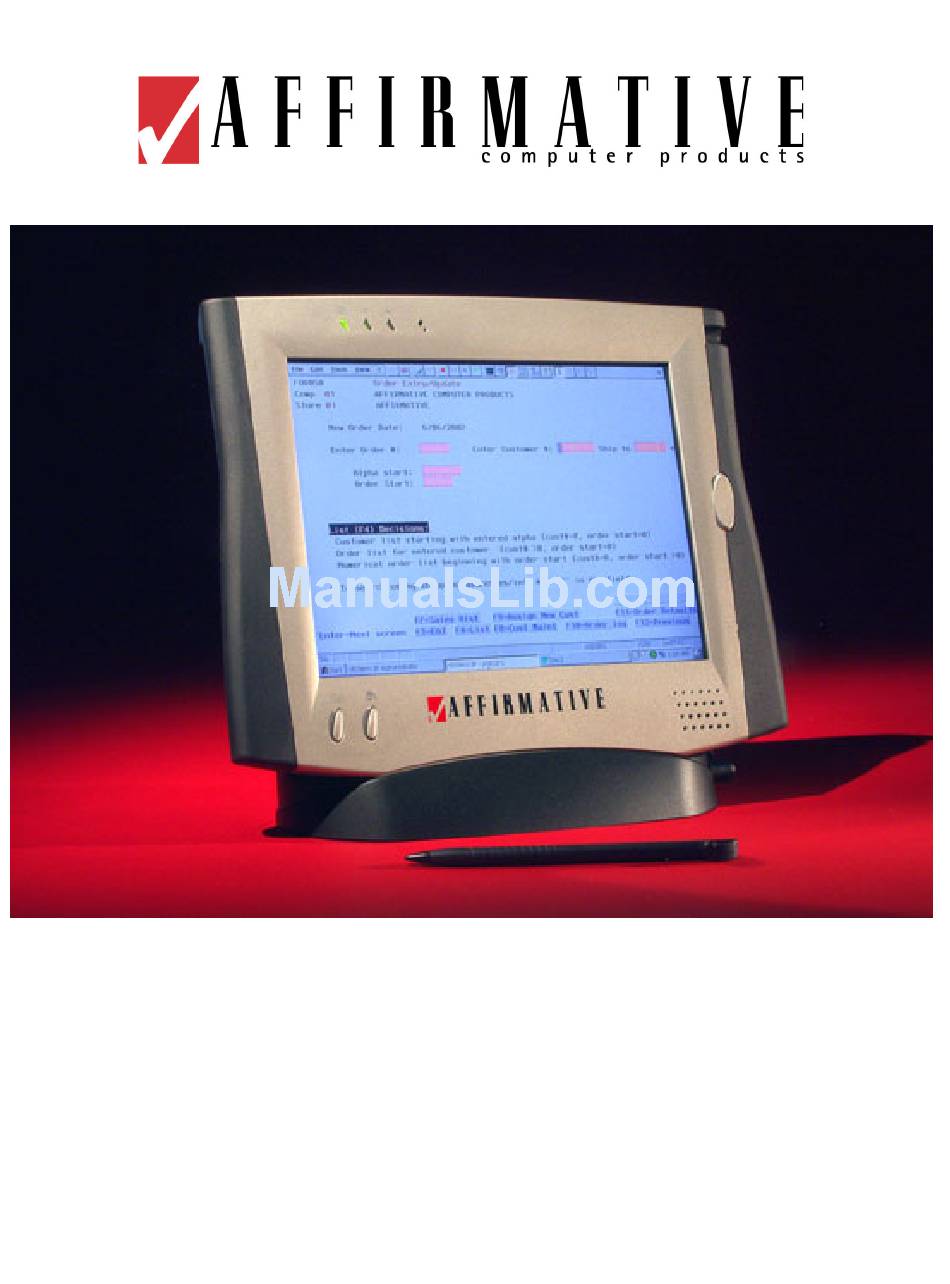

- Page 1 ® YEStablet Model 7380 USER’S GUIDE Copyright 2003 Affirmative Computer Products ® September 2003...
-
Page 2: Button Functions
Front-View Layout Button Functions Button Functions Location Soft Keyboard Left Most Bottom “Home” URL Next to “Soft Keyboard” Rocker key Right Front Right Edge Side Sleep mode Power off/on Right Edge Side *Note: You may recover from Sleep mode by tapping on the touch screen or by a Push/Quick Release of the Power Switch. -
Page 3: Package Contents
7380. Other wireless communication protocols will be supported in the near future. Notes in setting up the 802.11b-based wireless communication • The YEStablet 7380 and an 802.11b basestation may work together right out of the box but this will depend on the network environment connected to the access point or gateway. -
Page 4: Operation
The power LED on the YEStablet 7380 will then turn green indicating that the YEStablet 7380 is ready to use. To turn the YEStablet 7380 off, push and hold the power switch for about 4 seconds: the power light and display will go off. A beep will also sound. You can also use soft controls for Power mode and Sleep mode access –... - Page 5 Gateway). In addition, you may have to specify additional “WINS” or “DNS” in “Name Servers”. Then click on “OK” at the top of the window for confirmation. vii) Now, you may need to set up a user name, password and Domain. Click “Identification” in Network Configuration window, input your “Name”, “Password”...
-
Page 6: Reading And Sending E-Mail
1. When you want to surf the web, click on “Internet Explorer” in the Desktop screen -- the YEStablet 7380 will display the default web site (for example, MSN). You can change the default web site by using “View” in the menu bar, then Internet Options. - Page 7 You may perform a reset to the YEStablet 7380 in the unlikely event of device lock-up. The reset button is located in a recess cavity on the back cover of the YEStablet 7380. Push on the button with a thin cylindrical object to activate the reset. The device will be turned off and you will need to restart the device.
- Page 8 Emulator Session Configuration Double-click on the desktop YESterm IP icon to open the Administrator. After choosing either a YESterm IP display or a YESterm IP printer emulation, a wizard will guide you through configuration. You can have a maximum of four emulation sessions. See the YESterm/IP_CE User Guide for details YESterm IP Display 1.
- Page 9 • Output: Set your printer response timeout period here. Select LAN Printer as your Output Port (this is the only one that works) and configure it here. • Advanced: If you wish to use Host Print Transform, configure it here. SUPPORT Call Affirmative Computer Products toll-free at 888-353-5250 or send email to support@affirmative.net.
- Page 10 APPENDIX: EXTERNAL COMPACTFLASH (CF) SLOT This section discusses the use of the external CF slot located along the left edge of the YEStablet 7380. The CF slot is characterized by an opening to insert a CF card next to an ejector button.
