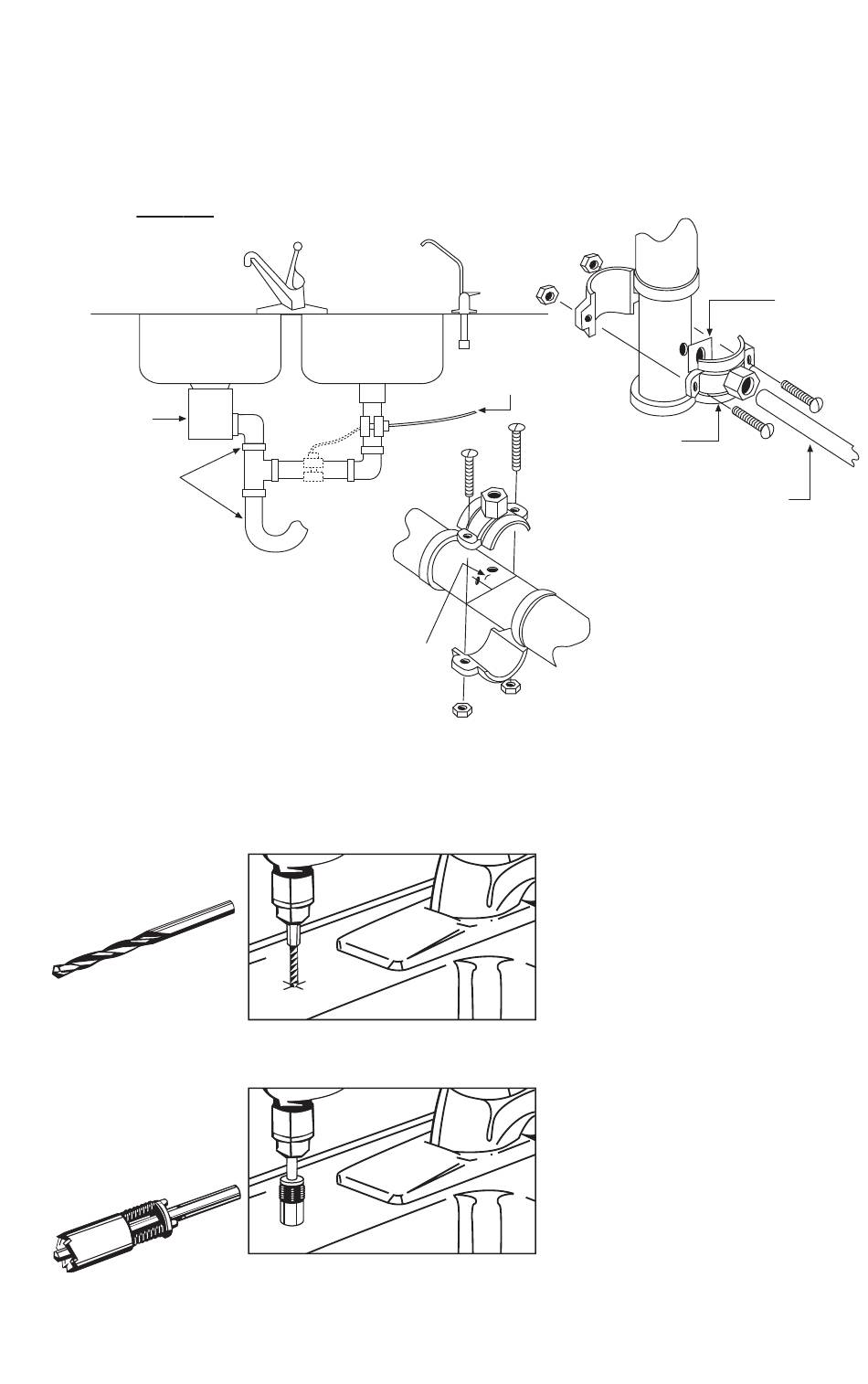

2.5 Installation of drain connection (Fig. 4)
Place the drain outlet saddle on the drain pipe. Allow proper space for the
drilling operation. Tighten the saddle bolts evenly on both sides. Using the opening
in the drain outlet saddle as a guide, drill a 1/4" hole in the drain pipe. Clean any
debris out of the drain saddle connection.
Figure 4
Sink
Disposal
Do Not
Mount Here
2.6 Installation of clean water faucet (Fig. 5.)
Step 1.
Pilot Drill
Step 2.
Spring Loaded
Porcelain Saw
(Relton Cutter)
Sink
Horizontal
Mount
Maximum Displacement
from Top Center – 30˚
RO Drain Line
Compression
Fitting
The faucet should be positioned
with aesthetics, function, and con-
venience in mind. An ample flat
area is required for the faucet base
so that it can be drawn down tight.
The space under the sink below
where the faucet will be mounted
must be clear of any obstructions.
Some conditions may eliminate
the need to drill a hole in the sink
such as a faucet previously
installed in the sink, a hole cov-
ered by a chrome hole cover, or
an unused spray handle. If any of
these situations are present, you
may mount the faucet in one of
these holes.
– 5 –
Vertical
Mount
Foam
Sealing
Washer
1/4" tube
(black)
