ionSign Neutron4-3G Quick Manual

For example JAMAK
instrumentation cable can be used between the
meter and Neutron4-3G. The open collector or
relay output of a single meter is connected to
Neutron4-3G as shown above.
When in operation, the Pulse led toggles between ON/OFF with every pulse received.
Example SETTINGS command:
SETTINGS
Command
Server
port
Operator
APN address
Attached
meters
Optional - Measurement cycle:
15, 30 or 60 (min) - 0=60min
Copyright 2017 - ionSign
1.
2.
3.
4.
5.
2x(2+1)x0,5mm2
Device
ID
Transmission Server
delay path
www.ionsign.fi
Quick Guide

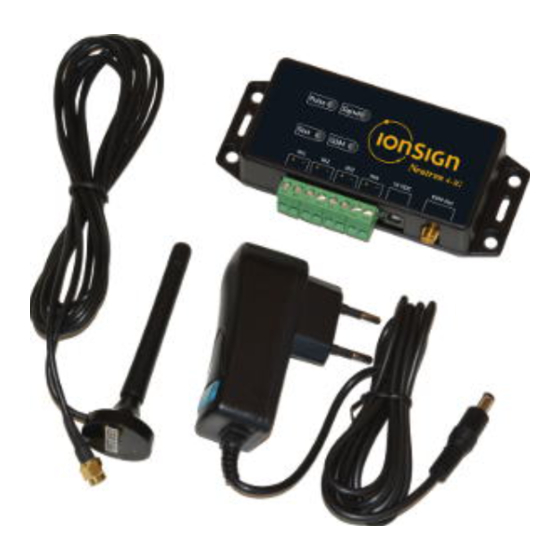

Neutron4-3G Remote Pulse Collector
Introducing Neutron4-3G:
Insert SIM card to its slot, PIN query disabled.
Connect the meter(s), antenna and power
supply to the device and plug it to the mains.
Within 15 s, the GSM led starts to double blink
to indicate the device is looking for network.
When connected, the GSM led blinks once in
intervals.
A lit Signal led indicates a good GSM signal.
If it blinks or remains off, try to find a better
place for the antenna.
Send the SETTINGS command; an SMS to
the SIM subscriber number. A blinking Stat
led indicates a received command and start-
ing to establish the server connection. With a
lit Stat led, the device is in operation.
Always establish your specific pa-
rameters for SETTINGS from your
reseller!
APN is operator specific and can usu-
ally be found in their web site: Search
for "[your operator] APN settings".
The example SETTINGS command
on the left sets device 101 to start col-
lecting hourly pulse data and send it
to server services.ionsign.fi, path
/cloud/input/ and port 80, using in-
ternet as APN. Device 101 has 4 in-
puts and data is sent one minute af-
ter 24 readings have been collected.
Server
name
In this case, with hourly data, at
00:01.
Refer to section 3 on the next page
to compile your specific SETTINGS
command.
* Setting "0" for servers that only
support
parameter sets 60 minute cycle.
*
hourly data. Ignoring
