Bottom-up curtain

Advertisement

Quick Links

This manual to remain with the unit:
Date Installed:____________________
This manual to remain with the unit:
Date Installed:____________________
This Manual Covers Serial No. 42994 and Units Shipped to Date, Refer to FLSFLDB for Units Prior to 3-13-2008.
This Manual Covers Serial No. 42994 and Units Shipped to Date, Refer to FLSFLDB for Units Prior to 3-13-2008.
PRINTED IN U.S.A.
email: printshop@RITEHITE.com
PRINTED IN U.S.A.
email: printshop@RITEHITE.com

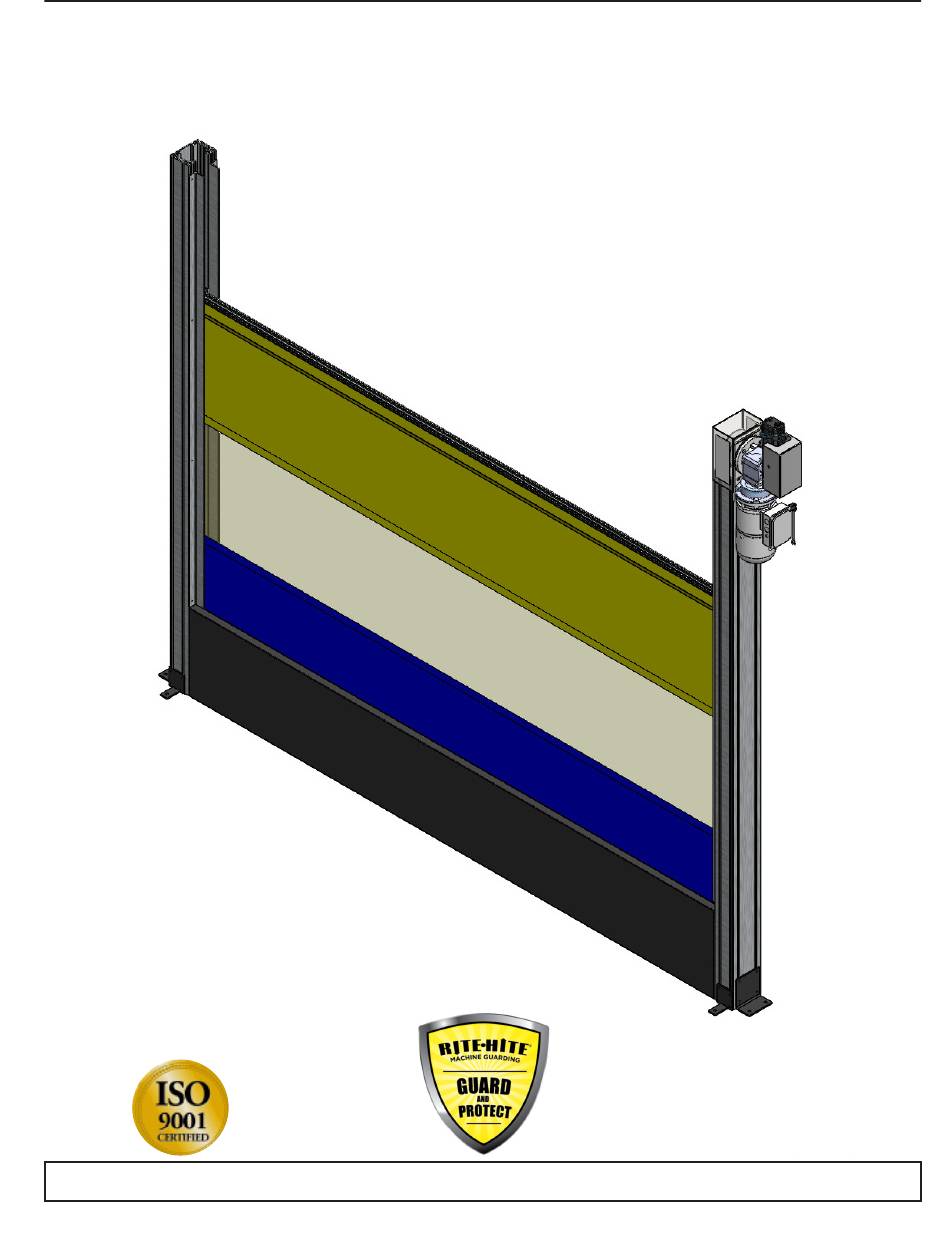

FLASHFOLD
FLASHFOLD
Bottom-Up Curtain
Bottom-Up Curtain
TM
TM
Publication No. FLSFLDG
Manual Part #: 39500147
Publication No. FLSFLDG
Publication: AMEN00395 2020-07-06
September 2015
September 2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FLASHFOLD FLSFLD and is the answer not in the manual?

Questions and answers

Summary of Contents for RITE-HITE FLASHFOLD FLSFLD

  • Page 1 FLASHFOLD FLASHFOLD Bottom-Up Curtain Bottom-Up Curtain This manual to remain with the unit: Date Installed:____________________ This manual to remain with the unit: Date Installed:____________________ This Manual Covers Serial No. 42994 and Units Shipped to Date, Refer to FLSFLDB for Units Prior to 3-13-2008. This Manual Covers Serial No.
  • Page 2: Table Of Contents

    CHAPTER 2 by RITE-HITE ® MACHINE GUARDING. The GUIDE INSTALLATION ......5 FLASHFOLD is intended to provide isolation to HEADER INSTALLATION .
  • Page 3: Safety Warnings

    N O T I C E deteriorate or become unreadable. RITE-HITE Corporation does not recommend any particu- Damage or debris may fall into electrical components causing lar lockout device, but recommends the utilization of an...
  • Page 4: Installation Instructions

    FLASHFOLD MODEL FLSFLD ™ CHAPTER 2 - INSTALLATION INSTRUCTIONS NOTE: The FLASHFOLD can be installed as a free standing unit or mounted to a wall or a machine structure in a machining, welding type of environment: Which workstation will I be working at and which side of the workstation is the unit to be located? Check that floor is in sound condition, does not have cracks or flaws and is there anything buried in the floor...
  • Page 5: Chapter 2 Guide Installation

    FLASHFOLD MODEL FLSFLD ™ CHAPTER 2 - GUIDE INSTALLATION Figure 4.2 Figure 3.1 NOTE: Curtain guides are rough placed at this point, and will need to be set in proper position later. Floor space the size of the unit is required for installation Remove the curtain container (A) from the crate and position in front of the machine (B) with the bottom...
  • Page 6 FLASHFOLD MODEL FLSFLD ™ CHAPTER 2 - GUIDE INSTALLATION Figure 4.5 Figure 4.4 PUB. NO. FLSFLDG SEPTEMBER 2015 Publication: AMEN00395 2020-07-06...
  • Page 7: Header Installation

    FLASHFOLD MODEL FLSFLD ™ CHAPTER 2 - HEADER INSTALLATION Figure 5.1 HEADER GUIDE INSTALLATION Locate the header and position in front of the machine. Determine drive and non-drive side, Figure 5.3 Figure 5.1. OPTIONAL INTERRUPT SWITCH PLACEMENT Locate the drive (shorter w/2 loops) belt and fasten to the drive side of the header by removing the center pin on the bolt, looping belt through and NOTE: The interrupt switch is a cam style switch.
  • Page 8: Drive Installation

    FLASHFOLD MODEL FLSFLD ™ CHAPTER 2 - DRIVE INSTALLATION DRIVE SYSTEM INSTALLATION Remove the drive shroud from the mounting plate. Slide the drive mount plate onto the guides with the (4) 1/4-20 x 3/4” [6x19] allen head, “T” nuts. (DO NOT tighten yet) Fasten the drive mount plate to the top of the header guides using the (2) 3/8-16 x 3/4”...
  • Page 9 FLASHFOLD MODEL FLSFLD ™ CHAPTER 2 - DRIVE INSTALLATION Figure 8.4 Figure 8.5 PUB. NO. FLSFLDG SEPTEMBER 2015 Publication: AMEN00395 2020-07-06...
  • Page 10: Curtain Installation

    FLASHFOLD MODEL FLSFLD ™ CHAPTER 3 - CURTAIN INSTALLATION Figure 10.1 Locate the 4” [102] wide black painted steel strip(s) (A) and place them on the bottom of the curtain container so the seams fall onto a brace, Figure 10.1. Raise the header approximately 3’-4’...
  • Page 11: Cover Installation

    FLASHFOLD MODEL FLSFLD ™ CHAPTER 3 - COVER INSTALLATION Figure 10.5 Place reversing edge housing (D) on top of curtain bar and fasten evenly spaced every 12” -18” [305 - 457]. Route reversing edge cable/chain (E) in the groove on the header guides and fasten with bolt (F) on motor plate.
  • Page 12: Limit Switch Installation

    FLASHFOLD MODEL FLSFLD ™ CHAPTER 4 - LIMIT SWITCH INSTALLATION Figure 12.1 PULLEY GUARD INSTALLATION The limit switch is pre-mounted to the top of the motor mount bracket with the small sprocket attached. Install pulley guard over the pulley using (2) 1/4-20 x 3/4” Locate the large sprocket, chain and connector in the [6x19] bolts, flat washers and (2) “T”...
  • Page 13: Troubleshooting

    Observe the closing action to make sure that the curtain operates smoothly, and fully closes without excessive curtain ripple near the bottom. RITE-HITE MACHINE GUARDING PLANNED MAINTENANCE Model FLSFLD - FLASHFOLD™ CUSTOMER:...
  • Page 14: Electrical Drawings

    FLASHFOLD MODEL FLSFLD ™ CHAPTER 5 - FIELD WIRING DIAGRAM PUB. NO. FLSFLDG SEPTEMBER 2015 Publication: AMEN00395 2020-07-06...
  • Page 15 FLASHFOLD MODEL FLSFLD ™ CHAPTER 5 - ELECTRICAL WIRING DIAGRAM PUB. NO. FLSFLDG SEPTEMBER 2015 Publication: AMEN00395 2020-07-06...
  • Page 16: Exploded Views & Parts List

    FLASHFOLD MODEL FLSFLD ™ CHAPTER 6 - CONTROL BOX LAYOUT 5210E031 Rev. C 17 20 16 18 21 10/04/2011 Control Box Layout 12 14 29 ITEM DESCRIPTION PART NUMBER Control Box Assembly 1746..Circuit Breaker, Overload, 1.6-5A 16660008 Contactor, Interlock, MCS 17000010 Contactor 24VAC, 16 AMP, 50/60Hz, 1NO 17000020...
  • Page 17 FLASHFOLD MODEL FLSFLD ™ CHAPTER 6 - SERVICE PARTS 53 63 34 35 36 PUB. NO. FLSFLDG SEPTEMBER 2015 Publication: AMEN00395 2020-07-06...
  • Page 18 FLASHFOLD MODEL FLSFLD ™ CHAPTER 6 - SERVICE PARTS LIST ITEM QTY DESCRIPTION PART # Chain Connector Link #35 54400008 Motor 208/230/460V 55250169 Belt, Curtain 1261..Motor 575V 55250170 Belt, Drive 1262..Motor 400V 55250171 Curtain Guide 1465..Nut, Hex, #10-24, znc 55600006 Container, Curtain Ass’y 1721..
  • Page 19: Architectural Drawing

    FLASHFOLD MODEL FLSFLD ™ CHAPTER 6 - ARCHITECTURAL DRAWING PUB. NO. FLSFLDG SEPTEMBER 2015 Publication: AMEN00395 2020-07-06...
  • Page 20: Warranty

    HITE’s sole obligation and the Owner’s exclusive remedy under this Limited Warranty. Labor. RITE-HITE will provide warranty service without charge for labor in the first year of the warranty period. Thereafter, a charge Labor. RITE-HITE will provide warranty service without charge for labor in the first year of the warranty period. Thereafter, a charge will apply to any repair or replacement under this Limited Warranty.
