Quick Install Manual 1.2

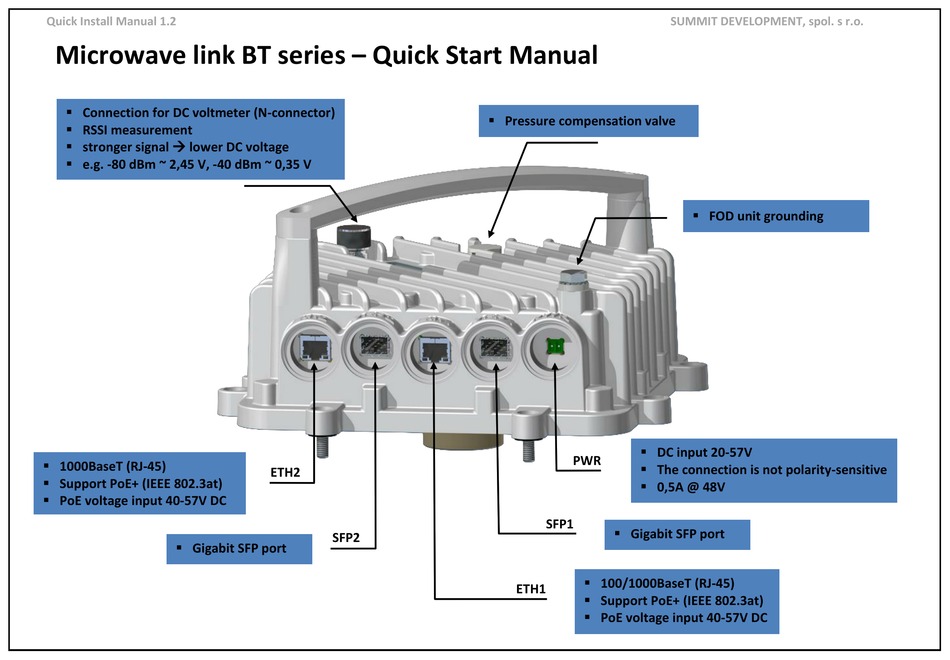

Microwave link BT series – Quick Start Manual
 Connection for DC voltmeter (N-connector)
 RSSI measurement
 stronger signal  lower DC voltage
 e.g. -80 dBm ~ 2,45 V, -40 dBm ~ 0,35 V
 1000BaseT (RJ-45)
 Support PoE+ (IEEE 802.3at)
 PoE voltage input 40-57V DC
 Gigabit SFP port
ETH2
2
SFP2
 Pressure compensation valve
 DC input 20-57V
PWR
 The connection is not polarity-sensitive
1
 0,5A @ 48V
SFP1
 Gigabit SFP port
 100/1000BaseT (RJ-45)
ETH1
 Support PoE+ (IEEE 802.3at)
 PoE voltage input 40-57V DC
SUMMIT DEVELOPMENT, spol. s r.o.
 FOD unit grounding
