Manual
BTV-220

CHARGING

The speaker must be recharged when switched off.
1.Use the supplied USB cable and connect it to the micro USB jack (1) of the speaker and
the USB port of a PC or USB charger (5V, 1A, not included).

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BTV-220 and is the answer not in the manual?

Questions and answers

Summary of Contents for Denver BTV-220

  • Page 1 Manual BTV-220 CHARGING The speaker must be recharged when switched off. 1.Use the supplied USB cable and connect it to the micro USB jack (1) of the speaker and the USB port of a PC or USB charger (5V, 1A, not included).
  • Page 2 2.The LED indicator will light up red to indicate the charging status of the speaker; when fully charged, the LED indicator will turn off. BASIC OPERATION To turn the speaker on, press and hold the power button (2). Press the M button (5) to select 1.Bluetooth mode.
  • Page 3 2.Turn the speaker on and press the M button (5) to enter Bluetooth mode. 3.Follow the instructions of your device to search the speaker. 4.The speaker’s name is “Denver BTV-220” and will be displayed in your Bluetooth device’s list. Select it and enter the password “0000”, if required.

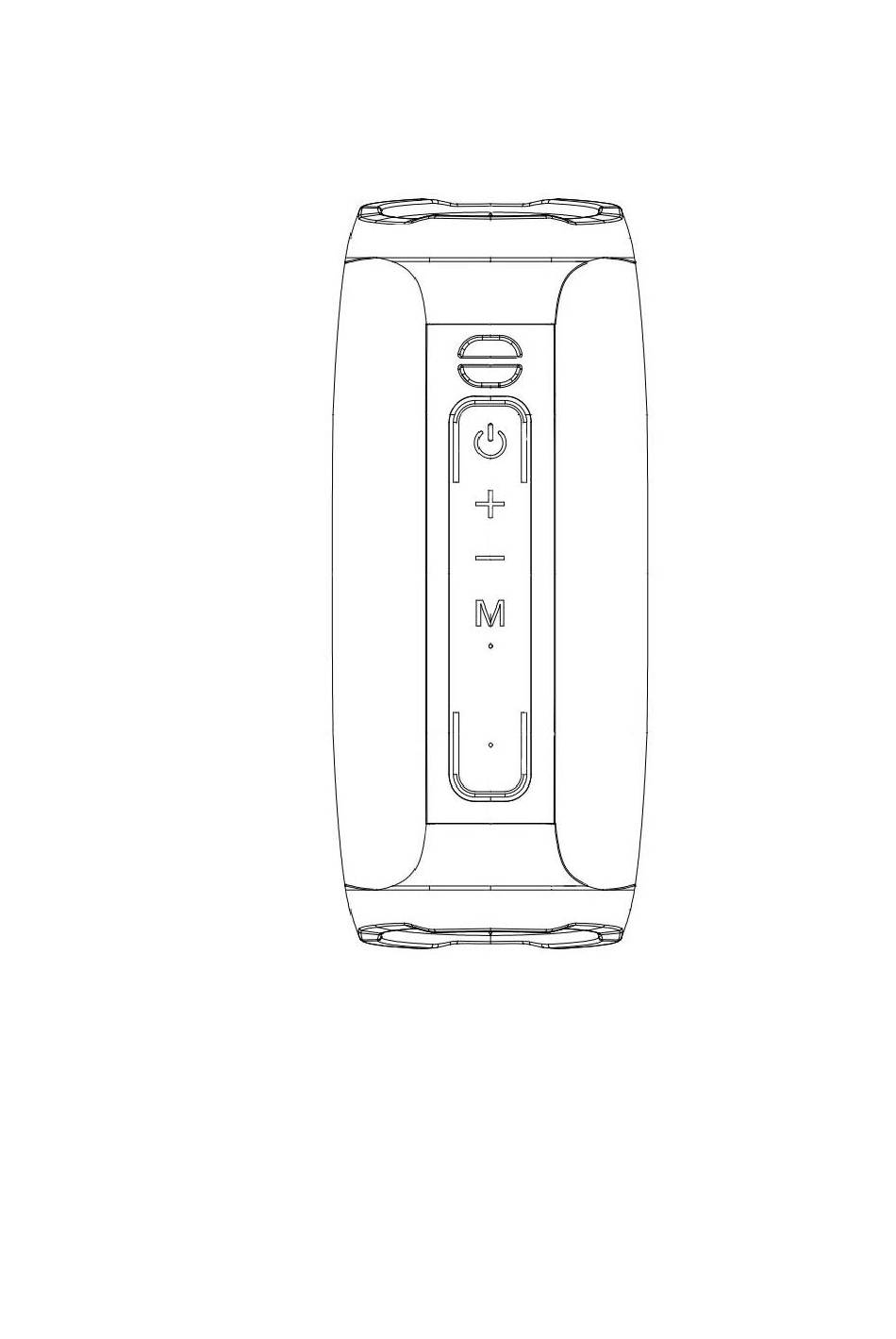

  • Page 4 6.Press and hold the M button (5) again to quit the TWS function to hear music from one speaker. On / Off / Play / Pause Volume + / Next track Volume - / Previous track Mode / FM tuning / TWS microSD slot USB port Aux-in...
  • Page 5 LED status indicator Supported music format LED status indicator: red: charging, turns off when charging is complete blue: operating TECHNICAL FEATURES Rechargeable Battery: ....... Internal lithium: 3.7V, 2400mAh Power: ..........5V 1A Bluetooth Frequency Range: ..... 2402MHz~2480MHz Operating Frequency Range: ..... 20Hz~20KHz Max Output Power: ......
  • Page 6 Please notice - All products are subject to change without any notice. We take reservations for errors and omissions in the manual. ALL RIGHTS RESERVED, COPYRIGHT DENVER ELECTRONICS A/S Electric and electronic equipment and included batteries contains materials, components and substances that can be hazardous to your health and the environment, if the waste material (discarded electric and electronic equipment and batteries) is not handled correctly.
  • Page 7 ICON www.denver-electronics.com on topline of website. Write model number: BTV220. Now enter product page, and RED directive is found under downloads/other downloads. Operating Frequency Range:20Hz~20KHz Max Output Power:42dBm DENVER ELECTRONICS A/S Omega 5A, Soeften DK-8382 Hinnerup Denmark www.facebook.com/denverelectronics...

This manual is also suitable for:

Btv-220bordeauxBtv-220greyBtv-220blackBtv-220blue57067510520405706751052026 ... Show all
