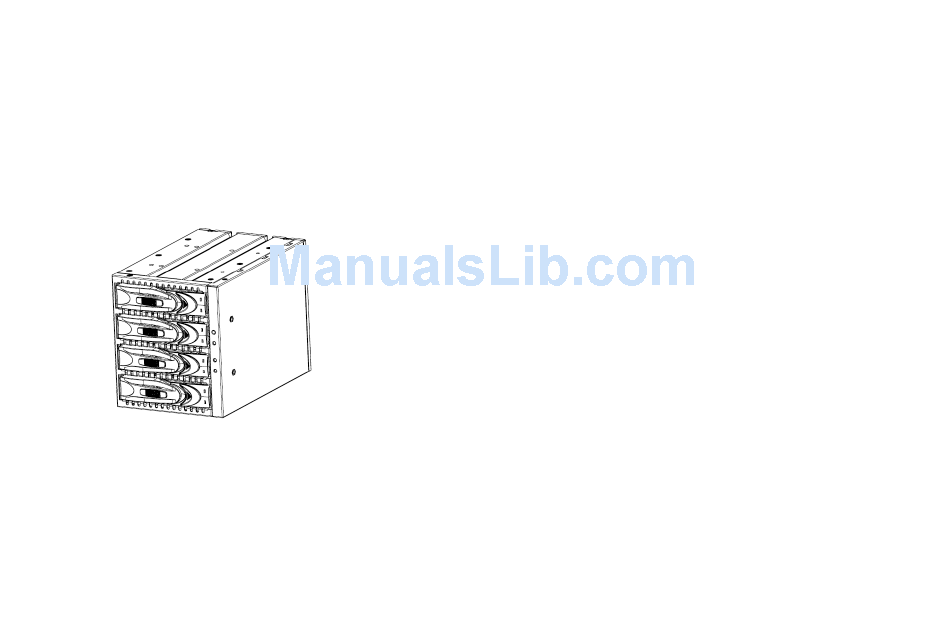

- Page 1 3-4 SAS/SATA II HDD Canister Deluxe version XC-34D1-SA1C-0-R USER’S MANUAL Document number: MAN-00078-B...
-
Page 2: Important Information
Preface Important Information Warranty Our product is warranted against defects in materials and workmanship for a period of one year from the date of shipment, as evidenced by receipts or other documentation. Manufacturer, at its option, repair or replace equipment that proves to be defective during the warranty period. -
Page 3: Safety Precautions
Safety Precautions Before getting started, please read the following important cautions: All cautions and warnings on the equipment or in the manuals should be noted. Most electronic components are sensitive to electrical static discharge, therefore, be sure to ground yourself at all times when installing the internal components. Use a grounding wrist strap and place all electronic components in static-shielded devices. -
Page 4: Table Of Contents
Table of Contents Preface ... iii Important Information ... iii Safety Precautions ...v CHAPTER 1 INTRODUCTION... 1 1.1 Key features... 1 1.2 Unpacking list ... 2 1.3 Front Panel Features... 3 1.4 Rear Panel Features ... 4 1.5 SGPIO and SES II Support ... 7 CHAPTER 2 INSTALLATION OVERVIEW ... -
Page 5: Unpacking List
1.2 Unpacking list Before removing the subsystem from the shipping carton, visually inspect the physical condition of the shipping carton. Exterior damage to the shipping carton may indicate that the contents of the carton are damaged. If any damage is found, do not remove the components； contact the dealer where the subsystem was purchased for further instructions. -
Page 6: Rear Panel Features
1.4 Rear Panel Features 1.4.1 rear view of 3 to 4 canister miniSAS host connector Power input connectors Over-Temp Threshold ,Buzzer Setting and HDD Fail LED Input Fan connector More details as below MiniSAS Host Connector A 36-pin Mini SAS connector is used for 4 SAS channels and sideband signals. Signal Connector Pins Rx 0+... -
Page 7: Sgpio And Ses Ii Support
Status Description Open Disable External Access LED input Close Enable External Access LED input Open Access LED from HDD Pin P11 Close Access LED from SGPIO Open SGPIO Bit2 is HDD Fail, Bit3 is HDD ID ex. ARECA Close SGPIO Bit2 is HDD ID, Bit3 is HDD Fail ex. LSI Open Disable SGPIO Close... -
Page 8: Chapter 2 Installation Overview
CHAPTER 2 INSTALLATION OVERVIEW Warning：Before you remove or install the unit, make sure the unit is not turned on or connected to the AC power. 2.1 Removing the HDD Tray from the enclosure 1. Press the latch to the right by the thumb. 2.
