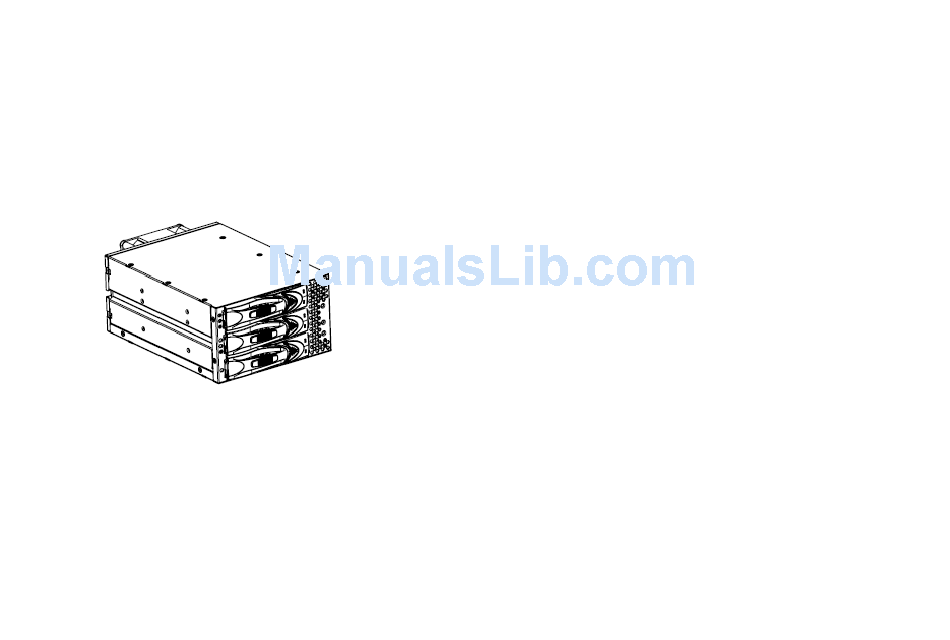

- Page 1 2-3 SAS/SATA II HDD Canister XC-23D1-SA10-0-R USER’S MANUAL Document number: MAN-00076-A...
- Page 2 Preface Important Information Warranty Our product is warranted against defects in materials and workmanship for a period of one year from the date of shipment, as evidenced by receipts or other documentation. Manufacturer, at its option, repair or replace equipment that proves to be defective during the warranty period.
- Page 3 Safety Precautions Before getting started, please read the following important cautions: All cautions and warnings on the equipment or in the manuals should be noted. Most electronic components are sensitive to electrical static discharge, therefore, be sure to ground yourself at all times when installing the internal components. Use a grounding wrist strap and place all electronic components in static-shielded devices.
- Page 4 Table of Contents Preface ... iii Important Information ... iii Safety Precautions ...v CHAPTER 1 INTRODUCTION... 1 1.1 Key features... 1 1.2 Unpacking list ... 1 1.3 Front Panel Features... 2 1.4 Rear Panel Features ... 3 CHAPTER 2 INSTALLATION OVERVIEW ... 5 2.1 Removing the HDD Tray from the enclosure ...
- Page 5 1.3 Front Panel Features 1.3.1 front view of 2 to 3 canister Power LED Over Temperature LED Fan Fail LED LED indicators LED NAME Color definition On：when system is powered on Blue Power LED Off：when system is powered off On：when system temperature is higher than threshold temperature Over Temperature LED Off：when system temperature is normal.
- Page 6 SATA Connectors Standard 7Pin SATA connector to link to MB or HBA card. HDD Fail LED Input Pin Number Description HDD 0 Fail Input HDD 1 Fail Input HDD 2 Fail Input For some HBA supporting HDD Fail LED’s. If used, the jumper is used to connect to cathode of the diode for HDD Fault output from HBA.
