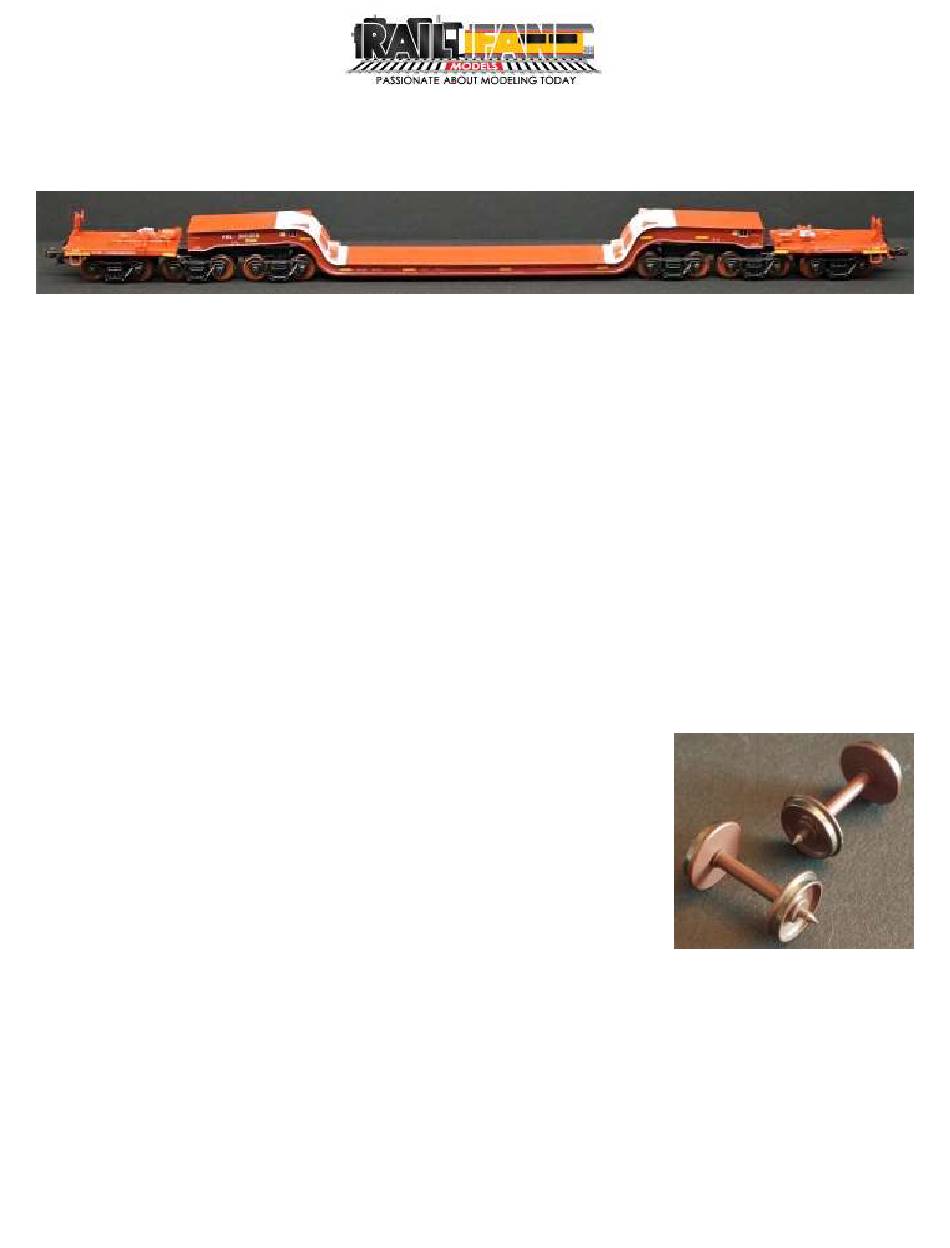

KASGRO 325 TON, 12 AXLE, 36' DEPRESSED CENTER FLAT CAR KIT ASSEMBLY INSTRUCTIONS
Unpacking
1. Remove the bags and parts from the box. Only discard the bubble wrap, as all other material
will be used to secure your completed model for storage and transport.
2. Do not open all of the bags of parts at once in order to minimize the chance any of the small
parts getting lost. The bags are marked alphabetically in the order the parts will be used.
Preparation
1. You will need a clean flat work area 3 to 4 square feet in size.
2. Tools required are a #1 Phillips screw driver, small file, small angled needle nose pliers, hobby
knife, toothpicks, small container to hold water for decals, "setting" solution for decals, and
optionally a magnifier and 400 grit wet/dry sand paper.
3. Spray booth or well ventilated and clean area to paint.
4. Area where parts can be set aside without getting dirty or damaged.
Wheelsets
1. Remove the wheelsets from the packaging. For the best looking
car, the wheelsets should be painted. Now is the time to paint
as the wheelsets can not be removed from the trucks later like
most other trucks you are used to.
2. We highly recommend washing the wheelsets in soapy water to
remove any residue from the manufacturing process prior to
painting. Thoroughly dry the wheelsets.
3. Paint the wheelsets. While brush painting is acceptable here,
airbrushing works and looks much better. For a newer look, use a rust color with more orange
hue. If you want an older look, use a darker rust color. There is no absolute right or wrong rust
color.
4. Set aside for use shortly.
