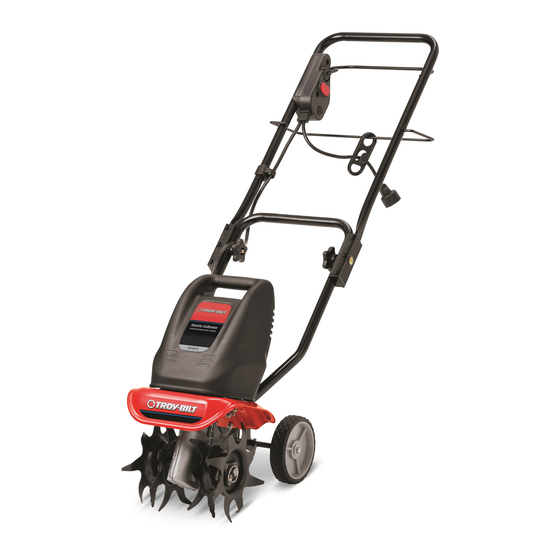

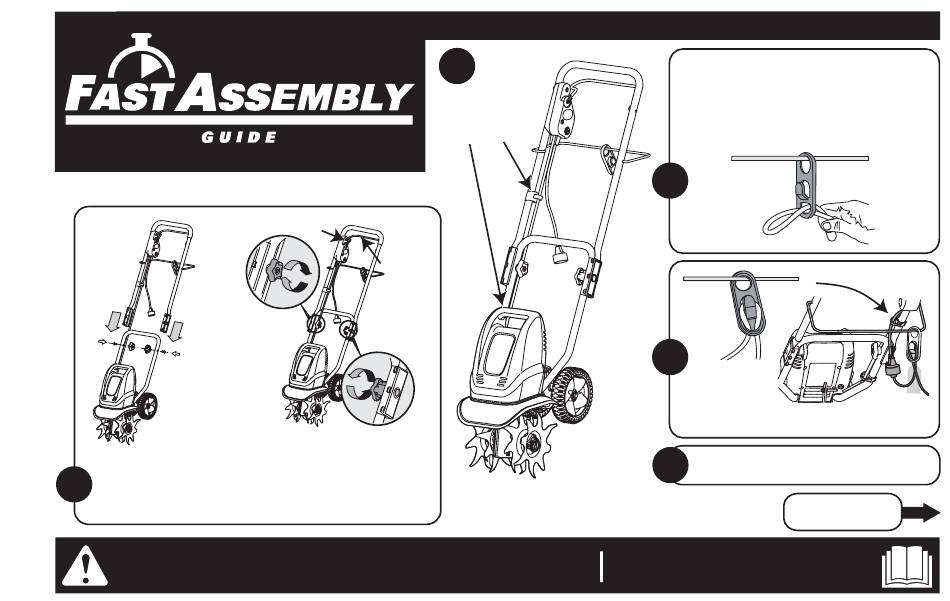

Switch Assembly

Hold the handle bar in the position shown

at left above and slide it onto the lower bars. Align the

holes and insert the bolts as shown at left above, then

screw on the knobs as shown at right above. Make sure

the bail is assembled into the switch assembly.

IMPORTANT: READ THE OPERATOR'S MANUAL THOROUGHLY AND FOLLOW

THE SAFE OPERATION PRACTICES WHILE OPERATING THE UNIT

Read and understand all instruction, warning and danger labels on the unit.

Clip the switch

cable to the

cable restraints.

Bail

Need Help?

Call 1-800-828-5500

NOTE: Do not plug the extension cord

into the receptacle until the extension

cord is connected to the unit.

Bend the extension cord to form a tight

loop near the cord end. Push the loop

through the bottom hole of the retainer.

Slide the loop over the retaining clip and

pull down until the cord fits snugly.

Plug the unit into the extension cord then

the extension cord into a grounded outlet.

Fast Start Guide

LEA LA TRADUCCIÓN EN ESPAÑOL EN

EL MANUAL.

FLIP OVER FOR

Table of Contents

Do you have a question about the TB154E and is the answer not in the manual?

Page 1 Read and understand all instruction, warning and danger labels on the unit. NOTE: Do not plug the extension cord into the receptacle until the extension cord is connected to the unit. Clip the switch cable to the Bend the extension cord to form a tight loop near the cord end.
Page 2 Read and understand all instruction, warning and danger labels on the unit. Pivot the cultivator slightly toward the rear so that its weight is resting on the wheels and the tines are NOT in contact with the ground. Stand in the operating position. Operating Depress the (red) starter button and hold it in (1 above).
