West Mountain Radio PWRcrimp Manual

SECURING THE HOUSINGS
Anderson Power Products recommends and supplies a
®
more reliable spiral pin. Do not use roll pins on Powerpole®!
We recommend not using the roll pins because they may
fall out and cause damage to your radio. After testing both
pin types, even the proper spiral pins can fall out. Anderson
Power Products does not recommend their spiral pins for
®
critical applications.
After consulting with Anderson Power Products
recommend using cyanocrylic (CA) glue, such as Crazy
Glue, to hold the connector bodies permanently together.
Normally the dovetail joints in the housings hold well, but
if glue is preferred, do not use pins. Make sure of proper
assembly BEFORE gluing, as they will be permanently
bonded together. All it takes is a very small drop of CA
glue in the seam between the red and black housings.
Alternatively, a bit of silicon glue injected in to the hole
between the red and black housings works reasonably well
to hold the housings together, and, if needed, can be later
separated.
INSERTING THE CONTACTS
After crimping, the contacts go in the housings in only one
way. Insert the contacts so that their sharp hooked edge
will be facing against the flat spring that is in the housing.
IMPORTANT: Before inserting the crimped contacts, make
sure that the tab is not bent up or down, compare the
finished crimped contact to a new one and make sure it is
straight and the same angle. The contacts should slide in
and click. Check to ensure they are fully seated and that
the contact and its wire "floats" slightly inside the housing. If
it feels tight the contact may not be snapped in fully or the
contact is bent or has become wider than it was originally
during crimping or soldering.
Tip: If you are using small gauge wire, use a small
screwdriver to push the contact into the housing.
REMOVING A CONTACT FROM A HOUSING
With a small screwdriver lightly pry the contact up away
from the housing flat spring clip while gently pulling the
wire and contact out. Be sure to bend the contact back
correctly straight before re-inserting it in another housing.
2

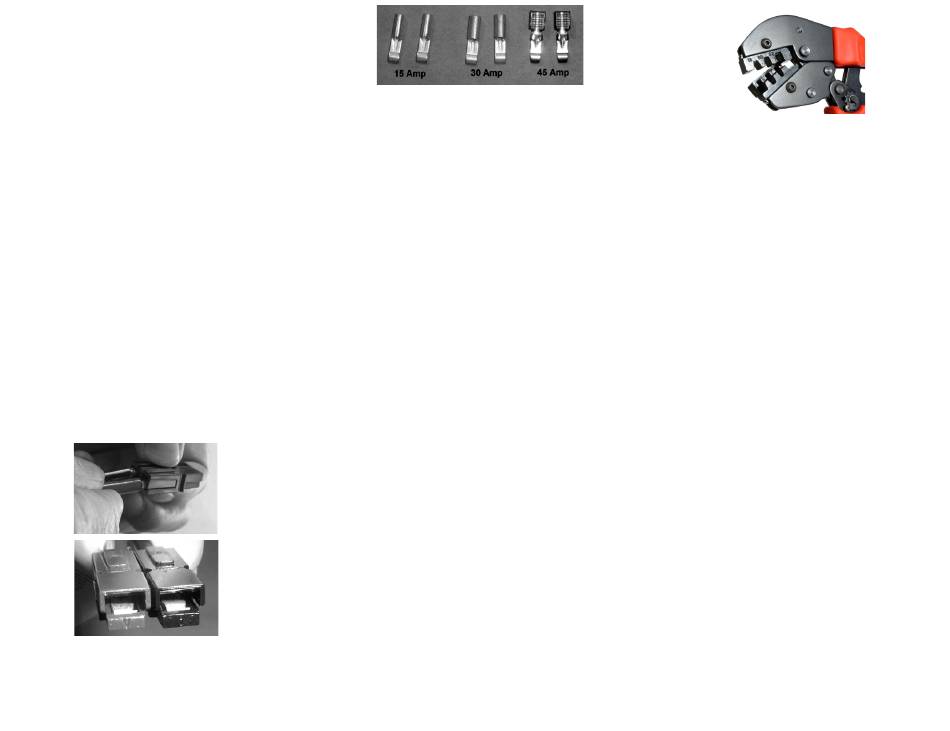

CONTACT RATING AND WIRE SIZE
Anderson Power Products
, they
®
all mount in the same plastic housings. All contacts have the
same connection contact area. The difference is the size
wire that fits each contact.
• 15 amp contacts can be used with #15-20 AWG wire.
(For #20 AWG or smaller the wire will have to be doubled
or tripled over to fill the contact for a good crimp. Another
option is to fold it back on the insulated wire so the crimp
includes the insulation for a sturdier cable.)
• 30 amp contacts can be used with #12-16 AWG wire. (It
is possible to use up to #10 wire in a 30 amp contact
even though they are made for 12 to 14 gauge.The #10
will need to be cut cleanly and neatly twisted to get all
of the strands inside. For #18 AWG or smaller the wire
will have to be doubled or tripled over to fill the contact
for a good crimp.)
• 45 amp contacts can be used with #10-14 AWG wire.
Powerpole current ratings are according to the National
®
Electric Code by wire gauge for a 30ºC rise above ambient
at the rated current. Powerpoles
these ratings continuously without ventilation. With proper
ventilation they will easily sustain double their ratings and
much more for short bursts.
CRIMPING WITH THE PWRcrimp
NEVER USE THIS TOOL FOR ANY OTHER BRAND
CRIMP CONTACT, YOU MAY BREAK THE TOOL AND
VOID THE WARRANY!
The long handles on the PWRcrimp will provide extra
leverage, however it is normal to use two hands to fully
crimp a contact. For 45 Amp contacts with #10 wire you may
need to push the tool against your bench using your weight
against the top lever. The results are professional, providing
aerospace quality and the strongest and lowest possible
resistance crimp, and much faster than soldering.
The PWRcrimp tool has three crimping dies, marked 15, 30,
and 45, for the respective Anderson Powerpole contacts and
wire gauge ranges. The plastic contact positioner extends
off the other side of the lower jaw. Without a contact in the
tool, try the crimper by squeezing the handles closed. The
ratchet will click until the end of travel, and with some force,
only then allowing the tool to open. When it is partially closed,
try the release lever which is located between the handles
under the "W" in West Mountain Radio. The release allows
you to start over without damaging the tool or the contact if
the contact was incorrectly positioned to start.
15, 30, and 45 ampere contacts
®
will easily sustain
®
3
PREPARING TO CRIMP
Wire cutters are needed to cut the wire and wire strippers
should be used to strip the wire. Use of cutters to strip wire
might possibly nick the wire strands. With the strippers, strip
the wire insulation back 3/8 in., trying not to nick the strands.
PREPARING THE WIRE ASSEMBLY
Tip: If you are using heavy paired-wire, orient the paired
wire with the red/plus wire on your right with the stripped end
of the wire facing away. Install the contacts so the hooked
edge of the contact is down and they will install in the
housings correctly without twisting the wire into alignment.
CRIMPING 15, AND 30 AMP CONTACTS
Carefully insert all of the strands of the wire into the wire cup
on the contact end. Fully open the PWRcrimp jaw. With the
hooked edge downward, place the contact and wire fully into
the plastic contact positioner for the respective 15 or 30 amp
die. Notice that the contact's split seam of the wire barrel
is facing squarely up towards the center of the upper die.
Make sure that the wire is still fully inserted into the contact
and crimp down firmly. Continue to squeeze through each
ratchet index, only until the tool opens. DO NOT SQUEEZE
PAST THE POINT WHERE THE RATCHET RELEASES,
doing this may make a poor or damaged crimp or damage
the tool. The ratchet release point assures that the crimp
is fully compressed and makes the best connection.
CRIMPING 45 AMP CONTACTS
For 45 Amp contacts, do not place the wire in the contact.
Fully open the PWRcrimp jaw and with the flat tab downward
and the open end of the "U" upward, place the contact fully
into the 45 amp die and contact positioner opening. Slightly
close the tool, but only until both tabs of the 45 Amp contact
are just touching inside the upper die. Be sure that both
tabs are symmetrical inside the upper die. One tab
may want to spread outward instead of inward, ruining the
contact and possibly jamming or damaging the tool. (Some
45 amp contacts supplied are formed slightly wide, and the
contact may not fit properly in the die.)
If the tabs are not inside the die when partially closing the
handles, use the release lever and take the contact out.
Slightly squeeze the contact tabs together with a pair of pliers
so they are more of a U shape than a V and start over. With
the contact properly aligned inside the slightly closed tools die,
neatly place all the strands of the wire fully in to U shaped
channel and crimp until the ratchet mechanism just releases.
This will take considerable force.
