Summary of Contents for JBO eMultiCheck 2.0 USB

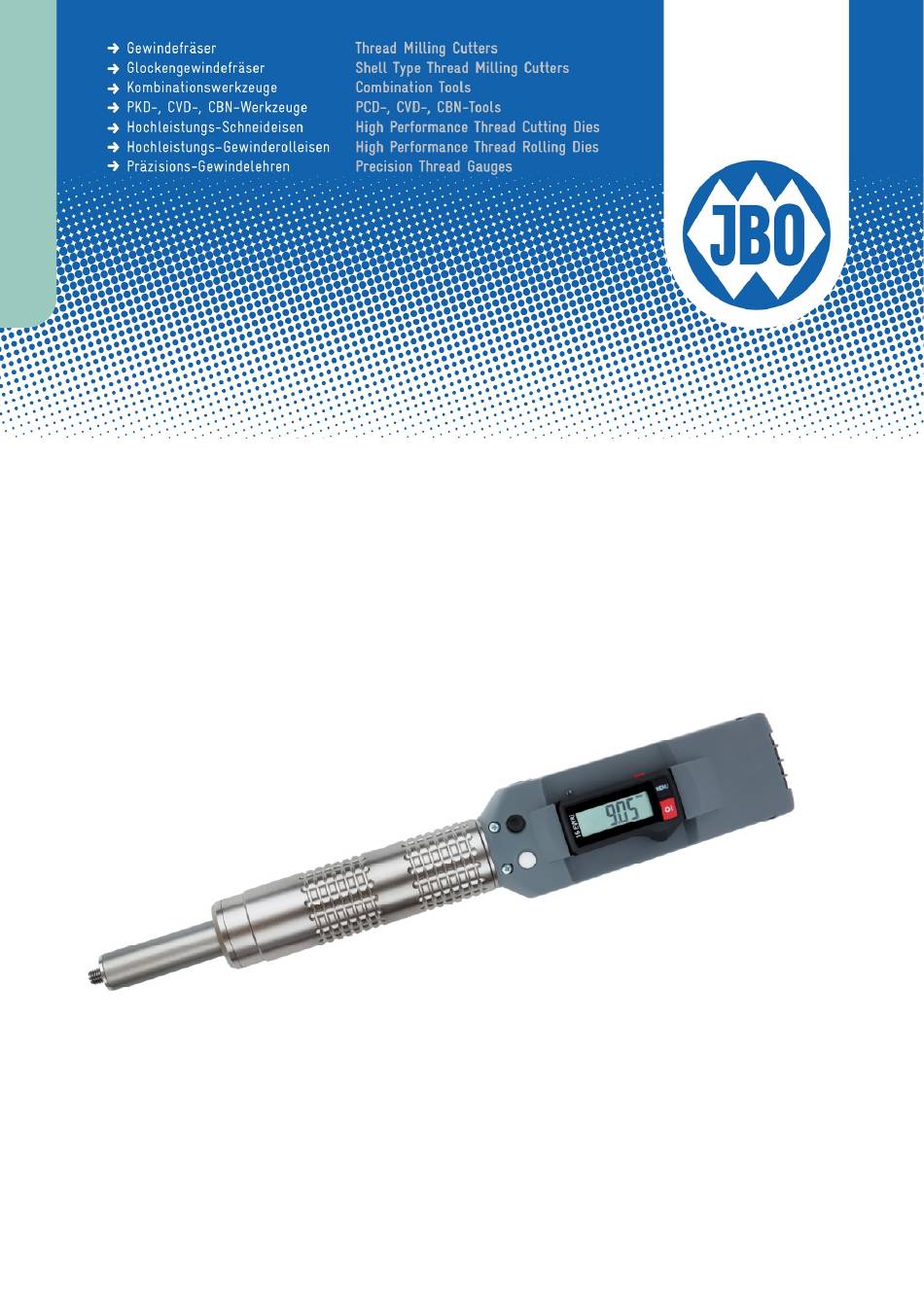

- Page 1 2.0 USB Instruction manual JBO·eMultiCheck2.0USB ENG·1906...
-
Page 2: Table Of Contents
Loading the current configuration ....................... 12 Save a new configuration ..........................12 Checking thru holes ............................13 Checking blind holes ............................14 Adjustment of speeds ............................15 Permanent rotation mode ..........................15 Locking the blue button „C“ ..........................15 JBO·eMultiCheck2.0USB ENG·1906... -
Page 3: Introduction
INSTRUCTION FOR BATTERY DISPOSAL..............20 SAFETY INSTRUCTIONS ..................... 20 1 Introduction The eMultiCheck is the latest development by JBO. The "e" stands for a combination of our well-proven MultiCheck with a motorised drive which is controlled by a microprocessor. Starting Before the device is used for the first time, it should be fully charged in order to ensure a maximum battery life. -
Page 4: Switching On
"A". Subsequently, the renewed strength test can be started by pressing the button "C". Join the new measurement no exceeding the torque to the maintenance mode is automatically canceled. JBO·eMultiCheck2.0USB ENG·1906... -
Page 5: Switching Off
The plug gauge GO eMC is placed on the thread that needs checking. If a defined torque is exceeded, the device assumes that the plug gauge GO eMC is in the component (initial contact or thread found) and increases the torque and the speed (phase 2). JBO·eMultiCheck2.0USB ENG·1906... -
Page 6: Saving Thread Depths
In this mode, the torque is not limited. 2.3.1 Manual mode If the white button is pressed and held down, the device switches to manual mode. In this mode, the device is set to the maximum torque until the button is released again. JBO·eMultiCheck2.0USB ENG·1906... -
Page 7: Digital Display With Integrated Wireless Port
3 Digital Display with integrated wireless port The eMultiCheck 2.0 USB is equipped with a wireless data transmission digital display. The corresponding USB wireless receiver iStick can transfer the measurement results quickly and easily to a PC. Technical Data: Measuring range... -
Page 8: Advanced Functions Digital Display With Integrated Wireless Device
3.2 Advanced Functions Digital Display with integrated Wireless Device JBO·eMultiCheck2.0USB ENG·1906... -
Page 9: Led For Battery Charge Condition
To prevent any damages don’t use volatile solvent, as it causes damages on plastic parts. At regular intervals please lubricate the plug gauges with a resin free oil. It will prevent the gauge from corrosion. Opening the device will leed to loose the warranty claim. JBO·eMultiCheck2.0USB ENG·1906... -
Page 10: Measuring Depth According To The Thread Diameter
50.00 mm Configuration software „eMultiCheck-UI“ With our configuration software “eMultiCheck-UI” the eMultiCheck 2.0 USB can be configured quickly and easily. Therefore the USB connection of the device (Mini USB) connected to a PC. Subsequently, the software is started on the PC. - Page 11 - Activating and Deactivating the permanent rotation mode On the home screen, the language (German / English) can be selected or the program can be closed by clicking the "Stop / Exit" After selecting the language will appear automatically the user interface JBO·eMultiCheck2.0USB ENG·1906...
- Page 12 - USB driver has not yet been fully installed (automatically when you first connect the device to the PC) The renewed search for the eMulticheck takes place via the button "Search for eMutliCheck" If the the eMultiCheck was then detected this is also shown on the status bar JBO·eMultiCheck2.0USB ENG·1906...
-
Page 13: Loading The Current Configuration
4.2 Save a new configuration If the current configuration of the device should be changed, this is done by activating the respective buttons (direction of rotation and torque level) The new configuration is transferred by pressing the button "Save settings to eMultiCheck" JBO·eMultiCheck2.0USB ENG·1906... -
Page 14: Checking Thru Holes
"B" is disabled to prevent a further screwing in. With the white button "A", the thread plug gauge will be unscrewed as usual. Moreover, in addition the Blue button "C" is disabled so that no fixed values can be overwritten during thru hole measurement. JBO·eMultiCheck2.0USB ENG·1906... -
Page 15: Checking Blind Holes
Aluminum or stainless steel. The speeds for screwing in can be controlled via the "Speed 1" and "Speed 2" fields. However, in this mode, it is first screwed in at speed 2 and then switched to speed 1. JBO·eMultiCheck2.0USB ENG·1906... -
Page 16: Adjustment Of Speeds
"Lock adjustment button on eMultiCheck" To activate the button the current setting of the eMultiCheck have to be loaded first. As long as the button "C" is locked there is no possibility to save a new thread depth or delete a saved value. JBO·eMultiCheck2.0USB ENG·1906... -
Page 17: Save / Load Data Records As Well As Export / Import Data Records
This option gives you the ability to quickly recall recurring settings without having to make manual adjustments every time (for example, using an eMultiCheck to test different threads). 4.8.1 Save data records After all the desired settings have been made, clicking on the "Save record" button saves up to 20 data records. JBO·eMultiCheck2.0USB ENG·1906... -
Page 18: Load Data Records
"Save record". In the memory list you then click on the record to be deleted. The following window appears: This selection is confirmed with "Yes" and the following window appears again: Here you have to select "Cancel" and the query appears asking if the data record should be deleted. JBO·eMultiCheck2.0USB ENG·1906... -
Page 19: Export / Import Data Records
GO eMC with fast-change connector can be pushed into the sleeve (this must click into place with both surfaces). Releasing the sleeve locks the plug gauge GO eMC in place. JBO·eMultiCheck2.0USB ENG·1906... -
Page 20: Charger
For safety and certification reasons (CE) you must not modify or change the product in any way. If you use the product for uses other than those described above, the product may be damaged. Incorrect use of the product can also involve risks, such as short-circuits, fire, electric shocks, etc. JBO·eMultiCheck2.0USB ENG·1906... -
Page 21: Instruction For Battery Disposal
Do not subject the product to mechanical stress. If safe operation is not possible, put the device out of service and take measures to ensure that it is not used inadvertently. Safe operation is no longer guaranteed if the product: shows visible signs of damage, JBO·eMultiCheck2.0USB ENG·1906... - Page 22 Always have maintenance, alteration and repair work carried out by a specialist or a specialist dealer. The product is manufactured in accordance with the ROHS Directive (Restriction of Hazardous Substances) and can therefore be disposed of in accordance with the WEEE Directive. JBO·eMultiCheck2.0USB ENG·1906...
