Summary of Contents for Dover ProGauge MagLink LX

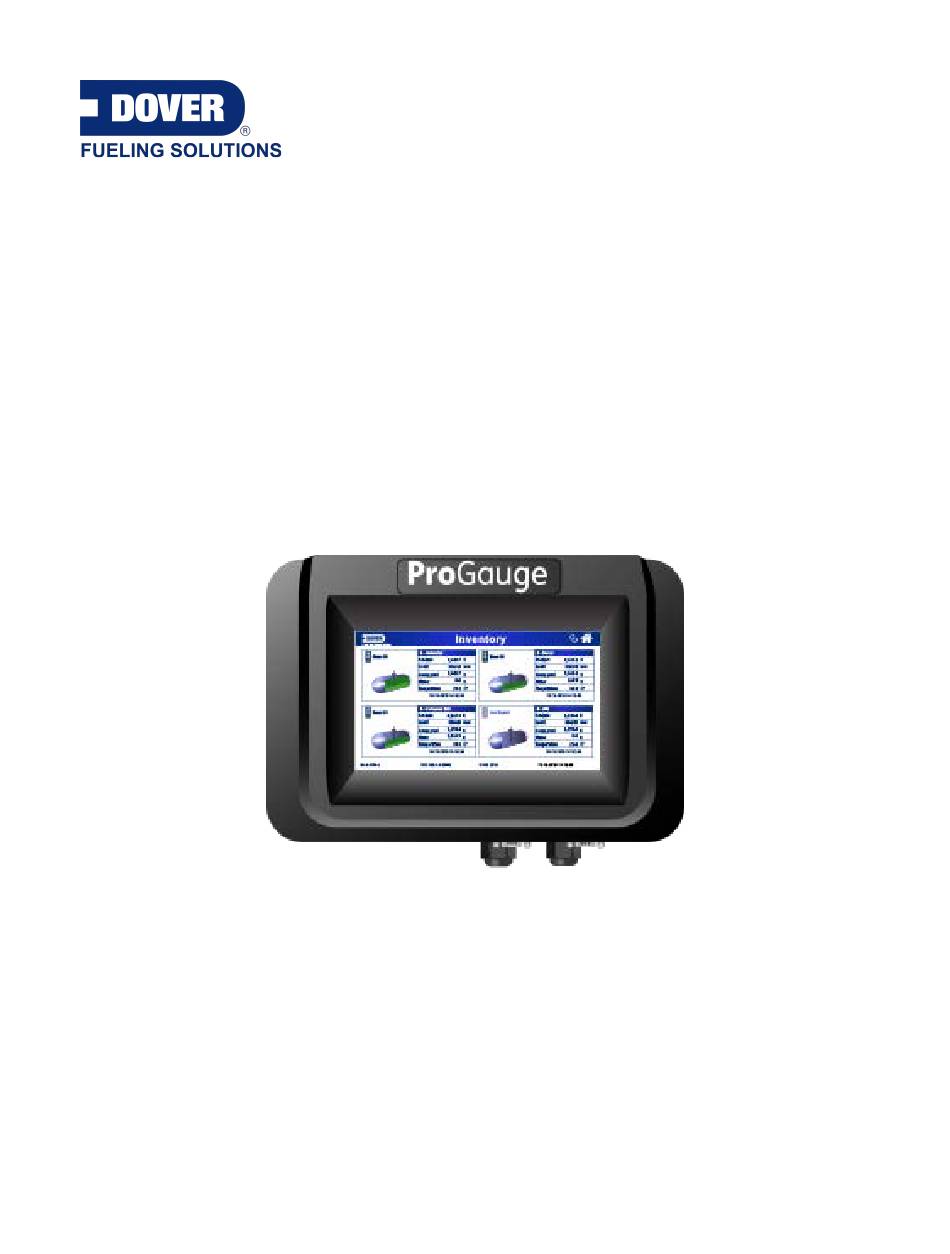

- Page 1 User's Manual MagLink LX M2052-EU Revision: 1 Part Number: M2052-EU, Rev. 1 Issue Date: V...
- Page 2 Fax +39 0362 1581464 Copyright Information © 2020 Dover Fueling Solutions. All rights reserved. DOVER, the DOVER D Design, DOVER FUELING SOLUTIONS, and other trademarks referenced herein are trademarks of Delaware Capital Formation. Inc./Dover Corporation, Dover Fueling Solutions UK Ltd. and their affiliated entities.
-
Page 3: Table Of Contents
7.2 Main Menu 7.3 Status Page 7.4 Calendar 7.5 Notifications 7.6 History 7.7 Maintenance 7.8 Shifts 7.9 Reports 7.9.1 Sales Report 7.9.2 Shift Report 7.9.3 Delivery Report 7.9.4 Leakage Report 7.9.5 History 7.9.6 System/Alarms M2052-EU Rev.: 1 Dover Fueling Solutions Page 3... - Page 4 7.10 Configuration 7.10.1 System Configuration 7.10.2 Tank Configuration Section 8 Technical Support M2052-EU Rev.: 1 Dover Fueling Solutions Page 4...
-
Page 5: Section 1 Preface
Making copies, citing quotes or other reproductions of all or part of this document is permitted only after written consent of Start Italiana S.r.l. Patents protect trademark or name. Copyright 2019© Start Italiana S.r.l. – All rights reserved M2052-EU Rev.: 1 Dover Fueling Solutions Page 5... -
Page 6: Section 2 General Warnings
You must read and obey all safety instructions in this manual before you use this equipment. WARNING: Incorrect use of this equipment that does not agree with the instructions in this manual can cause a risk to safety. M2052-EU Rev.: 1 Dover Fueling Solutions Page 6... -
Page 7: Section 3 Introduction
The table that follows lists reference data of the manufacturer: Data Description Name START ITALIANA S.r.l. Via Pola 6 Address 20813 Bovisio Masciago (MB) Italy Telephone +39 0362 1581465 +39 0362 1581464 Website www.startitaliana.com e-Mail support@startitaliana.it M2052-EU Rev.: 1 Dover Fueling Solutions Page 7... - Page 8 The units of measurement contained in this manual refer to a specified selection by the user. Refer to the M2051-EU MagLink LX Configuration Manual for more information on how to set units of measure. M2052-EU Rev.: 1 Dover Fueling Solutions Page 8...
-
Page 9: Section 4 General Description
The console has a resistive type touchscreen that can be used with fingers (also with gloves), stylus pens for touchscreens and other applicable tools. To use the screen it is necessary to contact the screen and apply a light force. M2052-EU Rev.: 1 Dover Fueling Solutions Page 9... - Page 10 TCP/IP munication, and emails as well as HOST COMMUNICATION GSM modem for SMS service 1 Optional IFSF 1 Optional Case Plastic Protection IP40 Dimensions 265 x 190 x 95 mm M2052-EU Rev.: 1 Dover Fueling Solutions Page 10...
-
Page 11: Compatible Probes
Auxiliary equipment that can be used with the MAGLINK LX console include: Expansion cards, up to 32 relays and 0 inputs, up to 32 inputs and 0 relay, and a mixture of both in increments of 8. Local Printer M2052-EU Rev.: 1 Dover Fueling Solutions Page 11... -
Page 12: Correct Use
: Only use the serial ports for printer and PC connection with management programs that interface with the protocols given by Start Italiana S.r.l. Network cable : Only use the network cable connection for console configuration, and local network connections (Refer to the M2051-EU Configuration manual). M2052-EU Rev.: 1 Dover Fueling Solutions Page 12... -
Page 13: Section 5 Power On/Off
To de-energize the console, push the power button to the OFF position. NOTE: The Maglink-LX console uses an industrial grade SD card. Safe data storage is available if there is power loss. M2052-EU Rev.: 1 Dover Fueling Solutions Page 13... -
Page 14: Section 6 Product Labels
Name and address of the manufacturer Equipment Type (BRA-SIP, or BRA-2SIP) ATEX Reference number of the certificate ATEX Marking: Ex II (1) G [Exia] IIB FISCO power supply UM=250 V [Exia] IIB Serial number Electrical data M2052-EU Rev.: 1 Dover Fueling Solutions Page 14... -
Page 15: Section 7 Graphical User Interface
Comp. prod Compensated product volume temperature (at 15° C or 20° C: refer to the configuration) Water Current water volume Ullage Empty space calculated from the safe working capacity (refer to the configuration) Capacity The total capacity of the tank (refer to the strapping table). M2052-EU Rev.: 1 Dover Fueling Solutions Page 15... -
Page 16: Status Icons
The temperature setting that is used for volume compensation (refer to the con- Compensated figuration). 7.1.1 Status Icons Status OK (Green) No Alarm The "Traffic Light" is green. There are no Alarms. The NO ALARM button is "grayed out." M2052-EU Rev.: 1 Dover Fueling Solutions Page 16... - Page 17 The alarms HH (High-High) and H (High) have been acknowledged The color in the related fields is changed to yellow. The ACKNOWLEDGED button is "grayed out." TIP: Move your finger down the display to see the next screen. M2052-EU Rev.: 1 Dover Fueling Solutions Page 17...
- Page 18 This screen shows the configured thresholds. There are four (4) action button selections: Diagnostic Email Inventory Print Inventory SMS Inventory TIP: Move your finger down the display to see more tank settings and the Strapping table. M2052-EU Rev.: 1 Dover Fueling Solutions Page 18...
-
Page 19: Main Menu
Tanks or Sensors (move the Sensor slider to the right to see the Sensor status). The icons will show in green if there are no alarms. If a tank or sensor is in alarm, its icon will show in red. M2052-EU Rev.: 1 Dover Fueling Solutions Page 19... -
Page 20: Calendar
Select this icon to show leak tests. Use the radio buttons along the right side of the calendar to select the applicable tanks. Push a date box to see information for the events on that date. 7.5 Notifications M2052-EU Rev.: 1 Dover Fueling Solutions Page 20... -
Page 21: History
Do software updates through the use of a USB thumb drive. The user must: Get the update file “lx4_new.zip” from Dover Fueling Solutions. Copy it onto a USB thumb drive. Put the thumb drive into the USB port on the console. -
Page 22: Shifts
"Shifts" screen will come into view. The shifts from the last three days will show. Select the Close shift button to manually close a shift. Select the Last shift button to send the last shift information to the connected printer. M2052-EU Rev.: 1 Dover Fueling Solutions Page 22... -
Page 23: Reports
The sales report shows the daily tank sales for the last seven days 7.9.2 Shift Report The shift report shows a full report of each shift for the last seven days. The report shows the deliveries and tank sales that occurred during the shift. M2052-EU Rev.: 1 Dover Fueling Solutions Page 23... -
Page 24: Delivery Report
The Leakage report shows all of the leak test results for the last seven days. 7.9.5 History The History report shows the inventory data of each tank. The console stores the inventory of every tank, for every minute. M2052-EU Rev.: 1 Dover Fueling Solutions Page 24... -
Page 25: System/Alarms
7.10.1 System Configuration Push the System icon on the Configuration Menu and the "Network Settings" screen will come into view. Select a parameter to change. A keypad will come into view. M2052-EU Rev.: 1 Dover Fueling Solutions Page 25... - Page 26 "Protocol Settings" screen. You can make changes to the Serial and TCP/IP port parameters in this screen (see the image below). Exit Configuration menu Push the button to navigate from this screen to go back to the M2052-EU Rev.: 1 Dover Fueling Solutions Page 26...
- Page 27 Dover Fueling Solutions Technical Support personnel. If access to the Internet is not available, the user must give Dover Fueling Solutions Technical Support personnel the applicable data related to the console so a debugging procedure can be done.
- Page 28 Revisions - M2052-EU Revision # Effective Software Version Key Changes 1785 8/19/2020 Initial Release 1836 12/3/2020 Adds Settings and Shifts NOTE: It is possible that older software versions might not support all features M2052-EU Rev.: 1 Dover Fueling Solutions Page 28...
