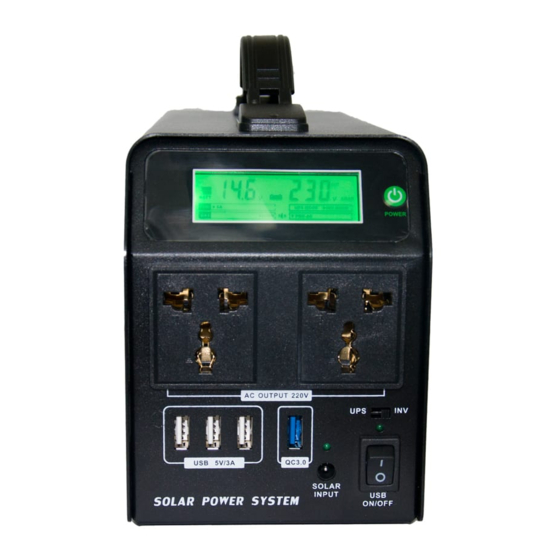

OmniPower SPS-600 User Manual

Attention
Please read all the information below before using your equipment in order to protect yourself and
others from injury and to prevent damage to your equipment.
Do not expose the SPS to fire or heat and operate or store in an environment below 50° C
Ÿ
Do not immerse the SPS into water. Store the product in a cool and dry environment.
Ÿ
Do not use the SPS in flammable or explosive environments (gasoline, gas, chemicals, mines,
Ÿ
etc.).
Ÿ Do not use SPS in corrosive environments.
The output of this product is standard alternating current. As with any household electrical outlet,
Ÿ
there is the potential of electric shock. Keep product away from children.
Do not disassemble, refit or repair this product.
Ÿ
If the SPS is to be placed into storage, the battery must be charged every six months.
Ÿ
Misuse of this product will void your warranty
Warning
The SPS produces a modified sinewave output.
Modified sinewave / squarewave inverters are not compatible with all electronic equipment.
Ÿ
Some charger equipment designed for charging rechargeable batteries is not suitable for
Ÿ
connecting to the SPS and will damage the unit. For example: rechargeable flashlights, razors,
searchlights.
DO NOT plug in battery chargers for cordless power tools if the charger carries a warning that
Ÿ
dangerous voltages are present at the battery terminals.
Ÿ Not suitable for inductive loads.
Never exceed the rated power output of the SPS.
Ÿ
If you are unsure about the loads that can be powered by the SPS, please contact your product
Ÿ
supplier.
Included in box
SPS Multifunctional Standby Power Supply
Ÿ
Ÿ Power cord
Ÿ User Manual

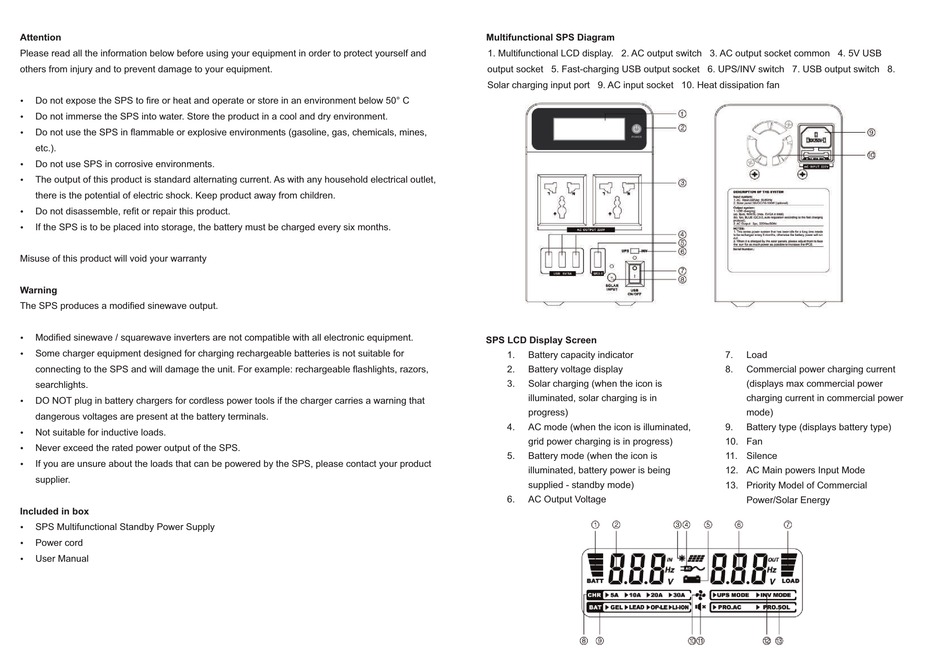

Multifunctional SPS Diagram
1. Multifunctional LCD display. 2. AC output switch 3. AC output socket common 4. 5V USB
output socket 5. Fast-charging USB output socket 6. UPS/INV switch 7. USB output switch 8.
Solar charging input port 9. AC input socket 10. Heat dissipation fan
SPS LCD Display Screen
1. Battery capacity indicator
2. Battery voltage display
3. Solar charging (when the icon is
illuminated, solar charging is in
progress)
4. AC mode (when the icon is illuminated,
grid power charging is in progress)
5. Battery mode (when the icon is
illuminated, battery power is being
supplied - standby mode)
6. AC Output Voltage
7. Load
8. Commercial power charging current
(displays max commercial power
charging current in commercial power
mode)
9. Battery type (displays battery type)
10. Fan
11. Silence
12. AC Main powers Input Mode
13. Priority Model of Commercial
Power/Solar Energy
